Cougar Common Section 6 - 29

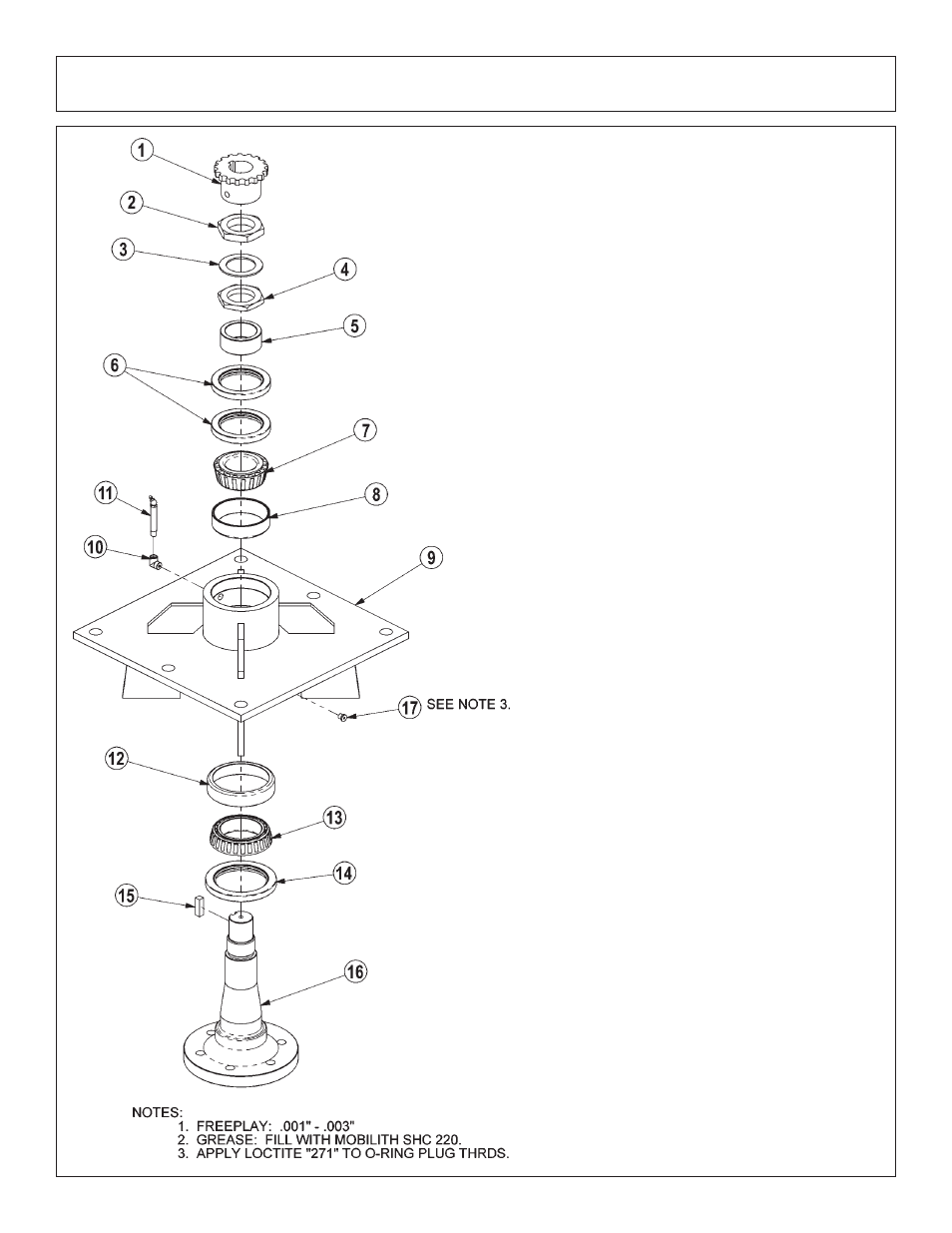

ROTARY MOWER SPINDLE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
6T1024H5 AVAIL SPINDLE ASSEMBLY COMPLETE
1 6T1031 1 SPROCKET
2 6T1016 1 BEARING LOCK NUT - THICK
3 22596 1 JAM WASHER
4 6T1015 1 BEARING ADJUSTMENT NUT - THIN
5 6T1014 1 BEARING ADJUSTMENT SLEEVE
6 6T1011 1 UPPER SEAL - SET OF 2
7 6T1012 1 BEARING CONE
8 6T1013 1 BEARING CUP
9 6T1010H 1 SPINDLE HOUSING
10 30570 1 FITTING STREET ELBOW
11 33990 1 GREASE ZERK
12 6T1013H 1 BEARING CUP
13 6T1012H 1 BEARING CONE
14 6T1011H 1 LOWER SEAL
15 6T1019 1 SPINDLE KEY
16 PT1018H-5 1 SPINDLE
17 06503064 1 O-RING PLUG, 1/8”
* 31771 AVAIL SPINDLE REBUILD KIT (INCLUDE
ITEMS 2 THRU 8 AND 12 THRU 15)
