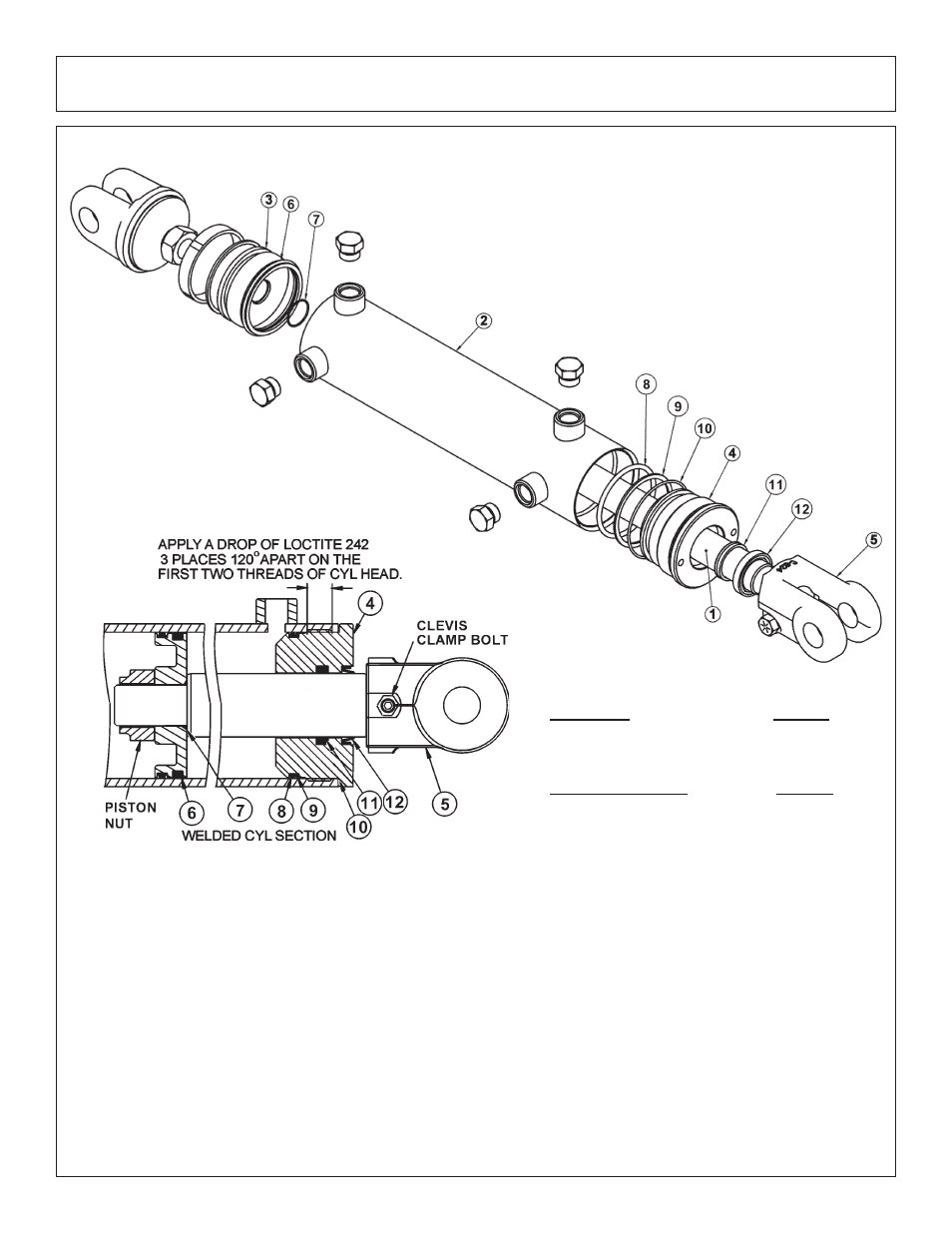

3” X 10” WELDED CYLINDER
PISTON NUT TORQUE
06501572 210 ± 5 FT. LB
CLEVIS CLAMP BOLT TORQUE
3/8-16 UNC 26 - 30 FT. LB
WARNING -
MECHANICAL FASTENERS MUST BE TORQUED TO
RECOMMENDED SPECIFICATIONS DURING REPAIR TO PREVENT PERSONAL
INJURY OR EQUIPMENT DAMAGE.
ITEM PART NO. QTY. DESCRIPTION
* 06501021 AVAIL HYDRAULIC CYLINDER COMPLETE
1 06501550 1 ROD
2 06501551 1 TUBE WELDMENT
3 06501552 1 PISTON
4 06501553 1 CYLINDER HEAD
5 06501554 1 CLEVIS
06501555 AVAIL SEAL REPAIR KIT (ITEM 6 THROUGH ITEM 12)
NOTE - ALL SEALS AND WEAR RINGS MUST BE PURCHASED IN COMPLETE
SEAL REPAIR KIT.
