Cougar Common Section 6 - 27

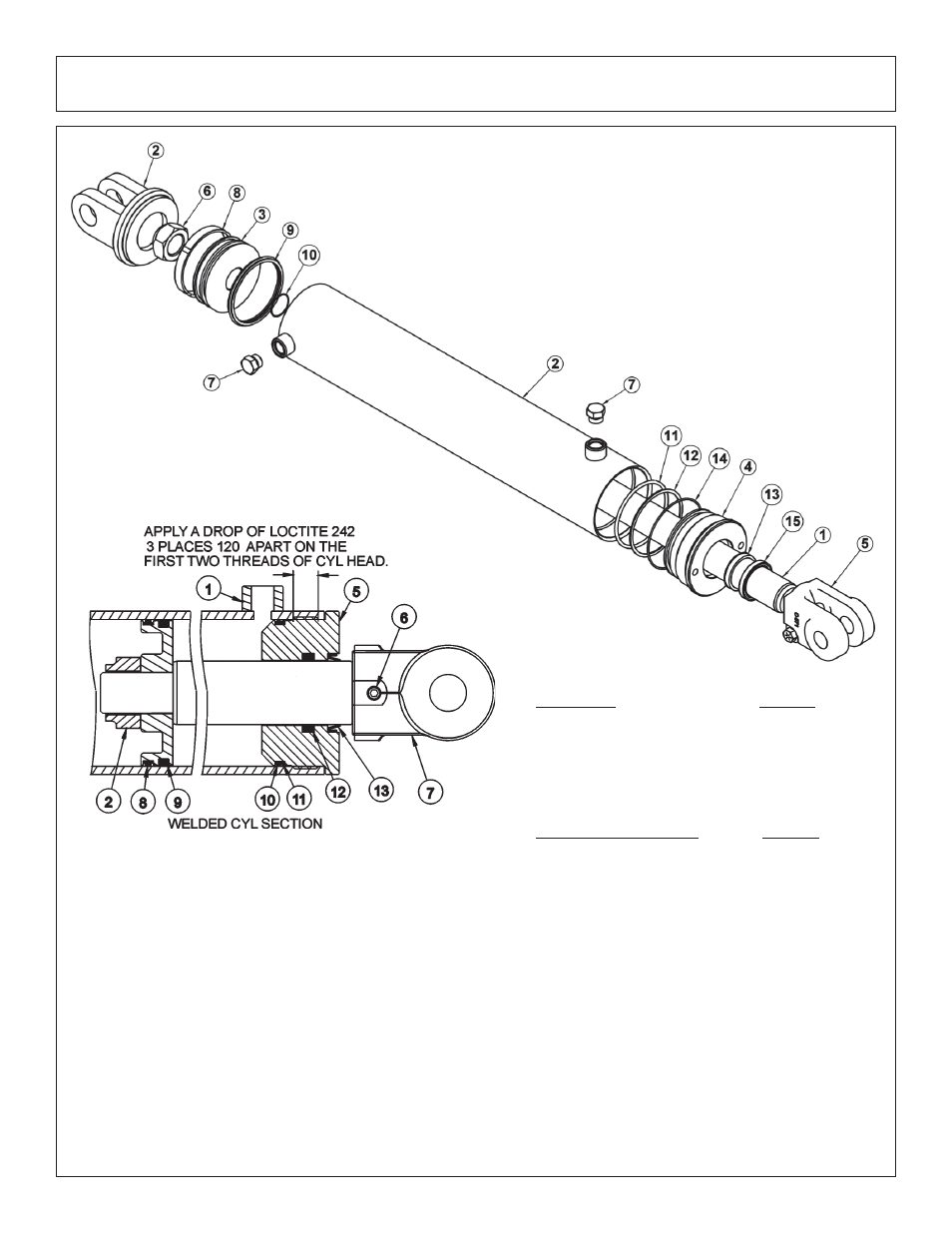

4” X 20” WELDED CYLINDER
10-2-02
PISTON NUT TORQUE
NUT 3/4-16 UNF LOCKNUT 130 FT. LB
NUT 1-14 UNS. LOCKNUT 300 FT. LB
NUT 1 1/8-12 UNF. LOCKNUT 350 FT. LB
NUT 1 1/4-12 UNF. LOCKNUT 525 FT. LB
NUT 1 1/2-12 UNF. LOCKNUT 750 FT. LB
ROD CLEVIS SET SCREW TORQUE
3/8-16 UNC 20 FT. LB
WARNING -
MECHANICAL FASTENERS MUST BE TORQUED TO
RECOMMENDED SPECIFICATIONS DURING REPAIR TO PREVENT PERSONAL
INJURY OR EQUIPMENT DAMAGE.
ITEM PART NO. QTY. DESCRIPTION
* 06501022 AVAIL HYDRAULIC CYLINDER COMPLETE
1 06501556 1 ROD
2 06501557 1 TUBE WELDMENT
3 06501558 1 PISTON
4 06501559 1 CYLINDER HEAD
5 6T0172 1 CLEVIS
06501560 AVAIL SEAL REPAIR KIT
NOTE - ALL SEALS AND WEAR RINGS MUST BE PURCHASED IN COMPLETE
SEAL REPAIR KIT.
