Tiger Products Co., Ltd COUGAR BOOM 7X30 - Manual (Page 122)

JD 7X30 COUGAR Parts Section 5-20

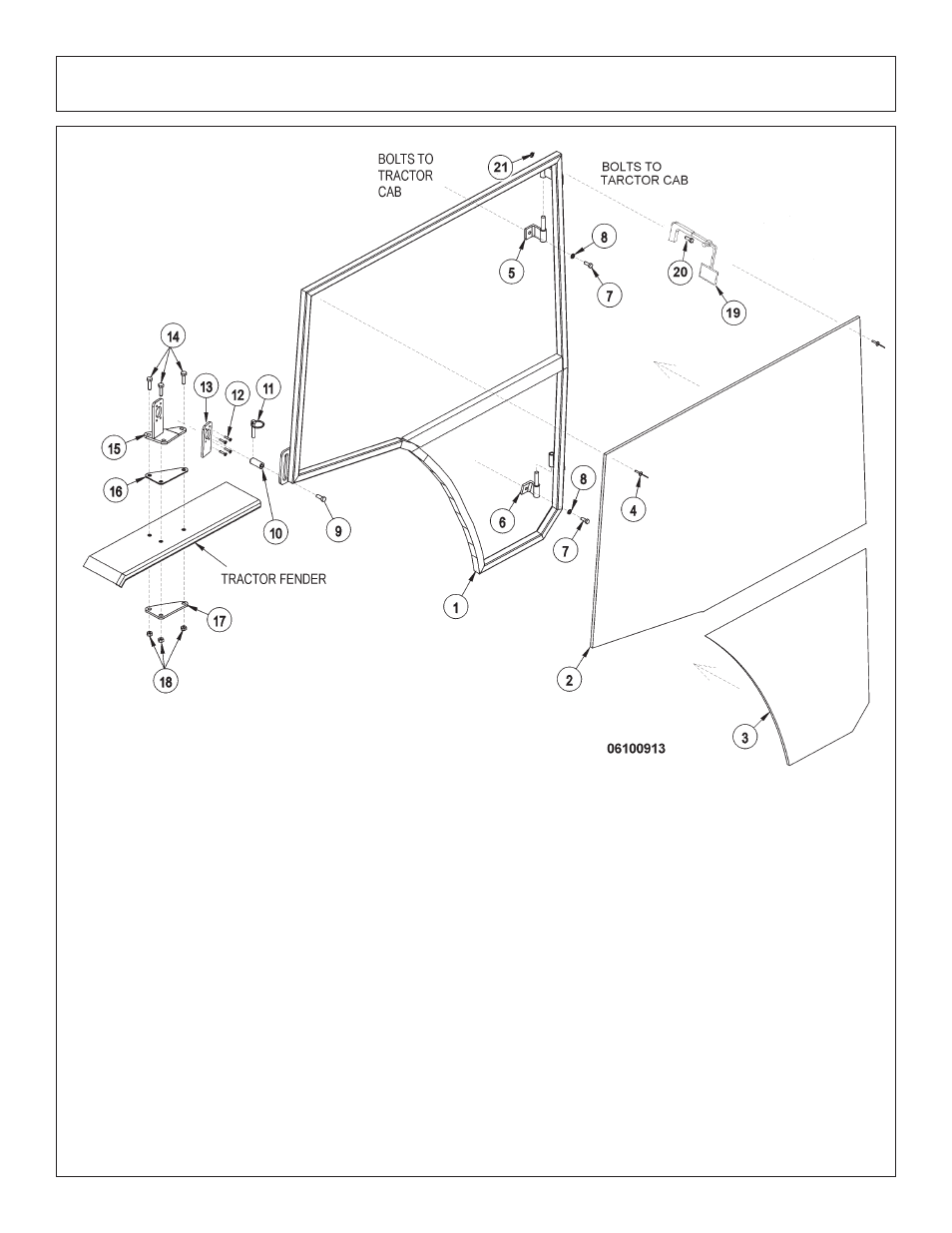

BOOM POLYCARBONATE CAB SAFETY WINDOW KIT
ITEM PART NO. QTY. DESCRIPTION
34625 AVAIL FRAME AND WINDOW ASY
1 34619 1 WINDOW FRAME
2 28900A 1 LEXAN WINDOW
3 28901B 1 LEXAN WINDOW
4 6T3954 25 POP RIVET
5 28903A 1 HINGE - UPPER
6 28907A06 1 HINGE - LOWER
7 27508 2 CAPSCREW 8MM X 20MM
8 6T2619 2 LOCKWASHER 8MM
9 21630 1 CAPSCREW 3/8” X 1” NC
10 33583 1 PIN SAFETY SCREEN
11 RD1032 1 LYNCH PIN 1/4” X 2”
12 24889 4 MACHINE SCREW 10-32
13 06400005 1 GROMMET SAFETY SCREEN
14 21632 3 CAPSCREW 3/8” X 1 1/2”
15 06330000 1 SAFETY SCREEN LATCH
16 34270 1 PAD SAFETY SCREEN
17 34271 1 FENDER PLATE
18 21627 4 NYLOCK NUT 3/8”
19 AL77484 1 MIRROR BRKT, RH
20 21585 2 BOLTS 5/16”
21 21577 2 NYLOCK NUT 5/16”
