Tiger Products Co., Ltd COUGAR BOOM 7X30 - Manual (Page 144)

Cougar Common Section 6 - 14

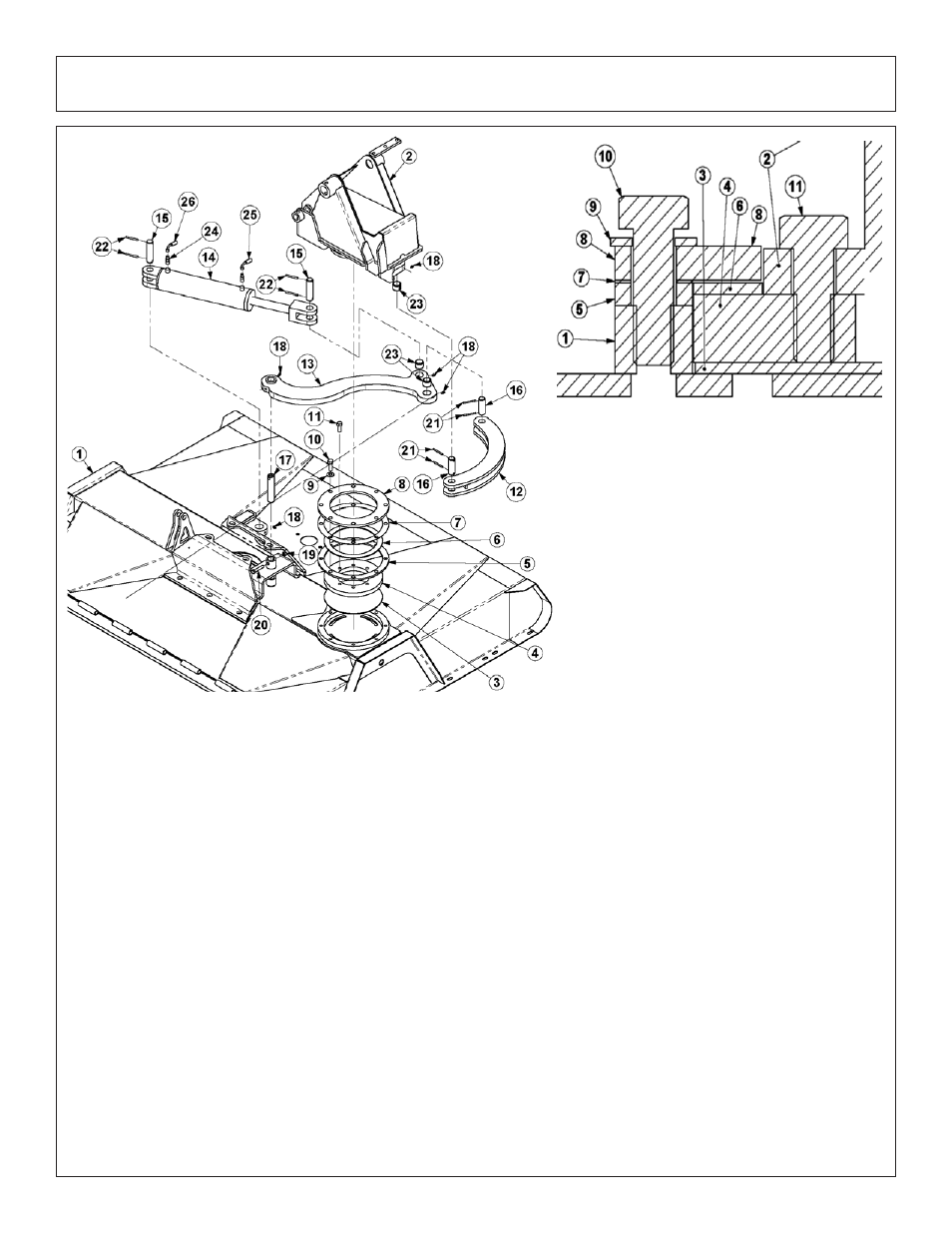

60” ROTARY MOWER TREE ASSEMBLY
ITEM P/N QTY. DESCRIPTION
1 06320160 1 DECK,TRB60,ROT,CPLT
2 06320163 1 TREE,TRB60,ROT
3 06497010 1 PAD,UHMW,06320163
4 06401250 1 RING,CAPTURE,06320163
5 06401251 1 RING,BOLT,06320164
6 06497011 1 RING,UHMW,06320163
7 06401253 1 RING,SHIM,06320164
8 06401252 1 RING,BOLT,06320164
9 06533004 16 FLAT WASHER,1/2,SAE,GR 8
10 6T2279 8 CAPSCREW, 1/2 X 1 1/2,NC,GR8
11 21730 8 CAPSCREW, 1/2 X 1 1/4,NC,GR8
12 06320164 1 LINKAGE,1,06320163
13 06741071 1 LINKAGE,2,06320163,ASSY
14 06501021 1 CYLINDER,3x10,2.0
15 06420014 2 PIN,1.00x3.84,W/.22 HOLES,NITRIDE
16 06420130 2 PIN,1.00.2.89,W/.19 HOLES
17 35191 1 PIN,SWIVEL,1x5,TRUCKAT
18 6T3207 5 GREASE ZERK,1/4"
19 21627 1 NYLOCK NUT,3/8",NC
20 21634 1 CAPSCREW, 3/8 x 2,NC
21 06537021 4 ROLL PIN, 5MM x 50MM
22 TB1023 4 ROLLPIN,7/32" X 2"
23 TB3010 1 BUSHING,1
24 33271 2 ADAPTER,1/2MORx3/8MJ
25 06500480 1 HOSE,#4x107
26 06500481 1 HOSE,#4x97
