Memory Installation Procedure
Follow these instructions to install memory modules into the S8236.
1.

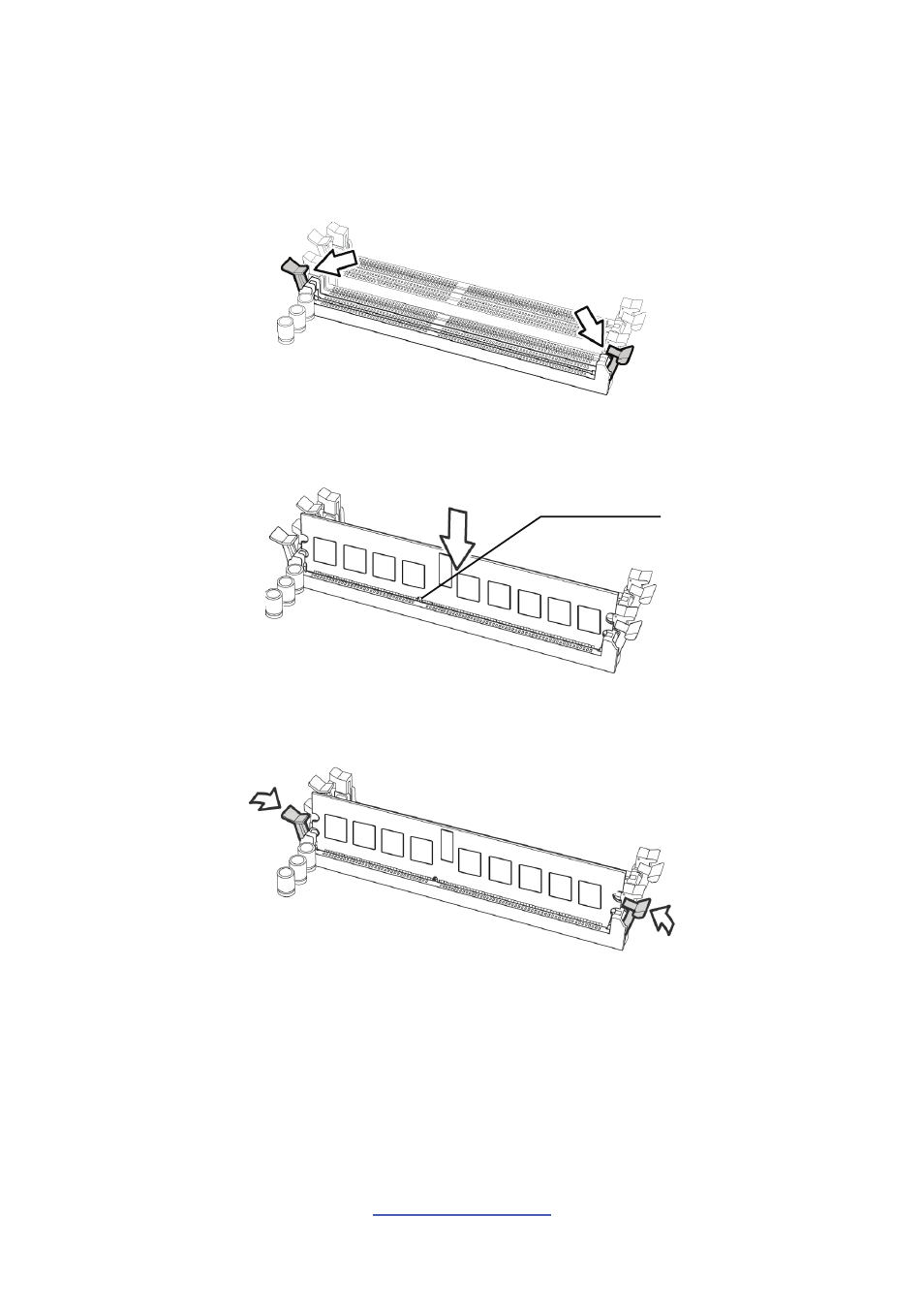

Press the locking levers in the direction shown in the following illustration.
2.
Align the memory module with the socket. The memory module is keyed to fit
only one way in the socket.
3.
Seat the module firmly into the socket by gently pressing down until it sits
flush with the socket. The locking levers pop up into place.
KEY SLOT
