2.7 Installing the Memory
Before installing memory, ensure that the memory you have is compatible with the
motherboard and processor. Check the TYAN Web site at
http://www.tyan.com
for
details of the type of memory recommended for your motherboard.

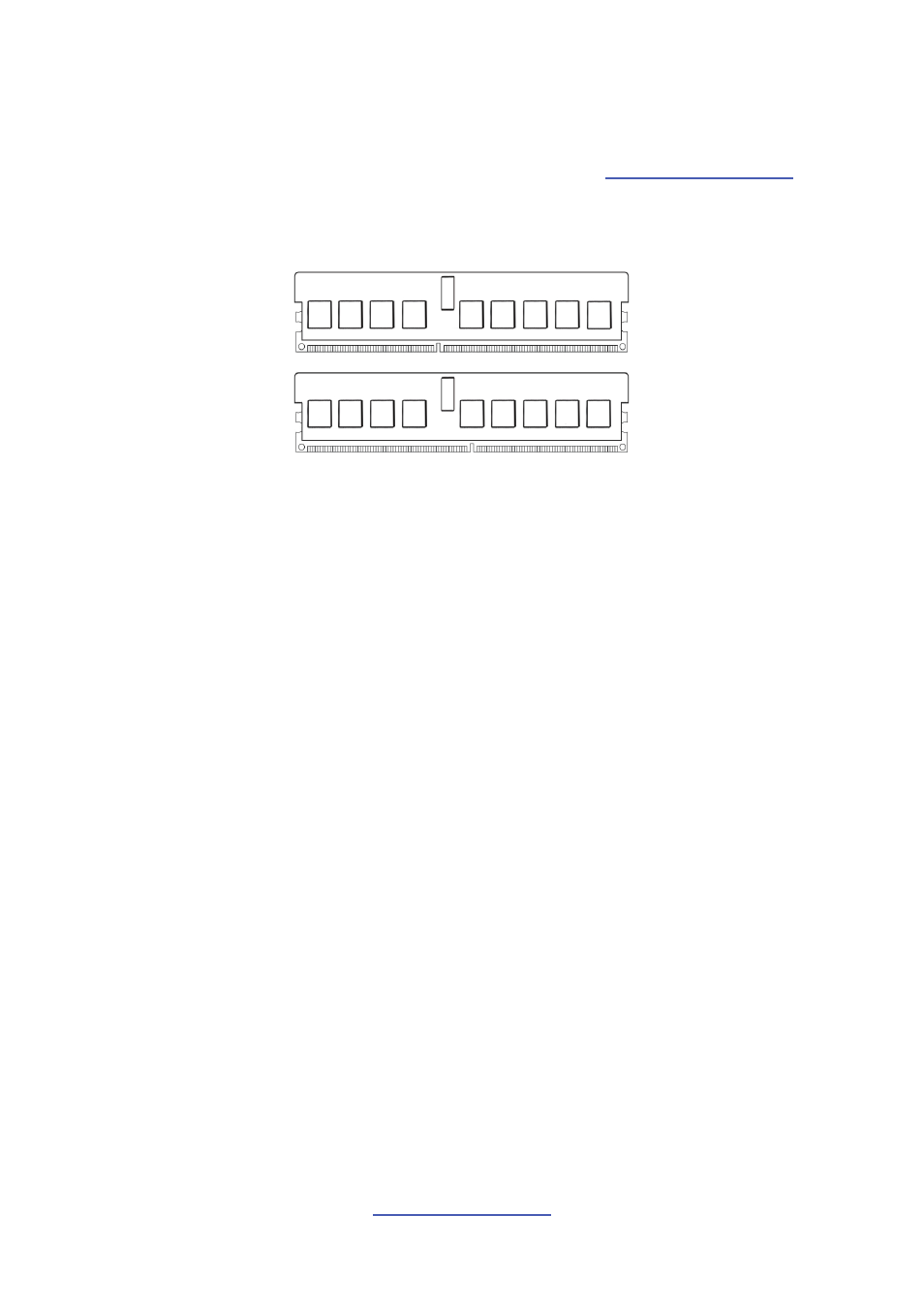

The following diagram shows common types of DDR3 memory modules.
Supports up to 256GB of R-DIMM DDR3 and Low Voltage (LV) R-DIMM
DDR3, or 64GB of U-DIMM DDR3, at 800,1066 or 1333MHz speeds
All installed memory will automatically be detected and no jumpers or settings
need changing
All memory must be of the
same type and density
Always populate the memory starting from CPU0_DIMMA1 first
