TurboChef Technologies High h Batch User Manual
Page 54
36
T H E C O N T R O L S Y S T E M

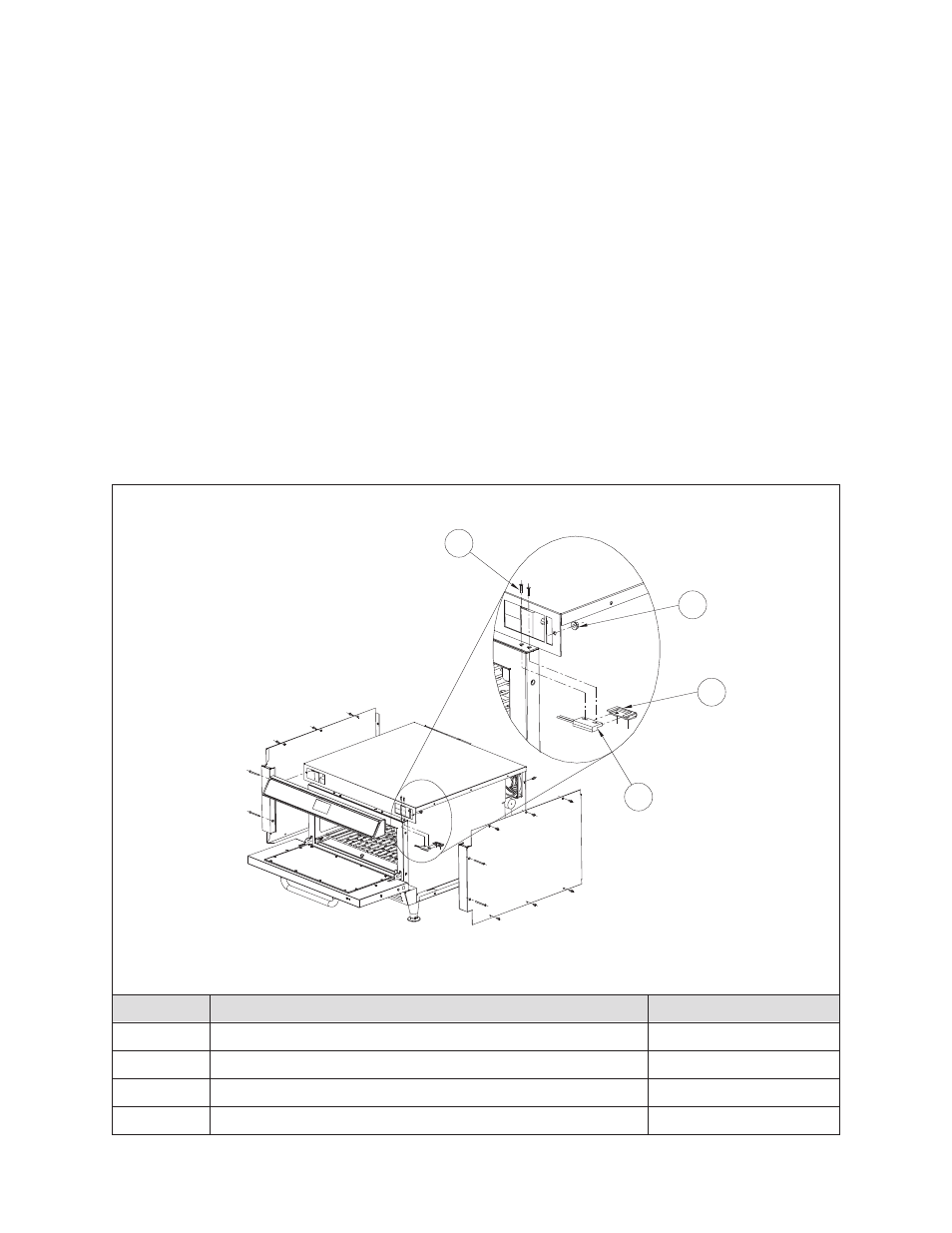

Door Switch (Figure 43)
The Door Switch is a sensor that detects the Door
Actuator and determines whether the door is open
or closed.
To replace a defective Door Switch:
1. Ensure “Cool Down” process is completed (“Cool
Down” message will disappear upon completion)
and unplug the oven.
2. Remove both side panels and Display Panel.
3. At the I/O Control Board, disconnect Wiring
Harness that routes to Door Switch. (See page
61 for schematic.)
4. Replace defective switch with P/N 102788.
NOTE: Retain mounting bracket for use with
new switch.
5. Reconnect wiring to I/O Control Board.
6. Reattach Display Panel and side panels.
N U M B E R
PA R T PA R T
N U M B E R
20
Screw – Door Switch/Actuator (x2)
101421
21
Nut – Display Panel (x2)
100903
22
Door Switch/Actuator Mounting Bracket
HHB-8086
23
Door Switch
102788
: Replacing the Door Switch
20
21
22
23
NOTE: Some oven components have been removed for clarity.
