9
CPSMC0800-100 PointSystem ™ Chassis
slide-in-modules
Tech Support: 7am-6pm CST (GMT -6:00) 1-800-260-1312 International: 00-1-952-941-7600
2.2 Management Modules
Optional network management is provided by SNMP software embedded in
Transition Networks
PointSystem ™ Management Module(s) that can be installed in
the CPSMC0800-100 8-Slot chassis.
Transition Networks provides two such modules:
• CPSMM-120 Single-Slot Master Management Module.
• CPSMM-200 Dual-Slot Master Management Module.
Along with an additional expansion module:
• CPSMM-210 Single Slot Expansion Management Module

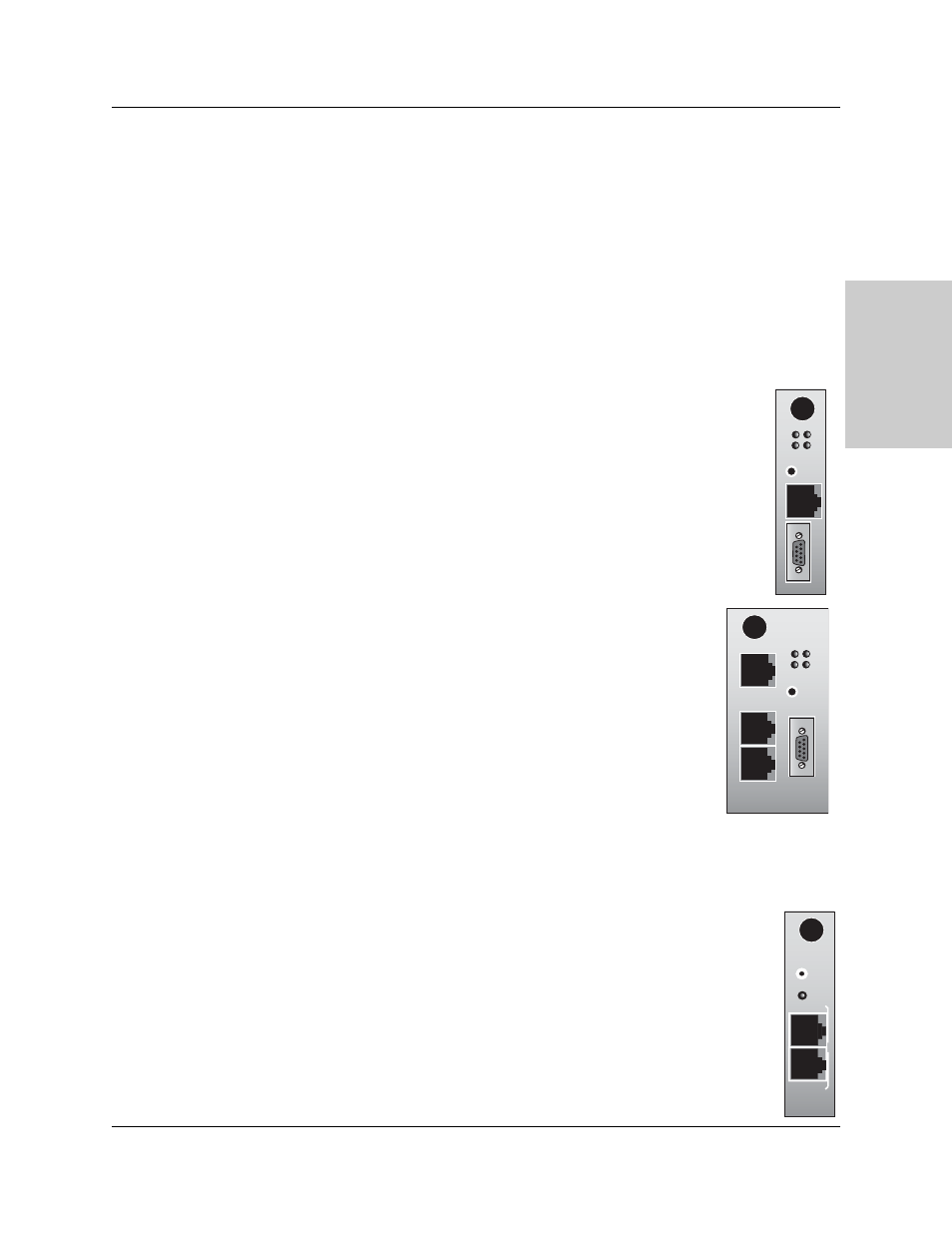

2.2.1 Three Types of Managment Modules
CPSMM-120 Single-Slot Master Managment Module
The optional CPSMM-120 Single-Slot Master Managment Module can
be installed to enable network managment of a single CPSMC0800-100
8-Slot chassis .
Refer to the CPSMM-120 User Guide for more information on the
CPSMM-120 Single-Slot Master Management Module.
CPSMM-200 Dual-Slot Master Management Module
The optional CPSMM-200 Dual-Slot Master Managment Module
can also be installed in the CPSMC0800-100 8-Slot chassis to
enable network managment.
This module has all of the features of the CPSMM-120 plus a pair
of cascade ports, which allow multiple PointSystem chassis to
be connected. See section 4.3 Cascade Option for details on
connecting multiple chassis.
Note also that this module requires two adjacent slots in the
CPSMC0800-100 8-Slot chassis for installation.
Refer to the CPSMM-200/-210 User Guide for more information on the CPSMM-200
Dual-Slot Master Management Module.
CPSMM-210 Single-Slot Expansion Management Module
The CPSMM-210 is used with the CPSMM-200 to connect up to eight (8)
PointSystem™chassis into one managable stack. See section 4.3 Cascade
Option for details.
Refer to the CPSMM-200/-210 User Guide for more information on the
CPSMM-210 Single-Slot Expansion Management Module.
10BASE-T
RX
TX
LNK
PWR
RESET
SERIAL
CPSMM120
10BASE-T
INPOR
T
CPSMM200
OUTPOR
T
12C
12C-1
TERM
INIT
RX
TX
LNK
PWR
RESET
DB-9
Pwr
RESET
12C
12C-1
TERM
INIT
CPSMM210
