20
CPSMC0800-100 PointSystem ™ Chassis
SNMP
Tech Support: M-F 7am-6pm CST (GMT -6:00) 1-800-260-1312 International: 00-1-952-941-7600
RJ-45 Ethernet™ Port
The RJ-45 Ethernet™ Port allows the network administrator to manage the
CPSMC1800-100 8-Slot chassis via a remote Network Management Station (NMS)
in one of two ways:
1. Using the Transition Networks FocalPoint™ graphical user interface.
2. Using a remote Telnet connection.

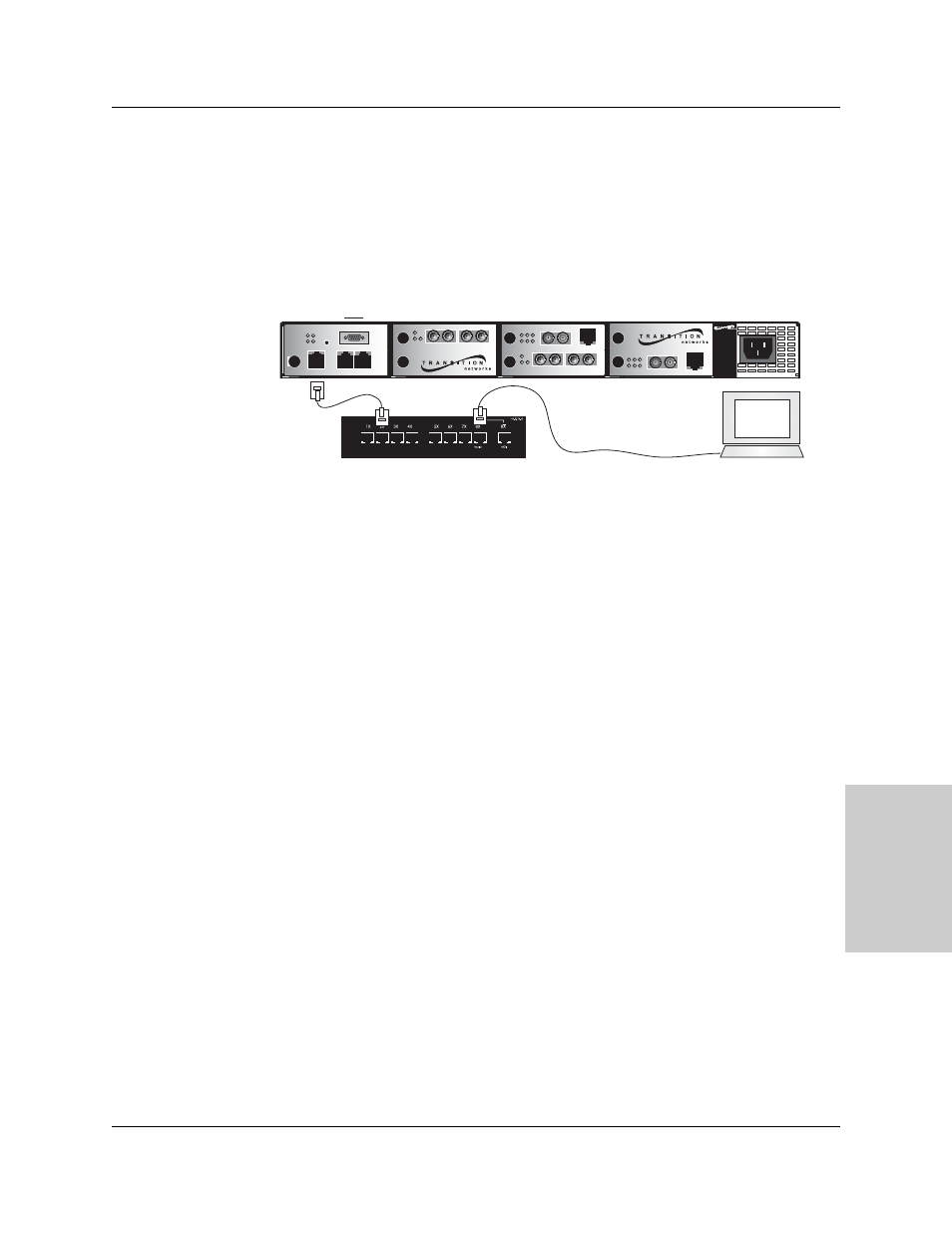

Use an RJ-45 network cable to attach a terminal (via a network hub or switch) to the
RJ-45 Ethernet™port on the Management Module as shown.
NOTE: To manage the PointSystem™ chassis via a remote NMS, both the RJ-45
Ethernet™ port and the NMS must be connected to a network with Internet accesi-
bility.
5.2 SNMP Software
The SNMP software is described in a separate manual available from Transition
Networks.
10BASE-T INPORT
MCCM10
MGMT
MASTER
OUTPORT
12C 12C-1 TERM INIT
RX TX
LNK PWR RESET
DB-9
CFETF1
10
SPD
PWR
FRX CRX
FLNK CLNK
10/100TX RX TX 10/100SX LKS
PWR
LKM Multimode Singlemode TX RX TX RX
CFETF1
10
SPD
PWR
FRX CRX
FLNK CLNK
10/100TX RX TX 10/100SX LKS
PWR
LKM Multimode Singlemode TX RX TX RX CPSMC-0800
8-Slot Chassis
Mpls, MN 55344 Mpls, MN 55344
Input Power: Input Power:
110-240 VAC 110-240 VAC
1.6A max. (60W max) 1.6A max. (60W max)
50/60 Hz 50/60 Hz
Network hub or switch connected
to the RJ-45 Ethernet port. Remote Telnet connection OR
Remote NMS with an SNMP application
