14
CPSMC0800-100 PointSystem ™ Chassis
chassis
4 CPSMC0800-100 Chassis
4.1 Installing the CPSMC0800-100 Chassis
The CPSMC0800-100 can be installed in a standard 19-inch rack or on a table,
shelf, or other stable surface.
4.1.1 Standard 19-inch Rack Installation
NOTE: The maximum recommended ambient temperature (Tmra) for the 8-Slot
chassis is 40°C. If the 8-Slot chassis is installed in a closed or mult-unit rack assem-
bly, the operating ambient temperature of the the rack environment may be greater
than room ambient. Consideration should be given to installing the 8-Slot chassis
in an environment compatible with the Tmra.
CAUTION: Installation of the chassis in a rack should be such that the amount of
air flow required for safe operation of the equipment is not compromised .

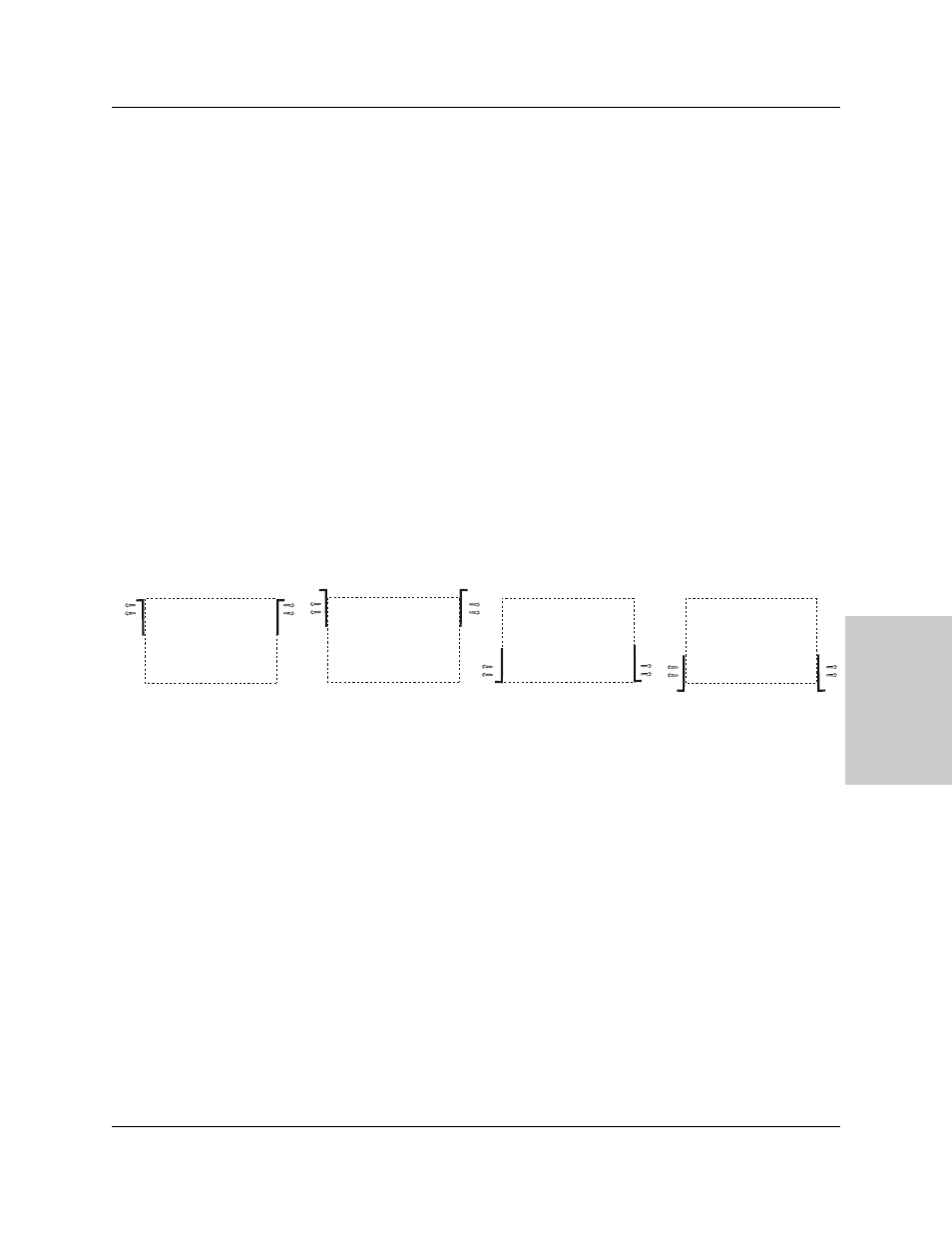

The 8-Slot chassis is designed so that the installation brackets can be installed to
align the chassis either
flush against the front or back edge of the rack or recessed
from the front or back edge of the rack.
WARNING: SELECT MOUNTING BRACKET LOCATIONS ON THE CHASSIS THAT
WILL KEEP THE CHASSIS BALANCED WHEN MOUNTED IN THE RACK. FAILURE
TO OBSERVE THIS WARNING COULD ALLOW THE CHASSIS TO FALL, RESULT-
ING IN EQUIPMENT DAMAGE AND/OR POSSIBLE INJURY TO PERSONNEL.
CAUTION: Consideration should be given to the connection of the chassis to the
supply circuit and the effect that overloading of the circuits might have on over-
current protection and supply wiring. Appropriate consideration of equipment
nameplates should be used when addressing this concern.
CAUTION: Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct con-
nections to the branch circuit (e.g., use of power strips).
Tech Support: 7am-6pm CST (GMT -6:00) 1-800-260-1312 International: 00-1-952-941-7600
Recessed Alignment
at back
Flush Alignment
at front
Recessed Alignment
at front
Flush Alignment
at back
