TDK Maxeta iFA Series - Manual (Page 4)

Data Sheet: Maxeta
TM
iFA Series
©2002-2006 TDK Innoveta Inc.
iFA 28V 600W Advance Datasheet 8/3/2006 ℡ (877) 498-0099
4/19
Pin Assignment:
PIN FUNCTION PIN FUNCTION PIN FUNCTION
1 ON/OFF (+) 7 Vout (-) 13 PWR GOOD
2 ON/OFF (-) 8 Vout (+) 14 Parallel Control
3 Vin (+) 9 Vout (+) 15 TRIM
4 Vin (-) 10 Vout (+) 16 SENSE (+)
5 Vout (-) 11 Not present 17 SENSE (-)
6 Vout (-) 12 AUX OUT 18
* Pin base material is copper. The maximum module weight is 250g (8.8 oz).

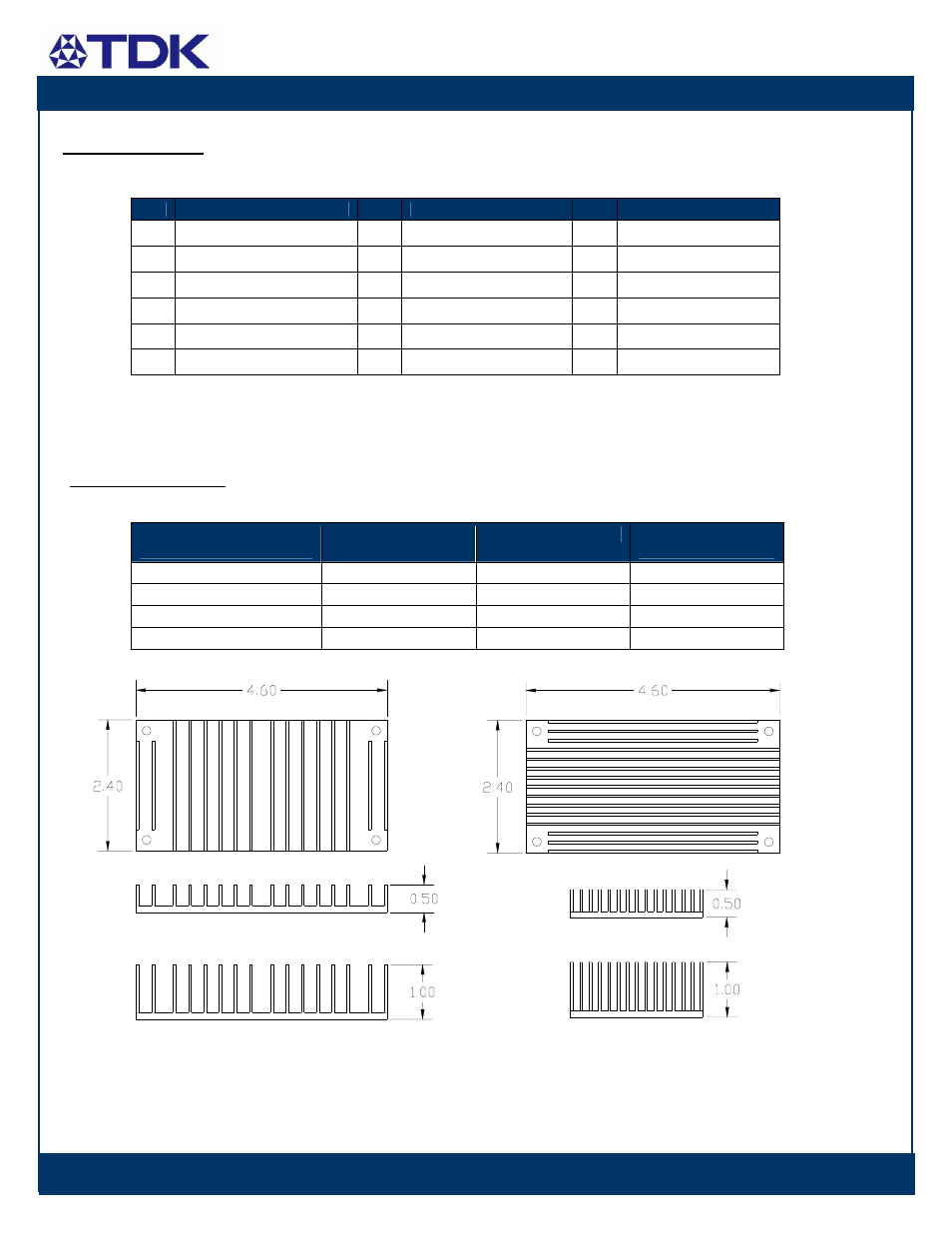

Heatsink Offering:
Innoveta
Part Number
Height Orientation Overall
Module Height
HS00016 0.50” Transverse 1.00”
HS00017 1.00” Transverse 1.50”
HS00020 0.50” Longitudinal 1.00”
HS00021 1.00” Longitudinal 1.50”
Transverse Heatsinks
Longitudinal Heatsinks
HS00016
HS00017 HS00021
HS00020
