Data Sheet: Maxeta
TM
iFA Series
©2002-2006 TDK Innoveta Inc.
iFA 28V 600W Advance Datasheet 8/3/2006 ℡ (877) 498-0099
10/19
Worst Orientation Airflow
Best
Orientation
Airflow IN
P
U
T
OU
TPUT
Thermal
Measurement
Location

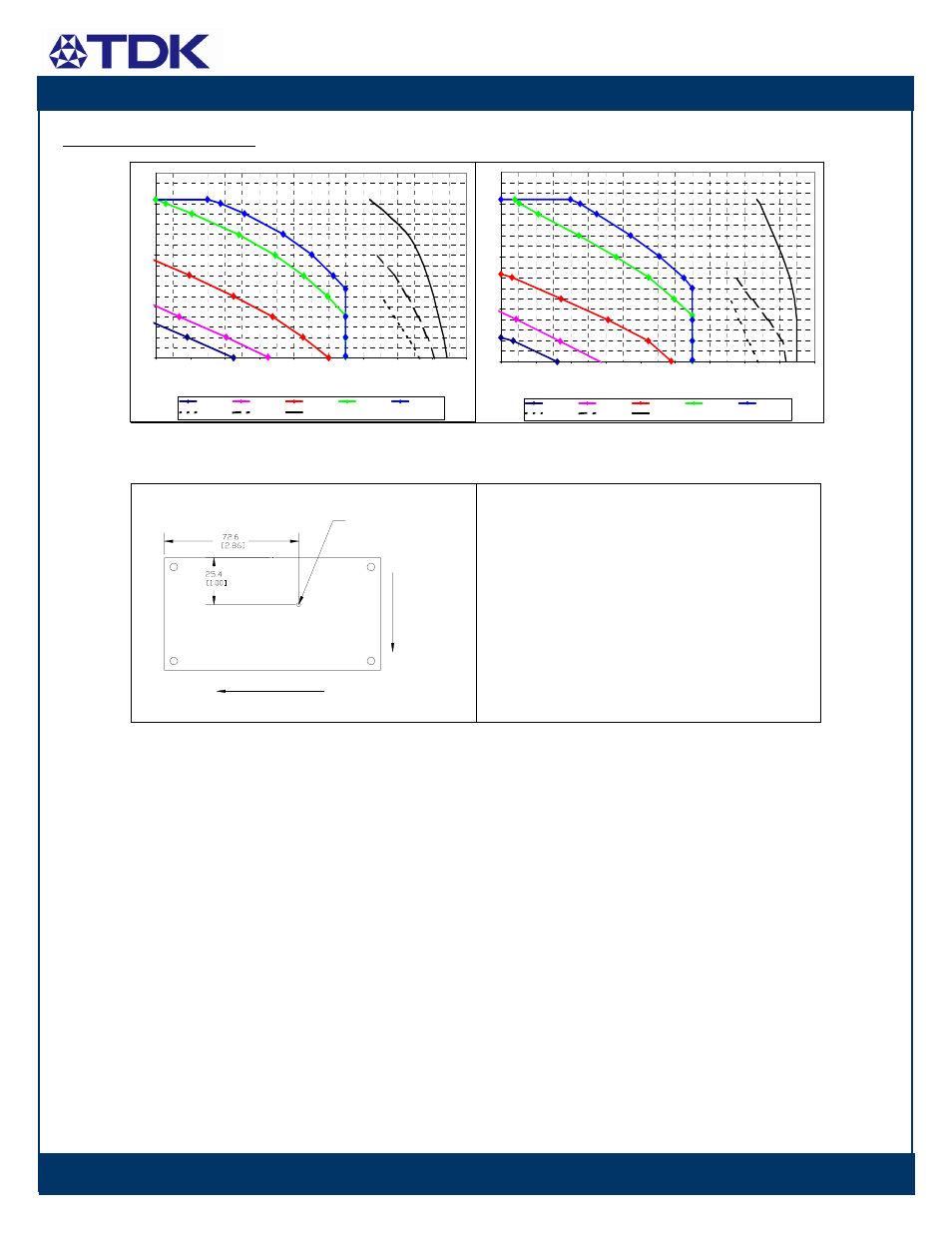

Thermal Performance: iFA48021A280V: 28V, 21.4A Output
Maximum output current vs. ambient temperature at
nominal input voltage for airflow rates natural convection
(0.3 m/s (60lfm) to 3.0m/s (600lfm)) with airflow from
Vout(+) pins to Vout(-) pins. Maximum output current vs. ambient temperature at
nominal input voltage for airflow rates natural convection
(0.3m/s (60lfm) to 3.0m/s (600lfm)) with airflow from Vout(-)
pins to Vout(+) pins.
Thermal measurement location – top view
The thermal curves provided and the examples given above are based upon measurements made in Innoveta’s
experimental test setup that is described in the Thermal Management section. Due to the large number of variables in
system design, Innoveta recommends that the user verify the module’s thermal performance in the end application. The
thermal measurement location (on the IMS board) should be thermal-coupled and monitored, and should not exceed the
temperature limit specified in the de-rating curve above
6
11
16
21
30 40 50 60 70 80 90 100 110 120
Temperature (C)
O
u
tp
u
t C
u
rr
en
t (A
)
NC 0.5m/s(100LFM) 1.0m/s(200LFM) 2.0m/s(400LFM) 3.0m/s(600LFM)
Max IMS<1.0m/s Max IMS=1.0m/s Max IMS>1.0m/s
6
11
16
21
30 40 50 60 70 80 90 100 110 120
Temperature (C)
Out
put
C
u
rr
e
nt
(
A
)
NC 0.5m/s(100LFM) 1.0m/s(200LFM) 2.0m/s(400LFM) 3.0m/s(600LFM)
Max IMS<1.0m/s Max IMS=1.0m/s Max IMS>1.0m/s
