Data sheet: maxeta, Ifa series, Mechanical specification – TDK Maxeta iFA Series User Manual
Page 3
Data Sheet: Maxeta
TM
iFA Series
©2002-2006 TDK Innoveta Inc.
iFA 28V 600W Advance Datasheet 8/3/2006
℡
(877) 498-0099
3/19

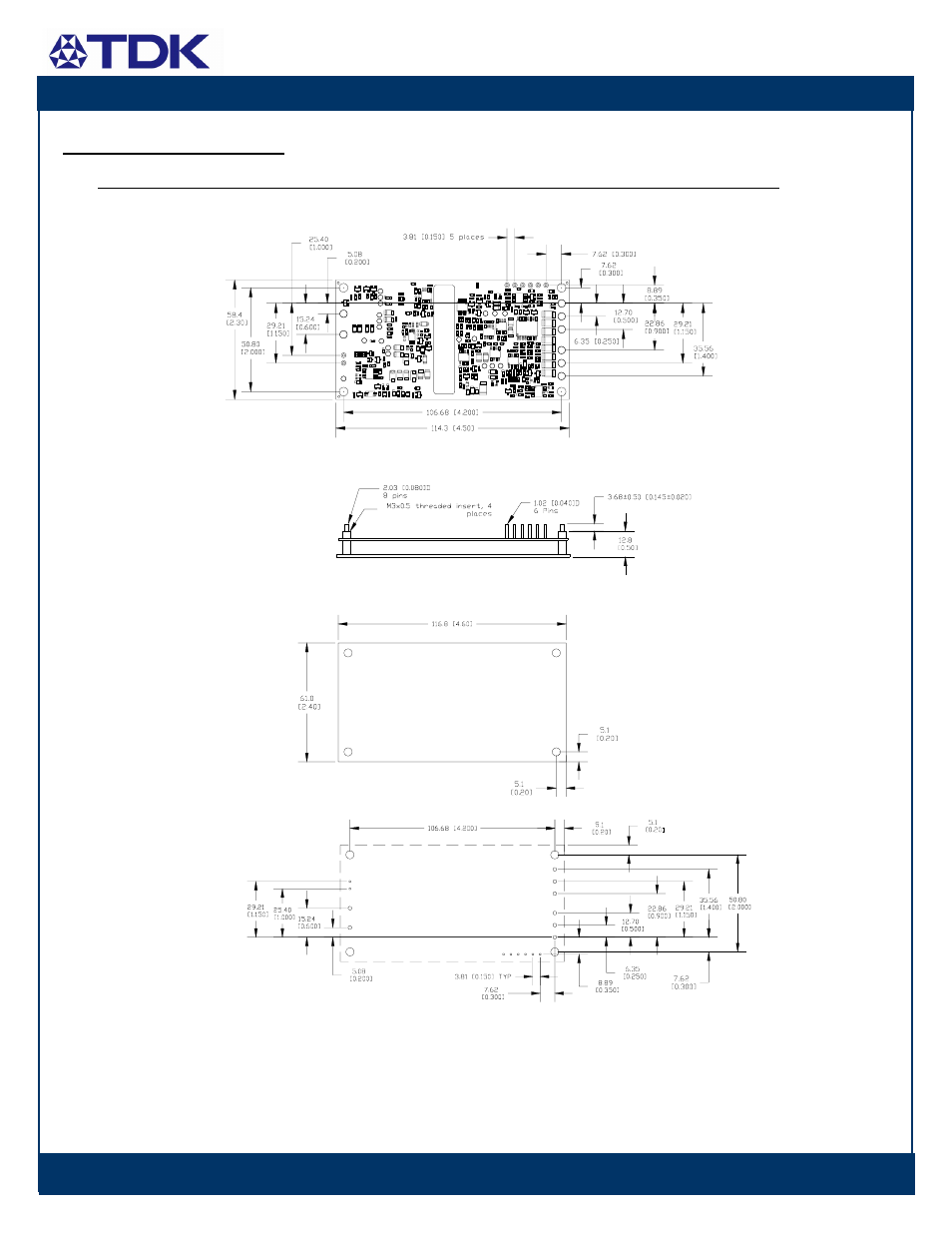

Mechanical Specification:
Unless otherwise specified, tolerances are: x.x ± 0.5 mm [x.xx ± 0.02 in.], x.xx +/- 0.25 mm [x.xxx +/- 0.010 in.]
1
2
3
5
6
7
8
9
10
12
4
13
14
15
16
17
Recommended hole pattern (top view)
