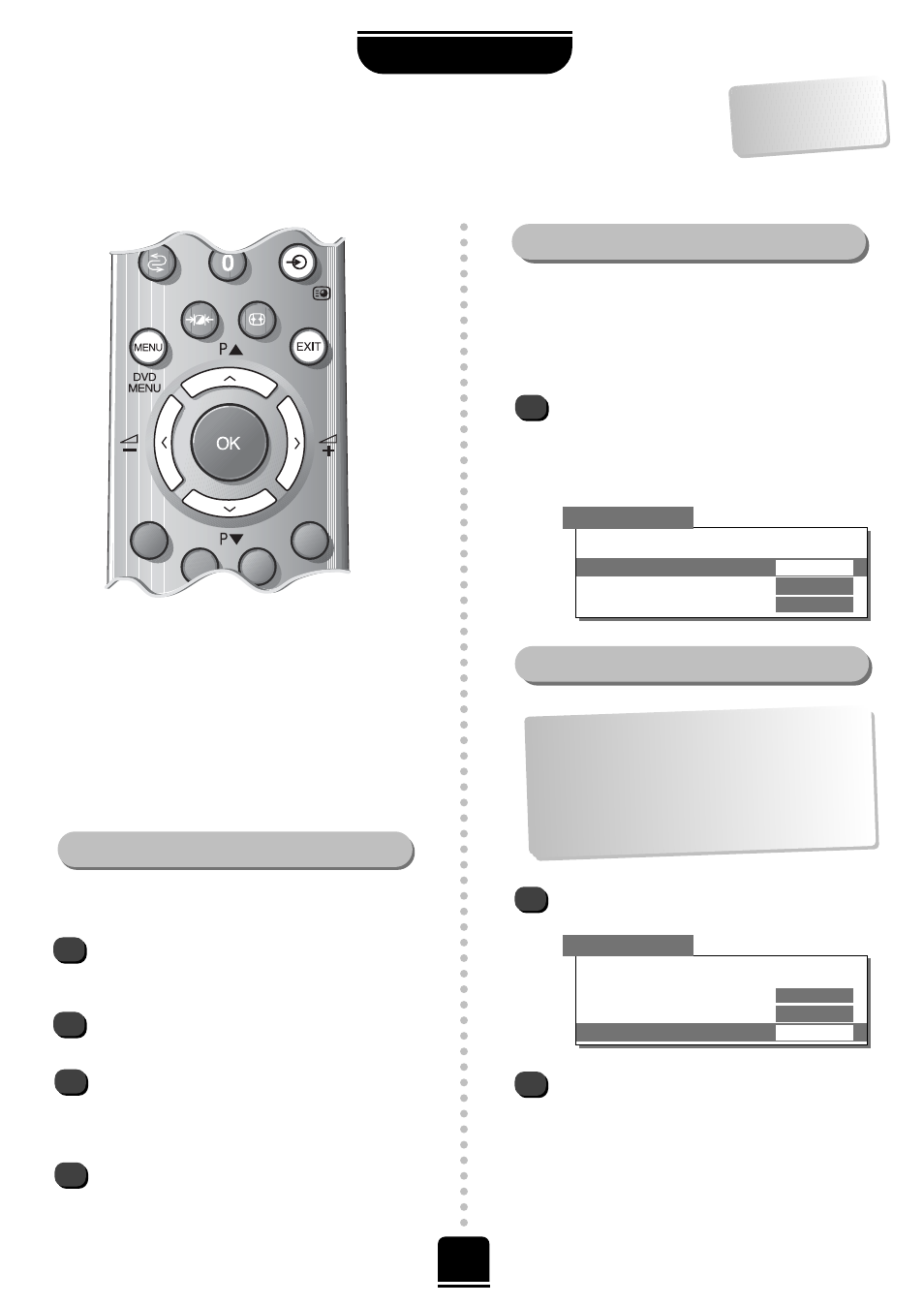

ADDITIONAL FEATURES

AV connections and input selection

Defining your INPUT and OUTPUT sockets so that your television recognises connected equipment.

Again, from the

Feature menu

select

connection

Using the S or R buttons change the

EXT2

output

option to:

MONITOR = The picture on screen
TV = The last television programme selection.
EXT 1 = The picture from equipment connected
to Scart 1.
EXT 3 = The picture from equipment connected
to Scart 3 or the side input sockets.

Selecting the OUTPUT signal for Scart 2

Selecting the INPUT signal

This feature allows you to specify the type of signal going
into Scarts 2 (EXT 2) or 3 (EXT 3) on the back of the
television and the sockets on the side (which are also
EXT 3). Please refer to the manufacturers instructions for
the connected equipment.

From the

Feature menu

select

AV connection

and

with the S or R button select either AV or S-VIDEO
as the required

input

for

EXT2

and

EXT3

If the colour is missing try the alternative setting.

This feature enables you to select the source to

output

from Scart 2. e.g. If you connect a stereo decoder to

Scart 1 and a stereo video recorder to Scart 2, and

select EXT 1 as the

EXT2

output (i.e. you will output

the signal received through Scart 1 directly out to

Scart 2), you will be able to record the stereo decoder

transmission in stereo.

Most video recorders and decoders send a signal
through the Scart lead to switch the TV to the correct
Input socket. Alternatively press the external source
selection button

repeatedly until you see the picture

from your equipment. You must use this button to view
equipment connected using the COMPONENT VIDEO
INPUT (EXT 4).

e.g.

EXT2S

, indicates the input is set for an

S-Video signal.

…Please see page 20

for a clear view of the

back connection

recommendations…

Press the

button to bring up EXT 1 on the

screen. This will display the signal coming in
through Scart 1.

Press the

button again to select the equipment

connected to Scart 2 (EXT 2).

And press the

button again for EXT 3

(Scart 3,

, on the back of the TV or

on the side of the TV) and again for EXT 4
(Component Video Input).

To return to TV mode simply press one of the
numbered buttons on the remote control.
To view the external equipment once again,
simply press the

button until you see your

external source.

Input Selection

Using the Input Selection if the TV does not switch over

automatically.

AV connection

▼

Back

EXT2 input

EXT3 input

S-VIDEO

EXT2 output

EXT 1

AV connection

▼

Back
EXT2 input

EXT3 input

S-VIDEO

EXT2 output

EXT 1
