Using The TPA005D02 Class D EVM Stand-Alone

3-28

Details

3.4

Using The TPA005D02 Class D EVM Stand-Alone

Using the TPA005D02 Class D Stereo Audio Power Amplifier Evaluation
Module stand-alone is much the same as using it with the platform. The same
4.5-V to 5.5-V power supply range and the isolated OUT+ and OUT– lines for
BTL operation requirement exists.

Power can be connected to either V

DD

pin on the module. The audio input

signal should be connected to the RIN+/RIN– and LIN+/LIN– module pins for
differential signals as shown below. Single-ended input signals are applied to
RIN+ and LIN+, while RIN– and LIN– are connected to ground.

Note that the mute signal applied to the EVM mute pin must be able to supply
enough current to overcome the pullup resistor on the module (100 k

).

Do not drive the module inputs unless speaker loads are connected to the
module outputs or the TPA005D02 amplifier IC will go into thermal shutdown.

3.4.1

TPA005D02 Class D EVM Connected for BTL Output

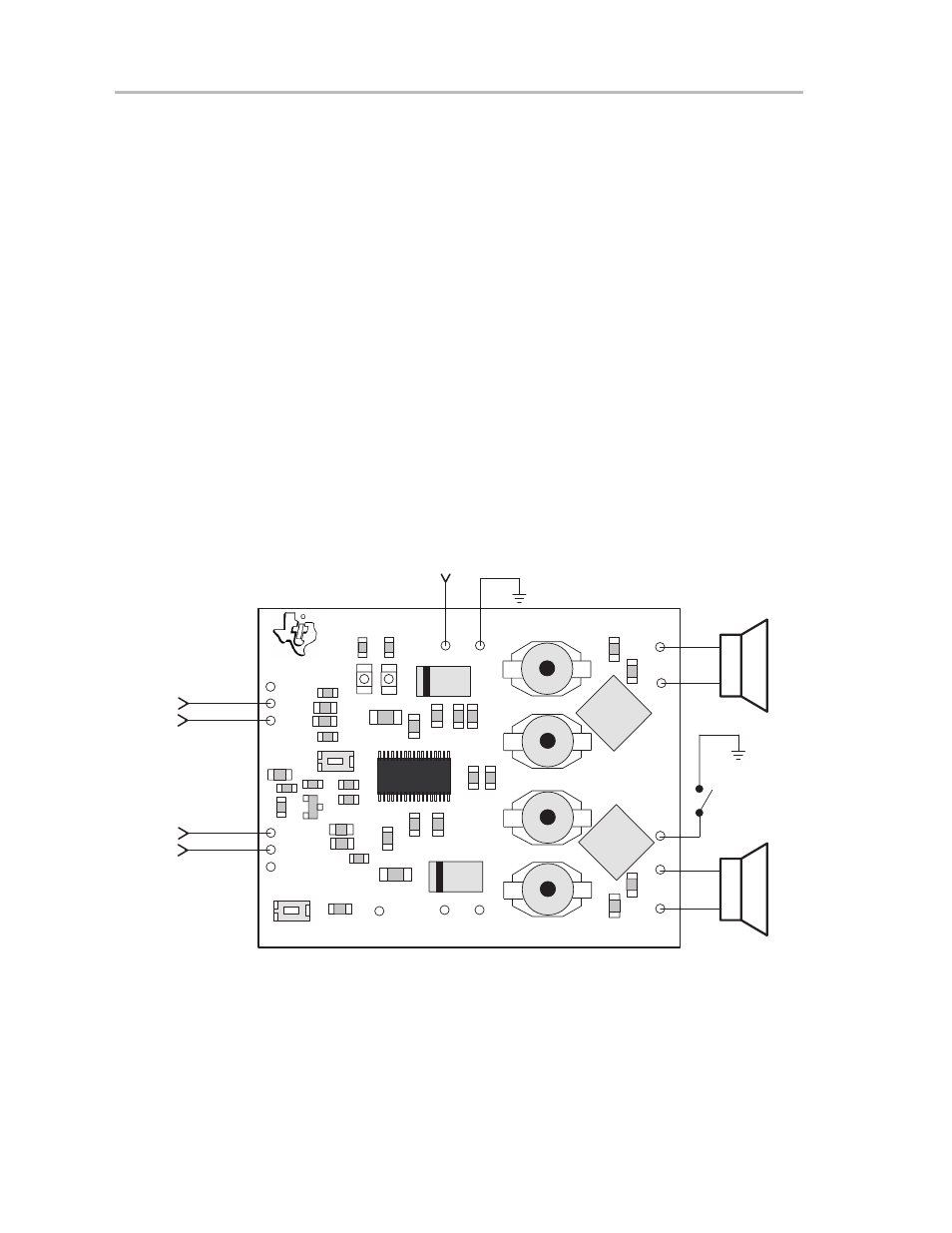

Figure 3–21. TPA005D02 Class D EVM Connected for Stereo BTL Output
