Using The TPA005D02 Class D EVM With the Plug-N-Play Platform
3-24 Details
3.3.3 Signal Routing
Signal flow on the platform is controlled by two signal routing switches, as
shown in Figure 3 – 18.

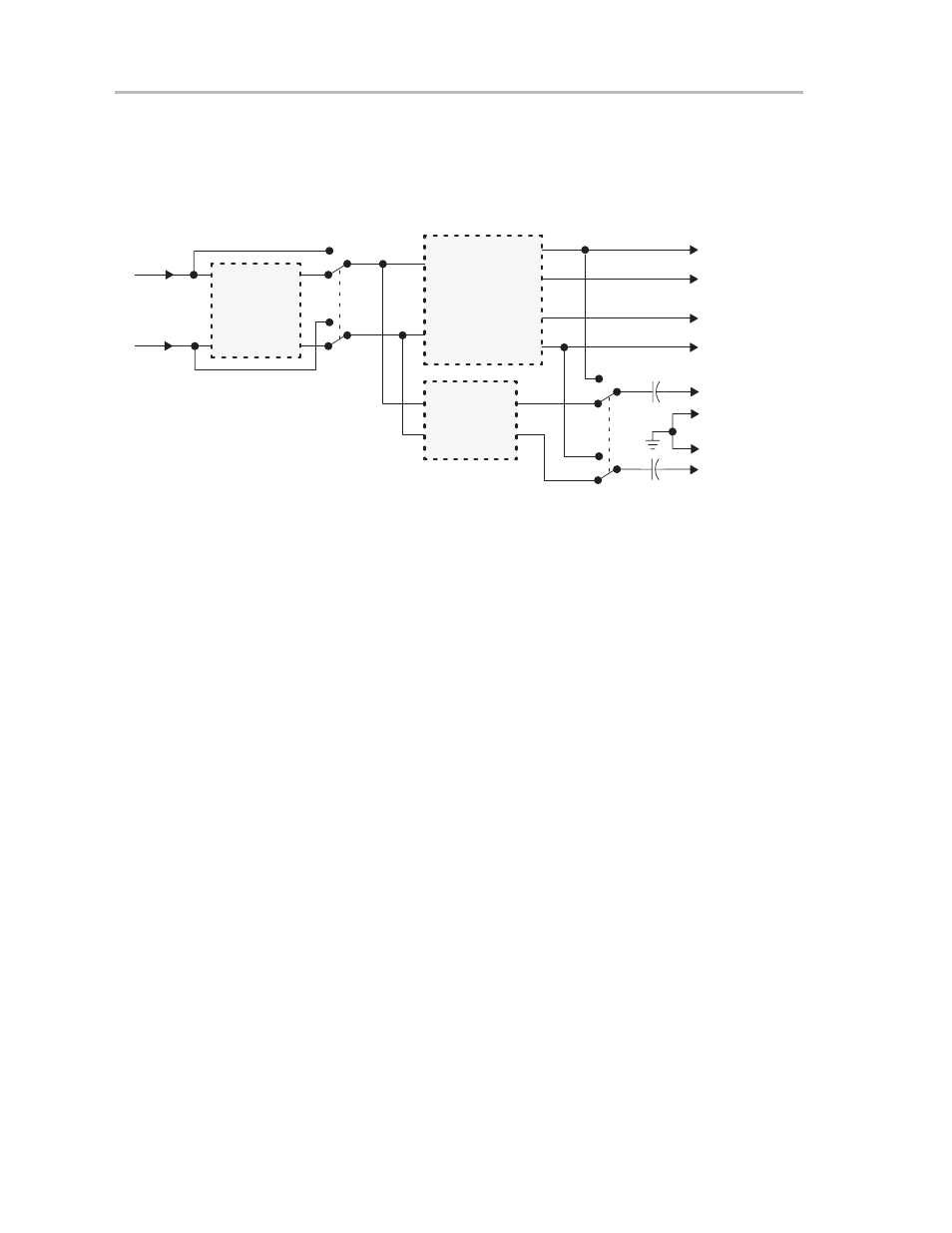

Figure 3–18. Platform Signal Routing and Outputs
U1
Signal
Conditioning
On
Off
U5
Stereo
Headphone
Amplifier
S2
R
L
R
L
L
U5
U2 – U4
S3
J10
Headphone
Output
R
L
Audio
Input
R
L
J7, J8, J9
Speaker
Outputs
R
+
+
–
–
U2
TPA005D02
Amplifier EVM
+
+
–
–
GND
3.3.3.1 Signal Conditioning
The audio signal from input jacks can be applied to the signal conditioning
socket (U1) if an EVM is installed there, or socket U1 can be bypassed and the
audio input signal applied directly to the inputs of the TPA005D02 class D
EVM.
- Platform switch S2 selects signal conditioning or bypasses it.
3.3.3.2 Headphone Output Jack
Switch S3 is the source select for the stereo headphone output jack, J10. The
headphone jack is capacitively coupled (via 470
µ
F electrolytics) and can
output either the signal from the headphone amplifier in socket U5, or the
signal from the power amplifier installed in socket U2, as determined by the
setting of headphone source select switch S3.
- The TPA005D02 is designed to drive BTL loads only, S3 MUST ALWAYS
BE SET TO THE
U5 POSITION when the TPA005D02 class D EVM is
installed on the platform.
