10

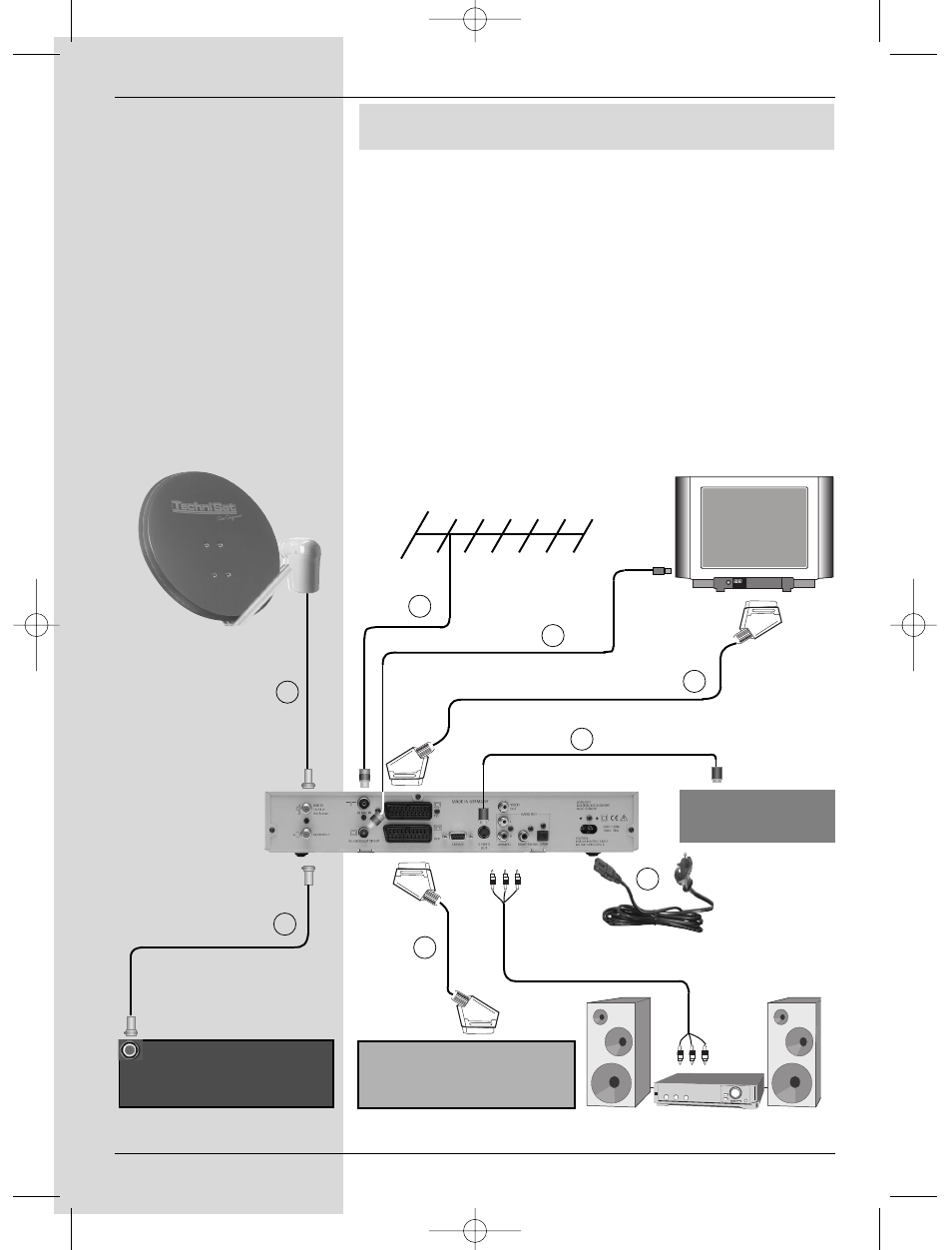

Connecting the DVB receiver to a satellite
installation
a. Mains power connection
b. Connection from the LNC to the LNC input (LNB IN) of
the DVB receiver.
c. Connection from the LNC output to the LNC input of an
analogue receiver.
d. Scart connection of the DVB receiver with the television
set.
e. Connection from the HF output mto the antenna input
socket of the television set.
f. Connection from a terrestrial antenna to the terrest. ante-
nna input of the DVB receiver.
g. Scart connection from a video recorder to the VCR Scart
socket of the DVB receiver.
h. Connection from the S-Video output to the S-Video input
of another unit (e.g. beamer).
V VC CR R
a
g
e
c
f
d
h
b
A An na allo og gu ue e R Re ec ce eiiv ve err
e.g.
Beamer
