(c) Changing color temperature setting

䐖

Move the “䊲” to C.TEMP by pressing [MENU UP], [MENU DOWN] buttons.

䐗

Select either 3200K or 5600K by pressing [DATA UP], [DATA DOWN] buttons.

(a) Changing R PAINT

䐖

Move the “䊲” to R PAINT by pressing [MENU UP], [MENU DOWN] buttons.

䐗

Select the desired value of red paint by pressing [DATA UP], [DATA DOWN] buttons.

(b) Changing B PAINT

䐖

Move the “䊲” to B PAINT by pressing [MENU UP], [MENU DOWN] buttons.

䐗

Select the desired value of blue paint by pressing [DATA UP], [DATA DOWN] buttons.

(d) Confirming the contents of the zone area selected by AWB

䐖

Move the “䊲” to AREA DISP by pressing [MENU UP], [MENU DOWN] buttons.

䐗

Select the desired area by pressing [DATA UP], [DATA DOWN] buttons.

-10 0 10

[DATA UP] ࠉRed is increased.

Red is decreased. ࠉ [DATA DOWN]

-10 0 10

[DATA UP] ࠉBlue is increased.

Blue is decreased. ࠉ [DATA DOWN]

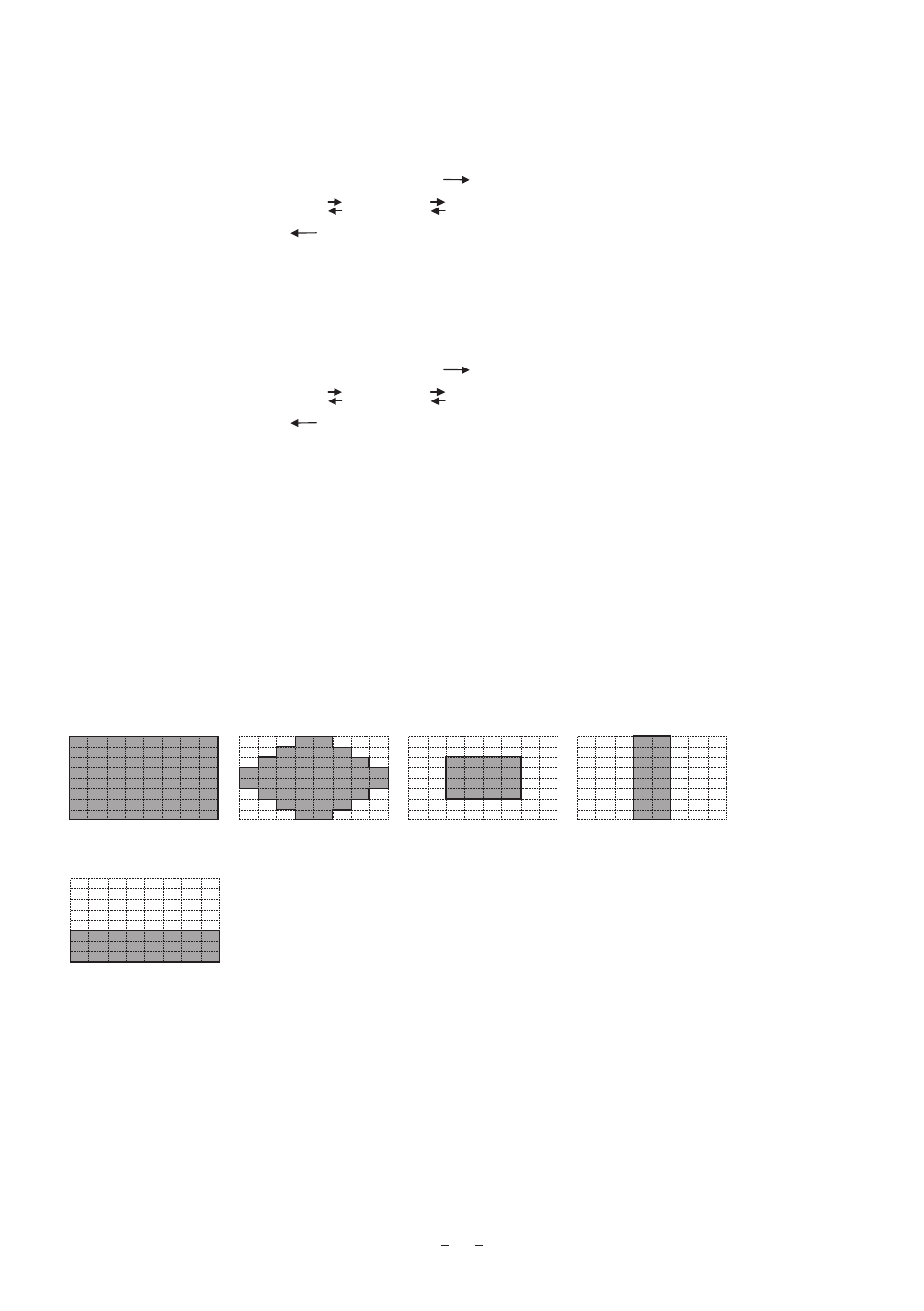

The available picture area is divided into 64 rectangles. The user can choose one of 5 presets.
The shaded rectangles represents the area/pattern where the sampling is taken from.

PRESET A

PRESET B

PRESET D

PRESET C

PRESET E
