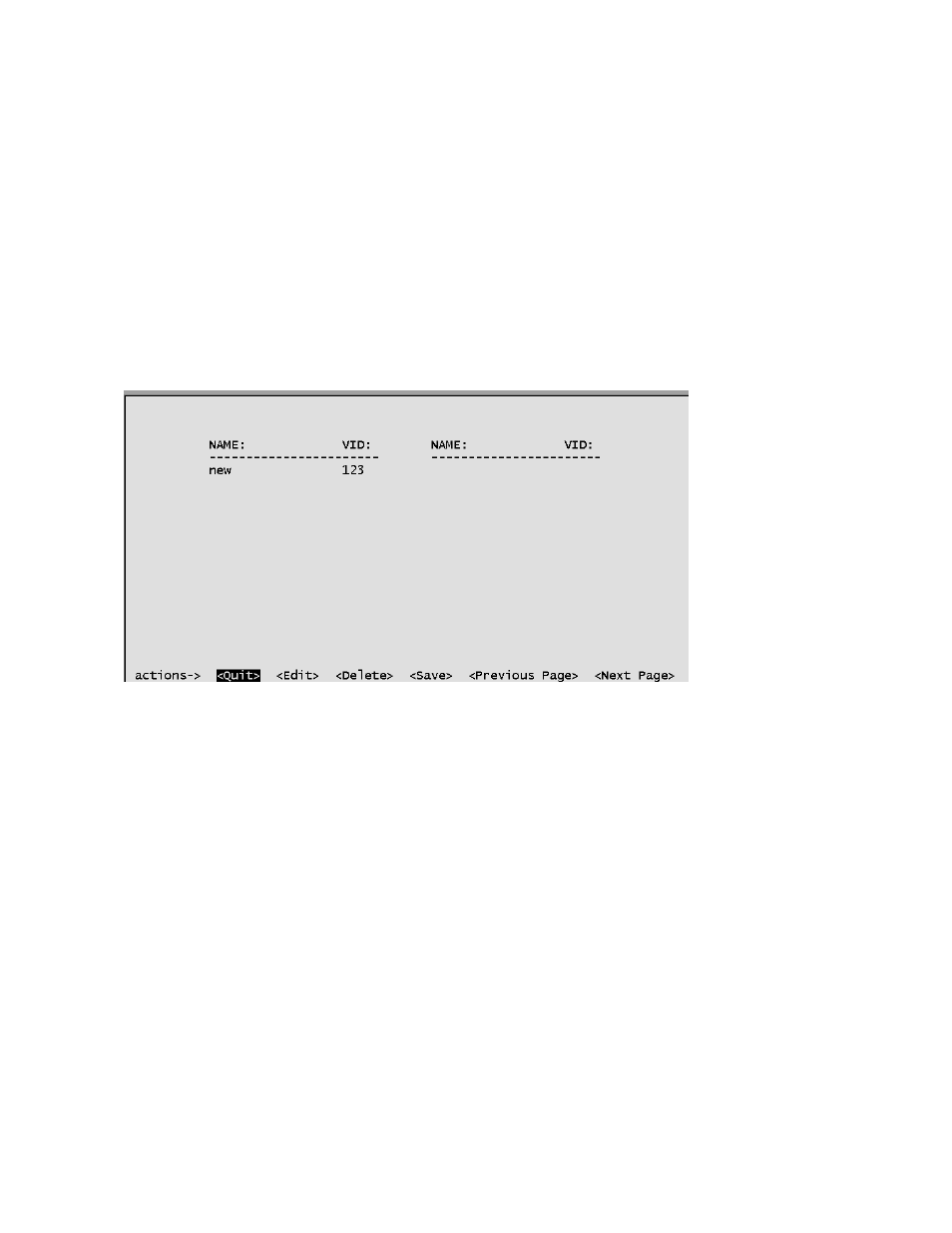

4-3-4-3. Edit / Delete a VLAN Group
Use this menu to edit or delete a VLAN group.
When editing the chosen VLAN, the user can change the protocol VLAN or a
member port. A new protocol can be configured and the ports can be changed
to tagged or untagged or deleted as member ports from this VLAN. In edit
mode the VLAN Name and VLAN ID are read-only and cannot be modified.
VLAN1, the default VLAN, can never be deleted.
1. Choose
2. Choose the VLAN group to edit or delete by using the TAB key and then
press enter.
3. User can change the protocol VLAN or a member port.
4. After editing or deleting a VLAN, press the
configured values.
