7
LED Indicators

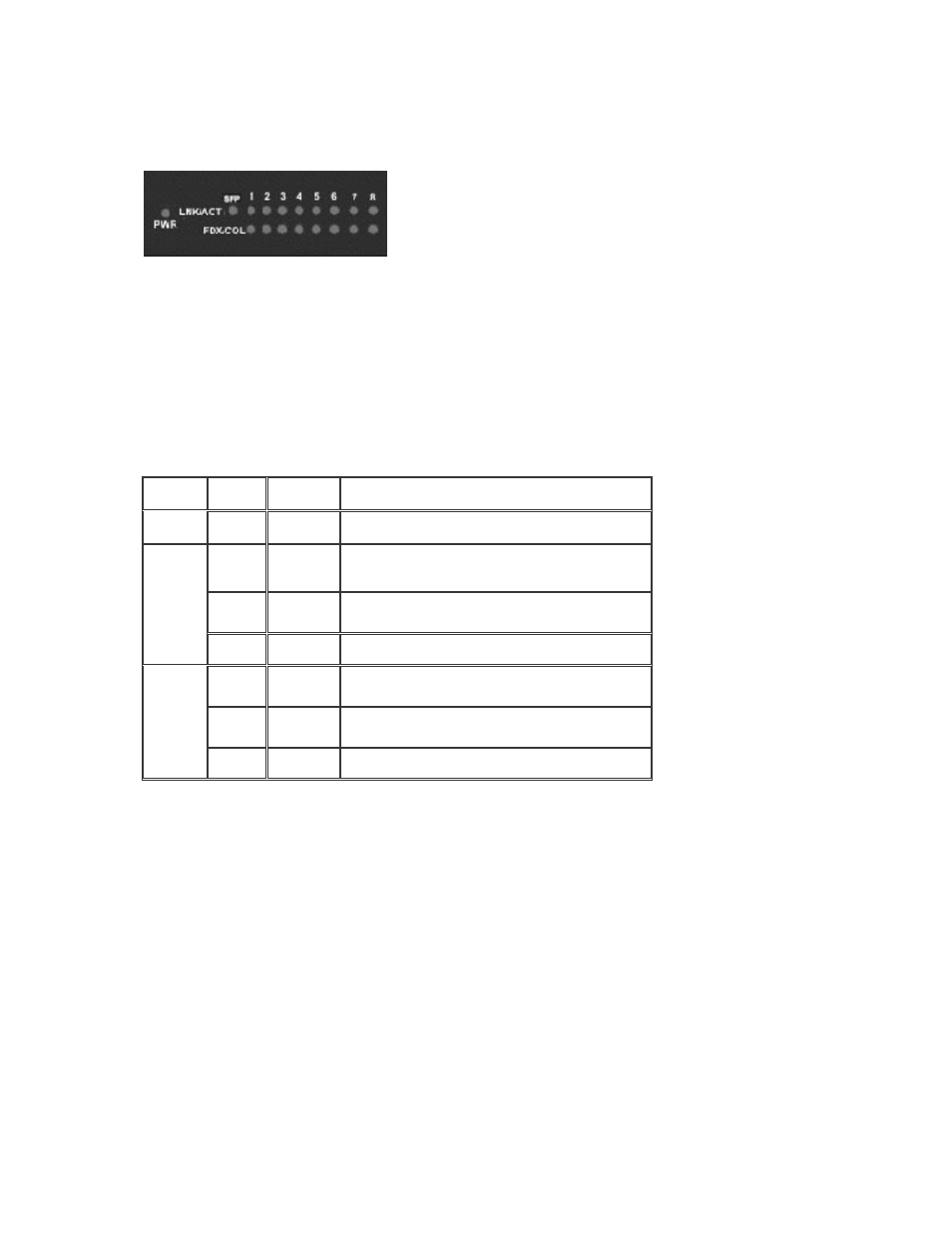

Figure 2-2. LED Indicators
There are two LED-Indicators (LNK/ACT, FDX/COL) for each Fiber port,
one LED-Indicator (LNK/ACT) for the SFP port and one LED-Indicator for
power. The following table provides descriptions of the LED statuses and
meaning. They provide a real-time indication of systematic operation
status.
LED Status Color Description
Power On Green Power On
On Green
The port is successfully connecting with
a device.
Blinks Green The port is receiving or transmitting data.
LNK /
ACT
Off No device attached.
On Orange
The port is operating in full-duplex mode
and device is attached.
Blinks Orange
Collision of Packets is occurring on the
port.
FDX /
COL
Off Half-duplex mode or no device attached.
Table 2-1. The description of LED Indicators
