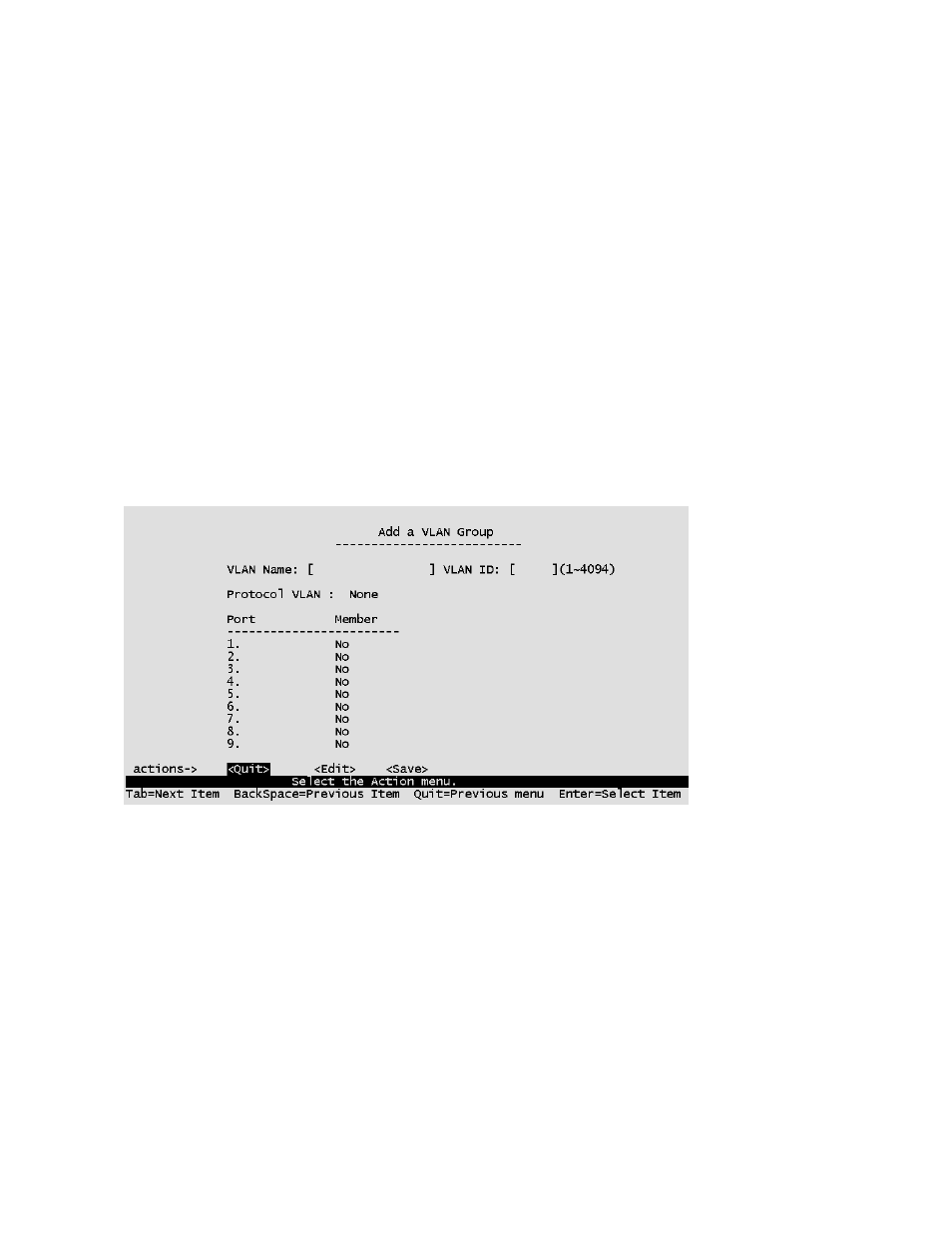

4-3-4-2. Create a VLAN Group
To create a VLAN and add tagged /untagged member ports to it:
1. VLAN Name: Type a name for the new VLAN using 15 alphanumeric
characters and no spaces.
2. VLAN ID: Type a VID (between 2~4094). The default is 1.
3. Protocol VLAN: Press the Space key to choose protocol type. When set,
this acts as a packet filter on the port by restricting packets on the port of
only the selected protocol type.
4. Member: Press the Space key to choose VLAN membership. There are
three selections:
UnTagged: the member port is an untagged port.
Tagged: the member port is a tagged port.
No: The port is not a member of this VLAN group.
5. Save the configuration.
Actions->
action menu line.
