6
2.
Hardware Description
Front Panel
The Front Panel of the MIL-SM808G switch series consists of eight
100Mbps Fast Ethernet Fiber ports, one SFP port, one console port, one
LED-Indicator for Power, one LED-Indicator (LNK/ACT) for the SFP port
and two LED-Indicators (LNK/ACT, FDX/COL) for each Fiber port.
Console LED SFP Fast Ethernet
Port Indicators Port Fiber Ports

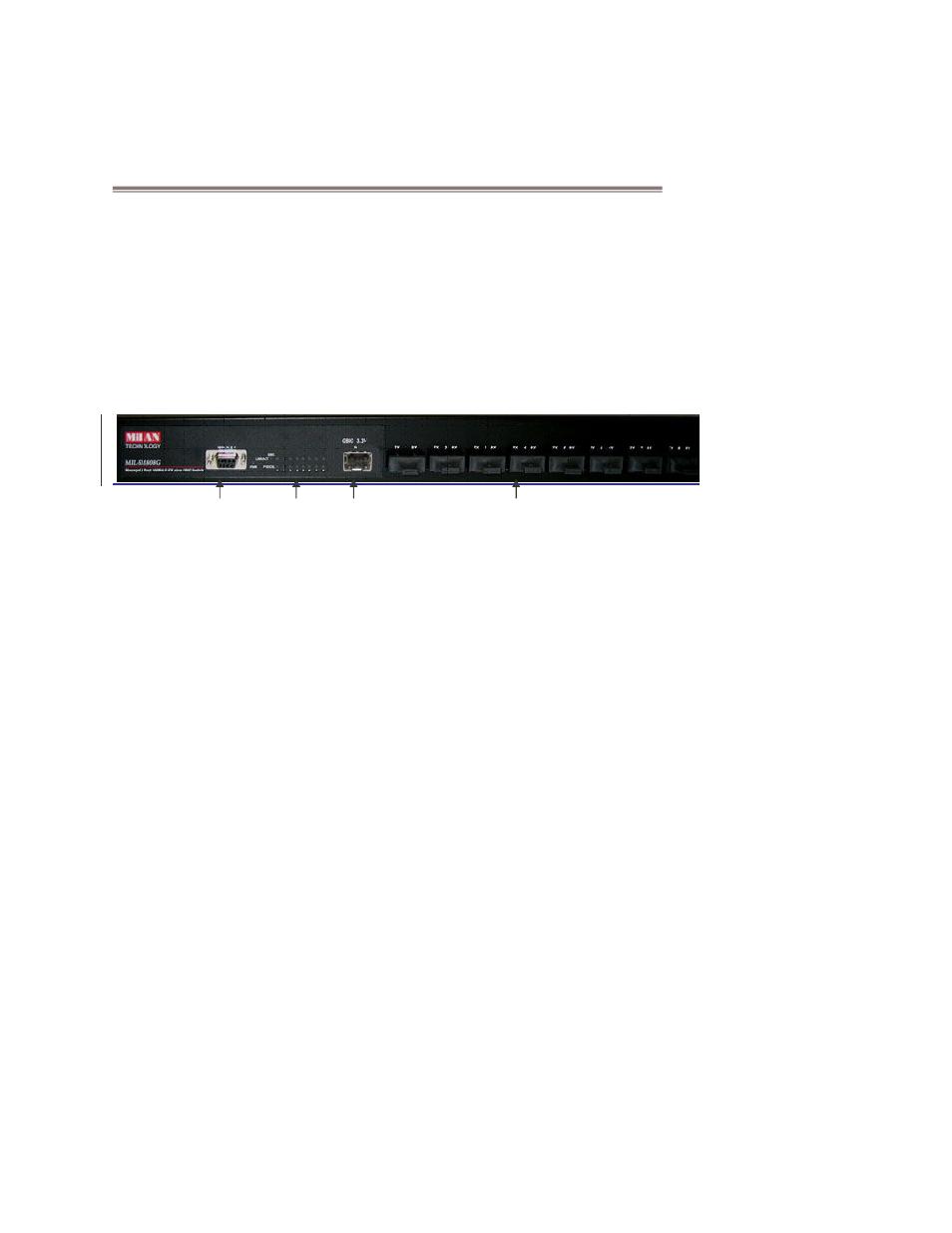

Figure 2-1. Front Panel for MIL-SM808G
100BASE-FX Fiber Ports: The MIL-SM808G comes with eight SC
connectors (multi-mode or single mode) or eight ST connectors
(multi-mode).
SFP Port: The MIL-SM808G supports the 3.3V model Gigabit
Transceiver for Gigabit SX or LX connector.
Console Port: Console management can be done through the
Console Port. It requires a direct connection between the switch and
an end station (PC) via a RS-232 cable.
