2.9 - Installing Optional SO-DIMM modules
Your S5375 motherboard is equipped with an optional proprietary SO-DIMM
connector. The 200-pin vertical SO-DIMM connector can be used for TYAN M3295-
2/M3296 expansion card to provide such features as additional TYAN SMDC
module support. For details of available expansions cards, visit the TYAN website at
http://www.tyan.com .
To install a SO-DIMM expansion card:

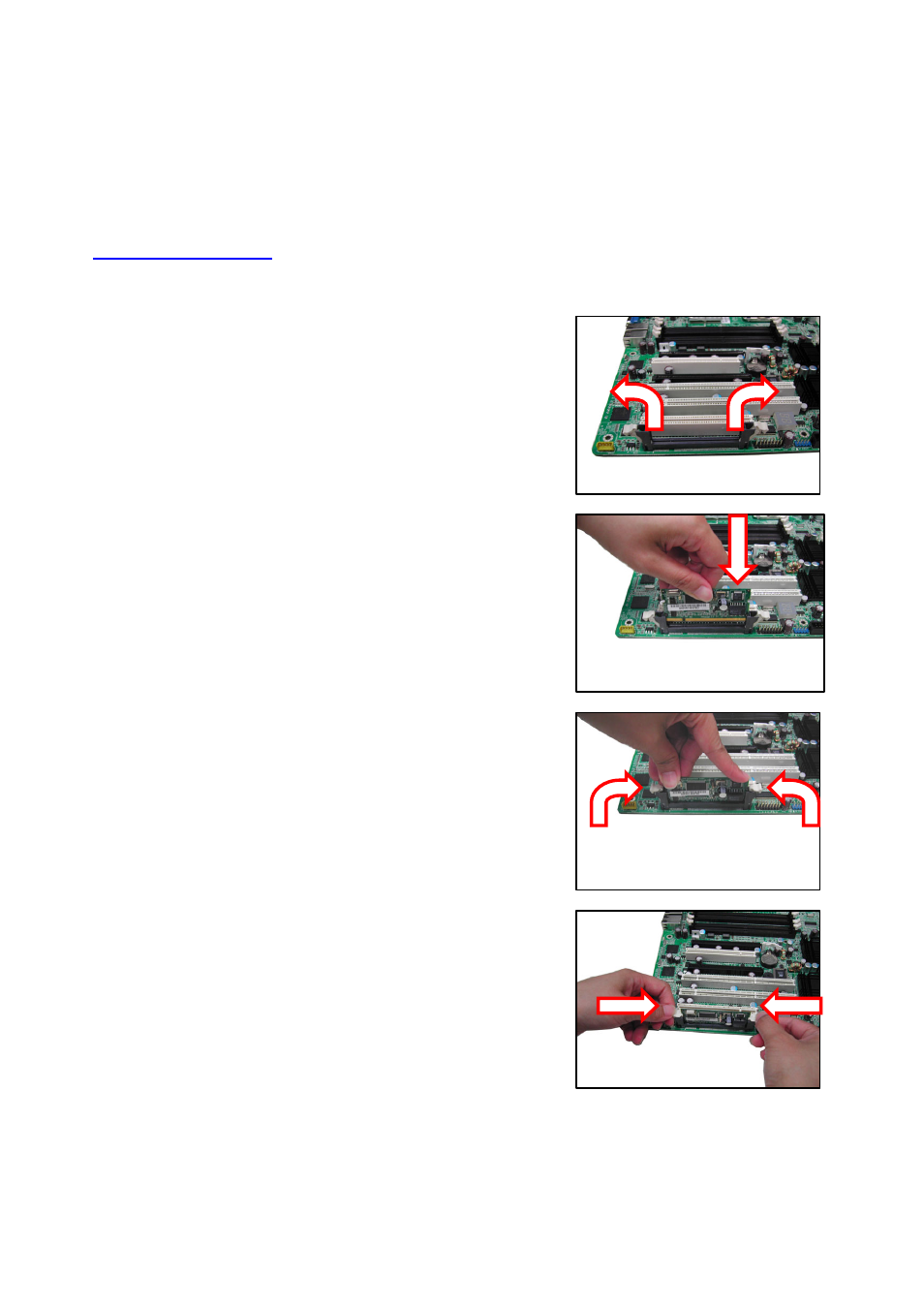

1. Open the spring levers as shown.
2. Insert the SO-DIMM card as shown,
making sure that the card is the right
way up. The card will fit in only one
way and the screw holes in the card
should line up exactly with the
mounting posts on the motherboard.
3. Push the SO-DIMM card down into
place and make sure the spring levers
click into place as shown.
NOTE: The SO-DIMM expansion cards
will fit in the slot only one way. Make
sure that you align the slot in the card
with the key in the card slot.
4. Removal of a SO-DIMM card is a reversal of the installation procedure.
Push out the spring levers as shown and pull the card out of the socket.
