26
2.7 - Attaching Drive Cables
Attaching Serial ATA Cables
The Tempest i5100X S5375 is also equipped with 6 Serial ATA (SATA)
channels.
Connections for these drives are also very simple.
There is no need to set Master/Slave jumpers on SATA drives.
Tyan has supplied two SATA cables and one SATA power adapter. If you are in
need of other cables or power adapters please contact your place of purchase.

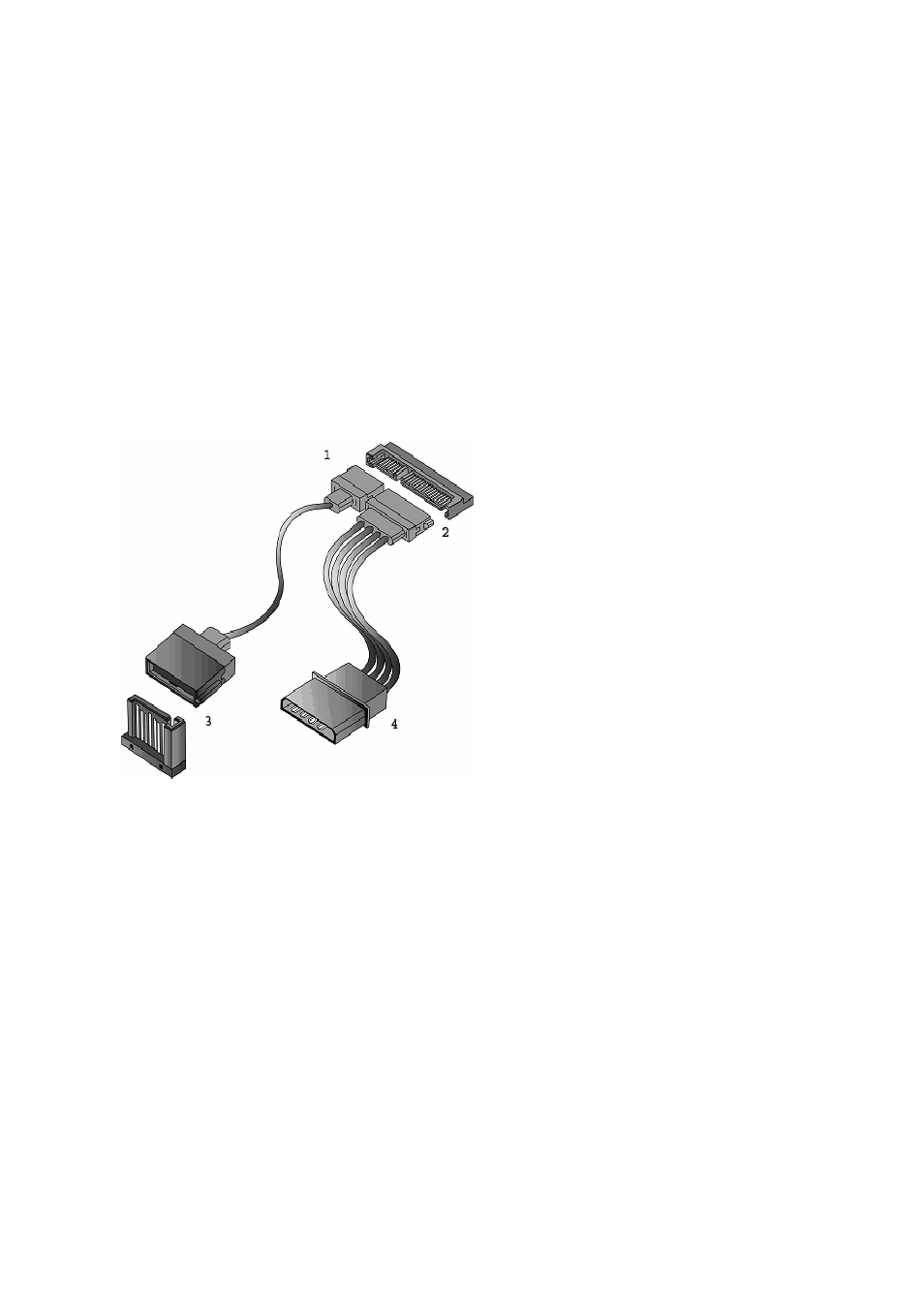

The following pictures illustrate how to connect an SATA drive
1. SATA drive cable
connection
2. SATA drive power
connection
3. SATA cable motherboard
connector
4. SATA drive power adapter
