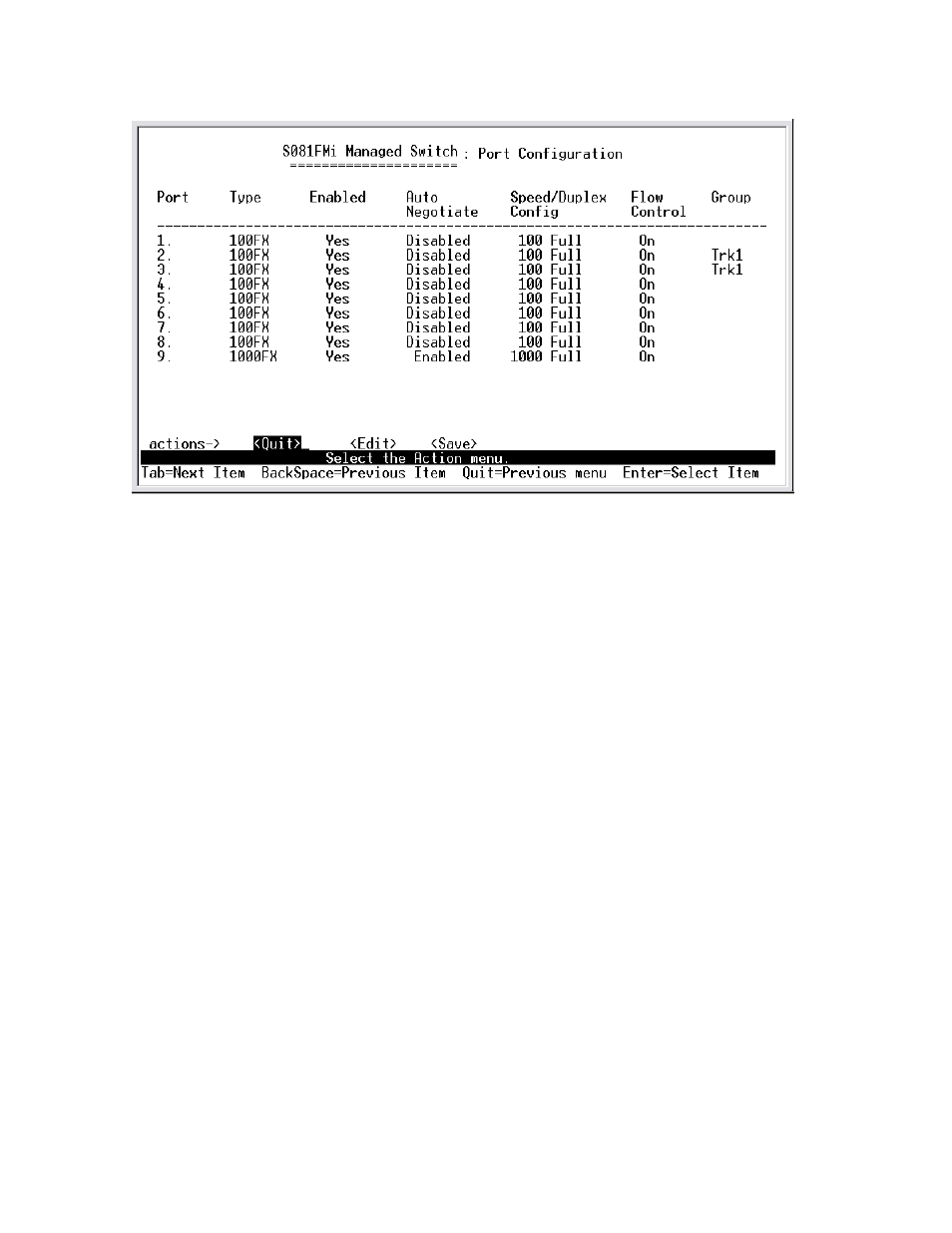

Actions->
: Exit the page of port configuration and return to previous menu.
: Configure all items. Finished configure press ESC to go back action
menu line.
: Save all configure value.
4-3-3. Port Mirroring Configuration
The port mirroring is a method for monitor traffic in switched networks. Traffic
through ports can be monitored by one specific port. That is traffic goes in or
out monitored ports will be duplicated into monitoring port.
Press Space key to change configure of per item.
1. Port Mirroring State: Type “space” key for enable/disable.
2. Analysis Port: It’s mean mirror port can be used to see all monitor port
traffic.
3. Port: The ports you want to monitor. All monitor port traffic will be copied to
sinffer port. You can select max 9 monitor ports in the switch. User can
choose want to monitored RX frames only or TX frames only or both RX and
TX frame from the port at Action item.
