4.

Network Configuration


This Section explains how to configure console management via a direct
connection to the console port of the 8 port Fast Ethernet Fiber
Management Switch.

Console management involves the administration of the Switch via a
direct connection to the RS-232 console port. This port is a female DB-9
connector. From the main menu of the console program, user has access
to manage the functions of the Switch.

Connecting a Terminal or

PC to the Console Port

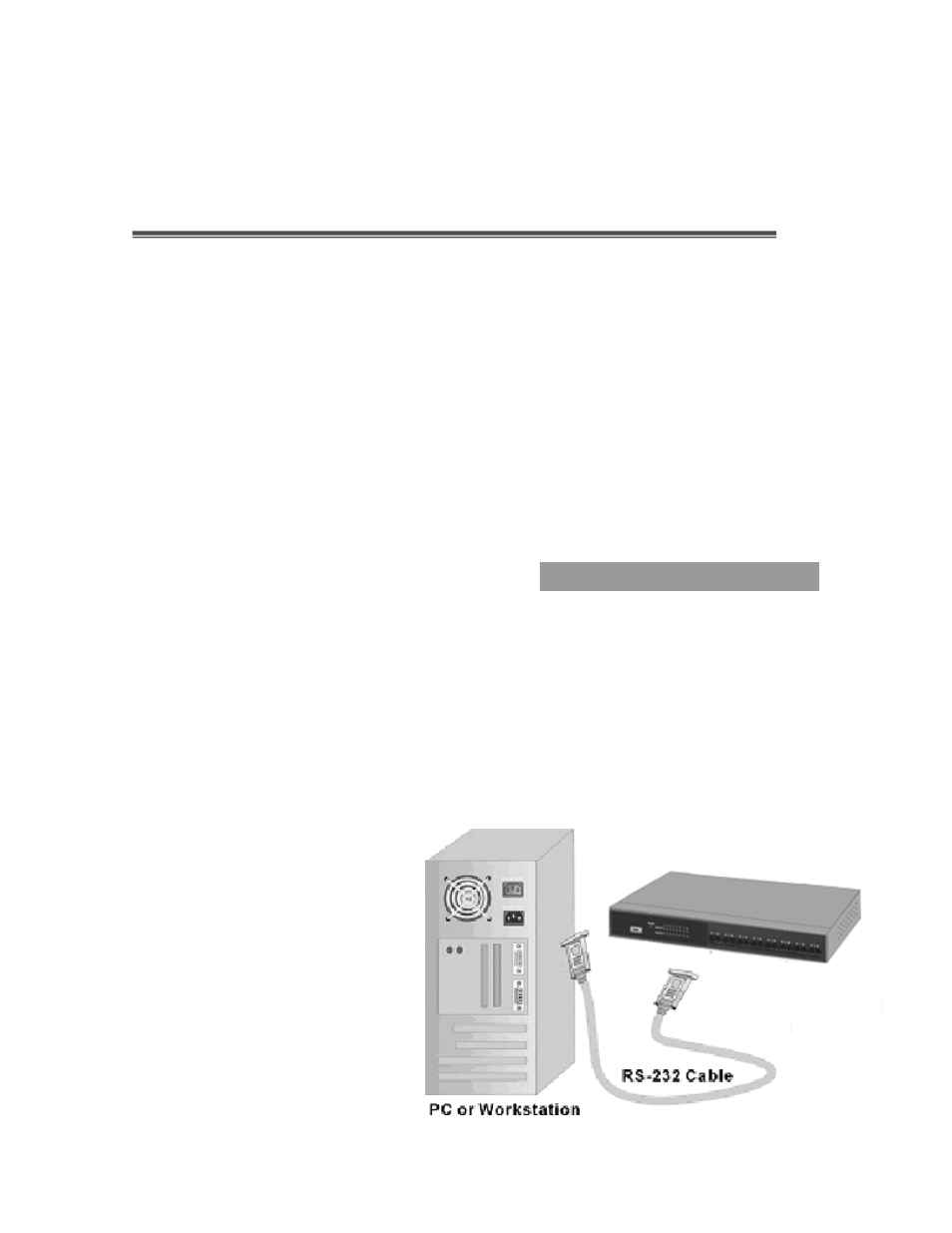

Use the supplied RS-232 cable to connect a terminal or PC to the
console port. The terminal or PC to be connected must support the
terminal emulation program.

After the connection between Switch and PC is finished, turn on the PC

and run a terminal emulation program or Hyper Terminal to match the
following default characteristics of the console port:


Baud Rate: 9600 bps
Data Bits: 8
Parity: none
Stop Bit: 1
Control flow: None
