Ps/2 connector, Serial port – adapter card – Tripp Lite UPS SNMPWEBCARD User Manual
Page 22
SNMP Adapter User’s Guide

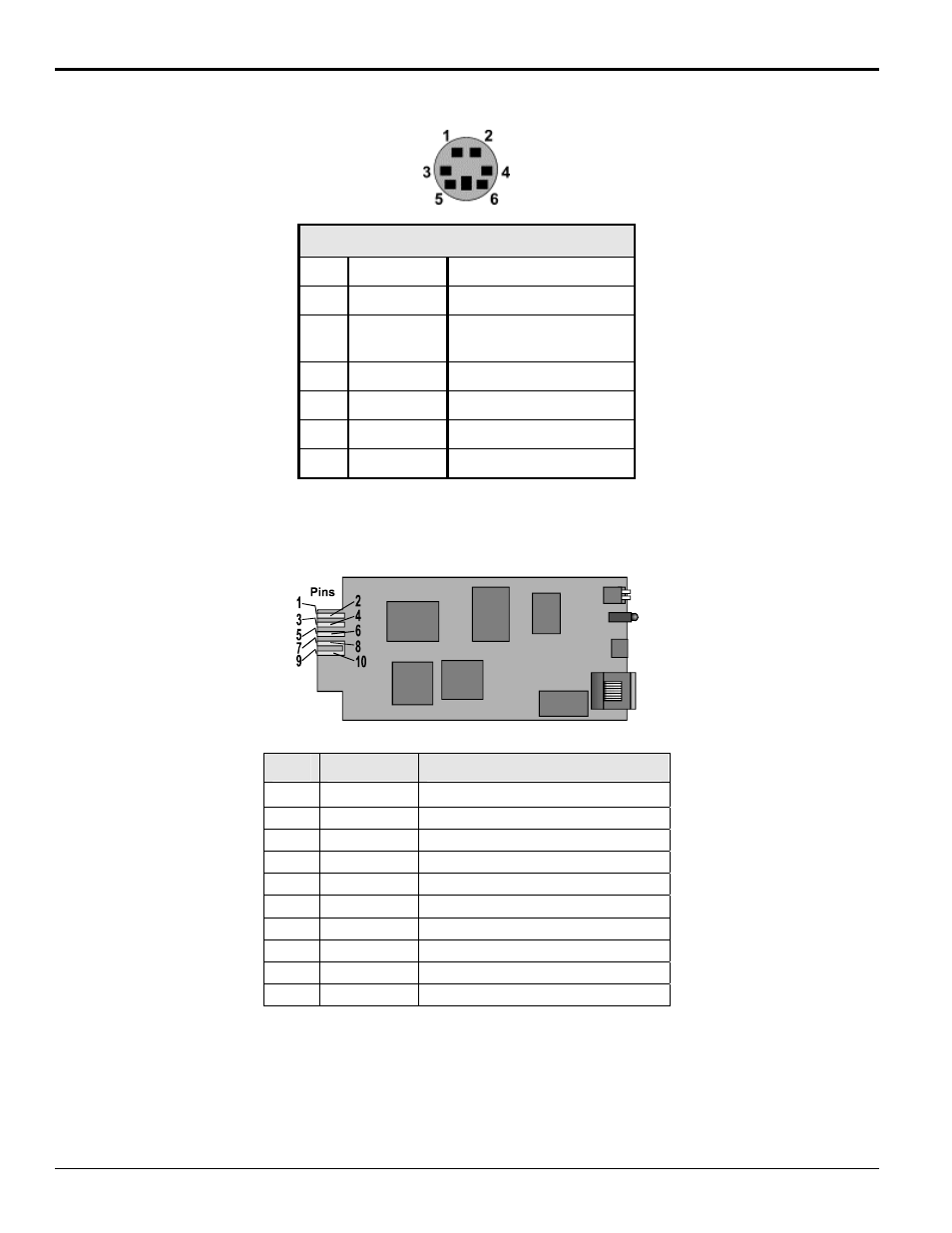

PS/2 Connector
PS/2 Connector Pins
Pin Name
Description
1 GND
Ground
2 +9V
or
+12V
Power
3
Not
used
4
Not
used
5 Tx
Serial
transmit
6 Rx
Serial
receive
Serial Port – Adapter Card
Figure 2:- Pin Assignments
PIN Name
Description
1 GND
+12V
GND
2 +12V
+12V
Power
3
RXDUPS
Connect to UPS Tx signal
4
TXDUPS
Connect to UPS Rx signal
5
RXDPC
Connect to terminal Tx signal
6
TXDPC
Connect to terminal Rx signal
7 Not
used
8
SNMPSIG
SNMP card detect, connect to pin-10
9 GND
+12V
GND
10
+VCC
Provided by UPS
93-2453 (200503172)
