TP-Link TD-W8920G - Manual (Page 70)

TD-W8920G 108M Wireless ADSL2+ Router User Guide
63

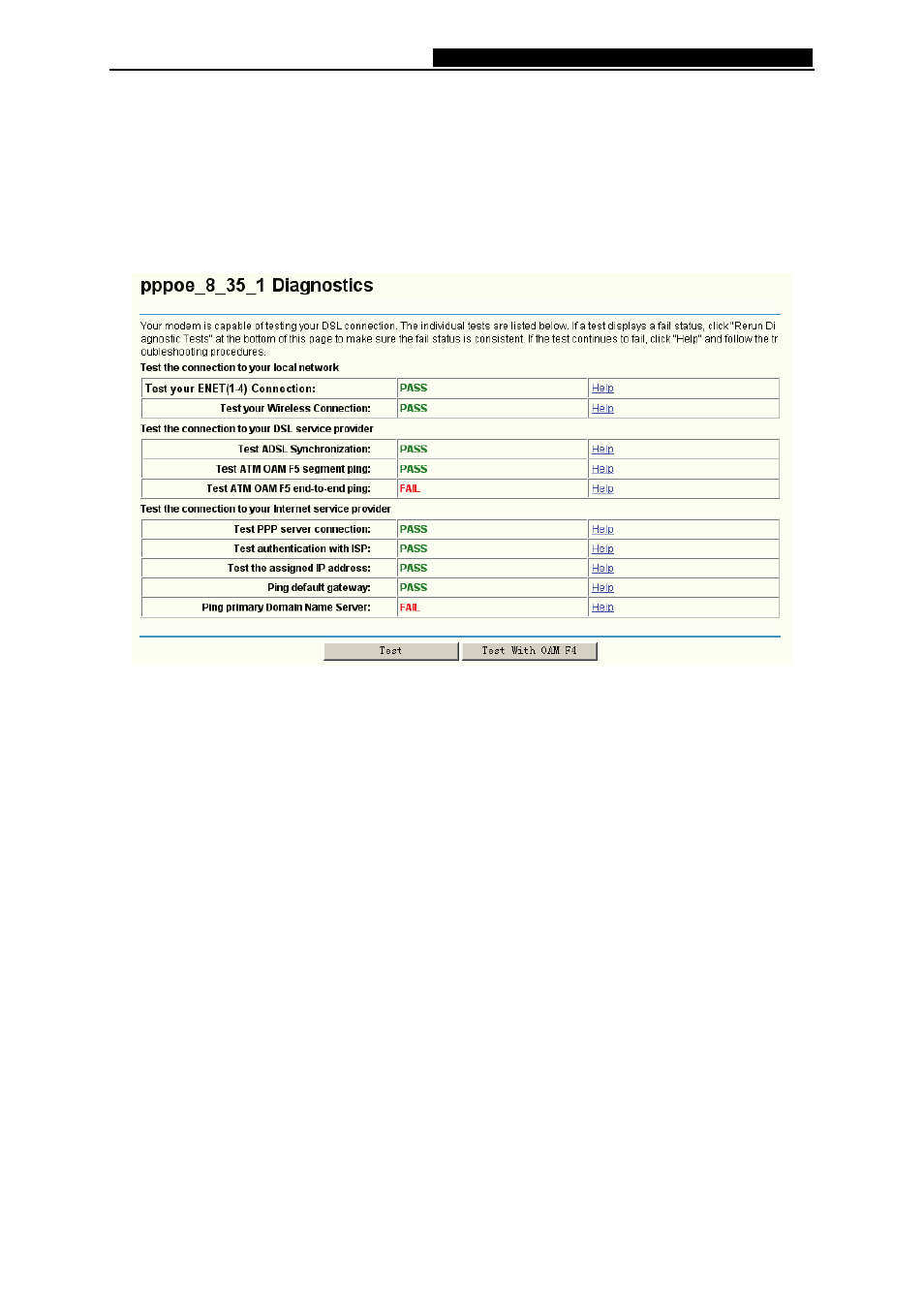

4.6 Diagnostics
Choose “Diagnostics”, you will see the Diagnostics screen. This section describes the result of
the test for the ENET (Ethernet) Connection, Wireless Connection and ADSL Synchronization.
You can refer to the Help menu to get more information about the corresponding test.
Figure 4-63
4.7 Management
Choose “Management”, there are six submenus under the main menu. They are Settings,
System Log, TR-069 client, Internet Time, Access Control, Update Software and Reboot.
Click any of them, and you will be able to configure the corresponding function.
4.7.1 Settings
This section provides three important functions for managing the Router; they are Backup,
Update and Restore Default (shown in Figure 4-64). The detailed manipulations are described
below.
