TD-W8920G 108M Wireless ADSL2+ Router User Guide
45

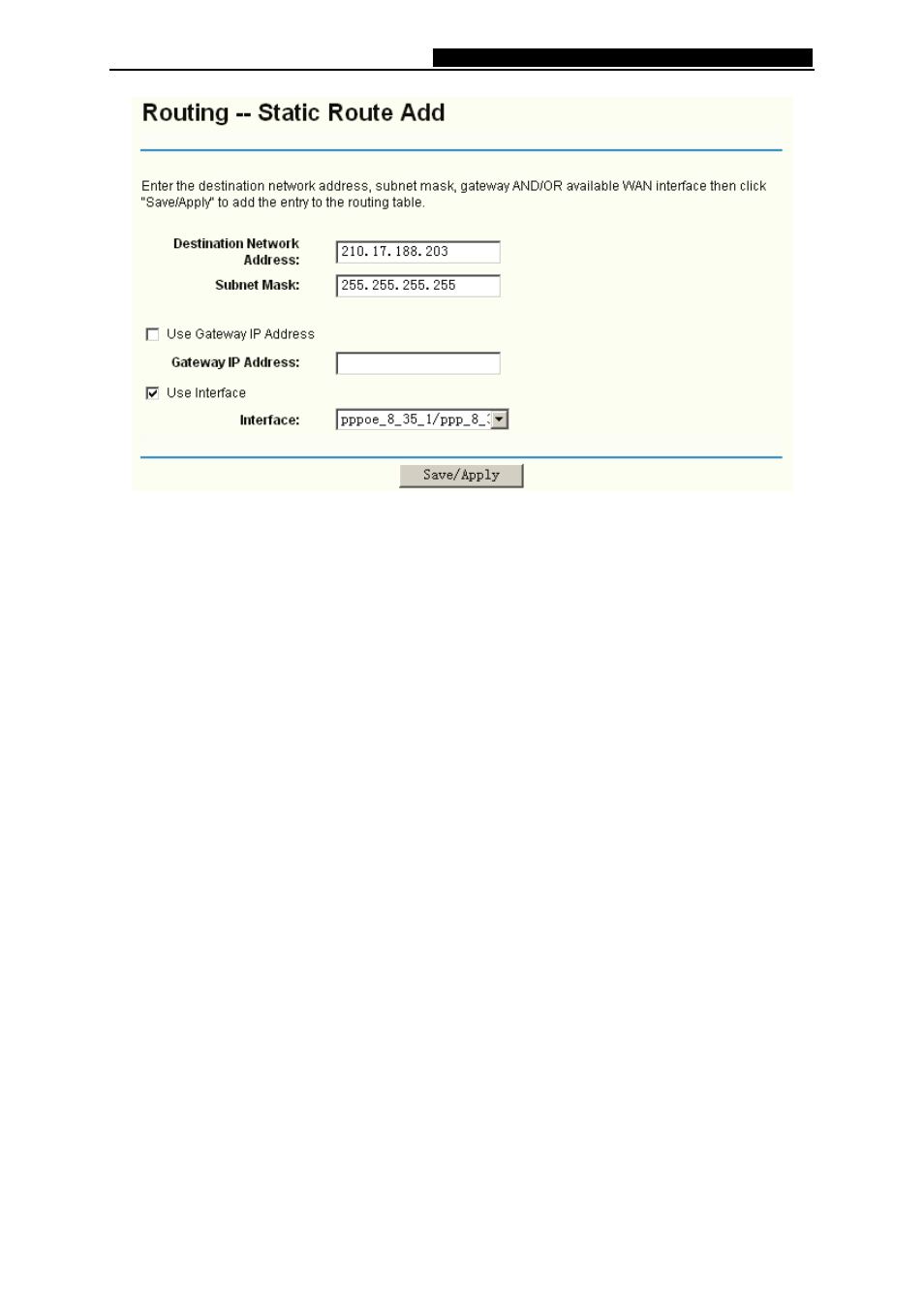

Figure 4-37
2. Enter the following data:
¾
Destination Network Address: The Destination Network Address is the address of the
network or host that you want to assign to a static route.
¾
Subnet Mask: The Subnet Mask determines which portion of an IP Address is the network
portion, and which portion is the host portion.
¾
Gateway IP Address: If the Use Gateway IP Address checkbox is selected, you should
type the Gateway address exactly in the text box, or else, the default Gateway address will be
adopted for the Static Route.
¾ Use Interface: If the Use Interface checkbox is selected, you should select the Interface
name in the text box, or else, the default Use Interface will be adopted for the Static Route.
3. Click the Save/Apply button to save it.
To remove a static routing entry:
1. Select
the Remove check box according to the entry in the Figure 4-36.
2. Click the Remove button, and the entry will be deleted.
)
Note:
Default Gateway IP address should be specified since MER Interface is selected
4.4.6.3. RIP
Choose “Advanced Setup”Æ“Routing”Æ“RIP”, you can see the RIP (Routing Information
Protocol) screen, this screen allows you to configure the RIP (shown in Figure 4-38).
