TD-W8920G 108M Wireless ADSL2+ Router User Guide
27
settings you’ve made (shown in Figure 4-12). Or else click the Back button to return to
the previous screen to make modifications.

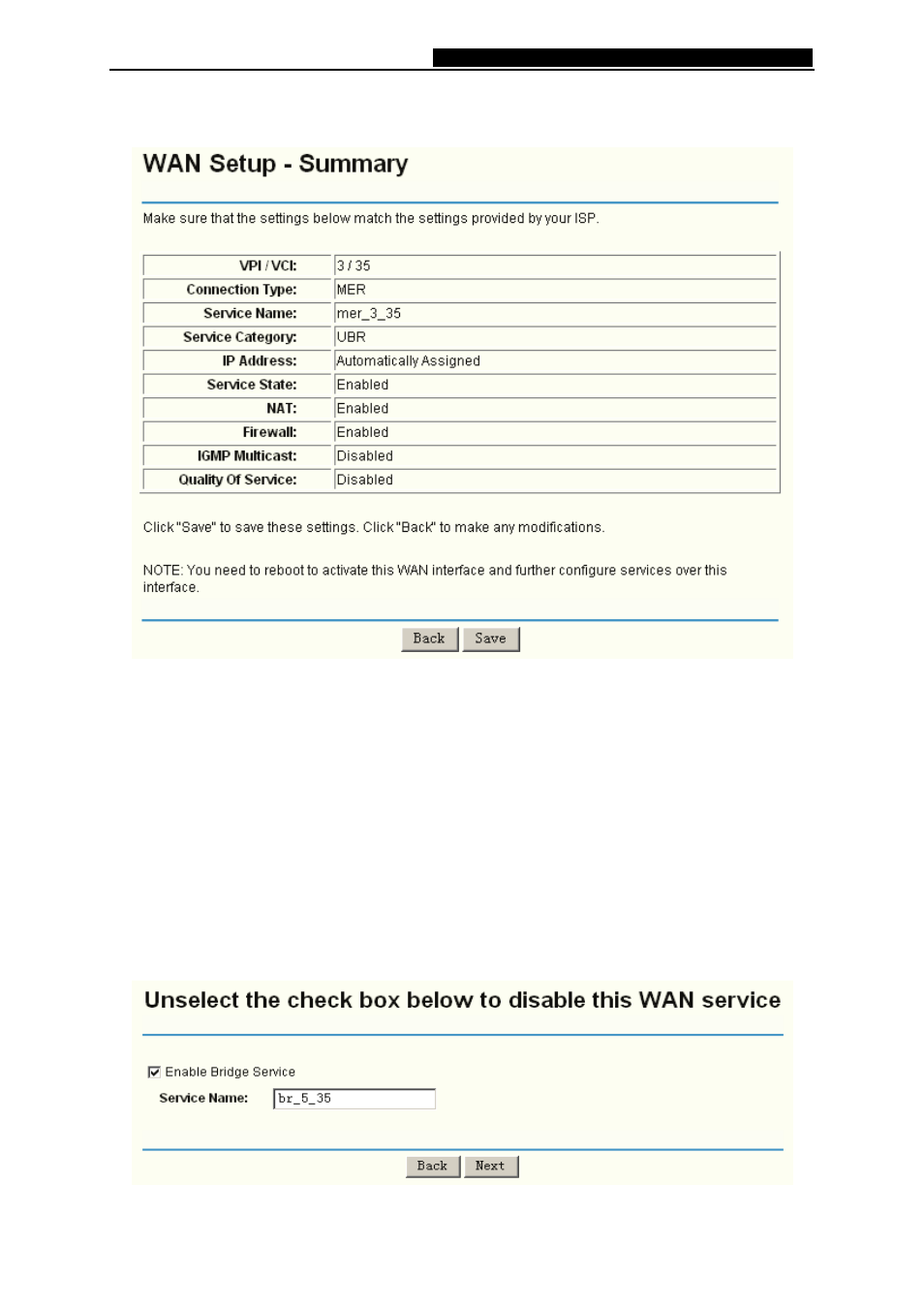

Figure 4-12
6) If you are sure about the configuration, click the Save button to save these settings,
otherwise click the Back button to return to the previous screen to make modifications.
The information of the figure shows above is same as the information in the Figure 4-4.
4. IPoA
If you choose IPoA in the previous screen (shown in Figure 4-6), the configuration is similar
to MER.
5. Bridge
If you choose Bridging in the previous screen (shown in Figure 4-6), a screen will be
displayed as shown below (shown in Figure 4-13).
