TD-W8920G 108M Wireless ADSL2+ Router User Guide
36
Figure 4-23
4.4.4.1. IP Filtering
The IP address filtering feature makes it possible for administrators to control user's access to the
Internet, which is based on user's IP. The IP address filtering includes Outgoing and Incoming,
the detailed descriptions are provided below.
IP Filtering - Outgoing
Choose “Advanced Setup”Æ“Security”Æ“IP Filtering”Æ“Outgoing”, you can configure
Outgoing Filtering rules on the screen (shown in Figure 4-24).
The Outgoing IP Filtering feature allows you to control some IP traffic from LAN to access to
some specifically addresses. By default, all outgoing IP traffic from LAN is allowed, but some IP
traffic can be BLOCKED by setting up filters.

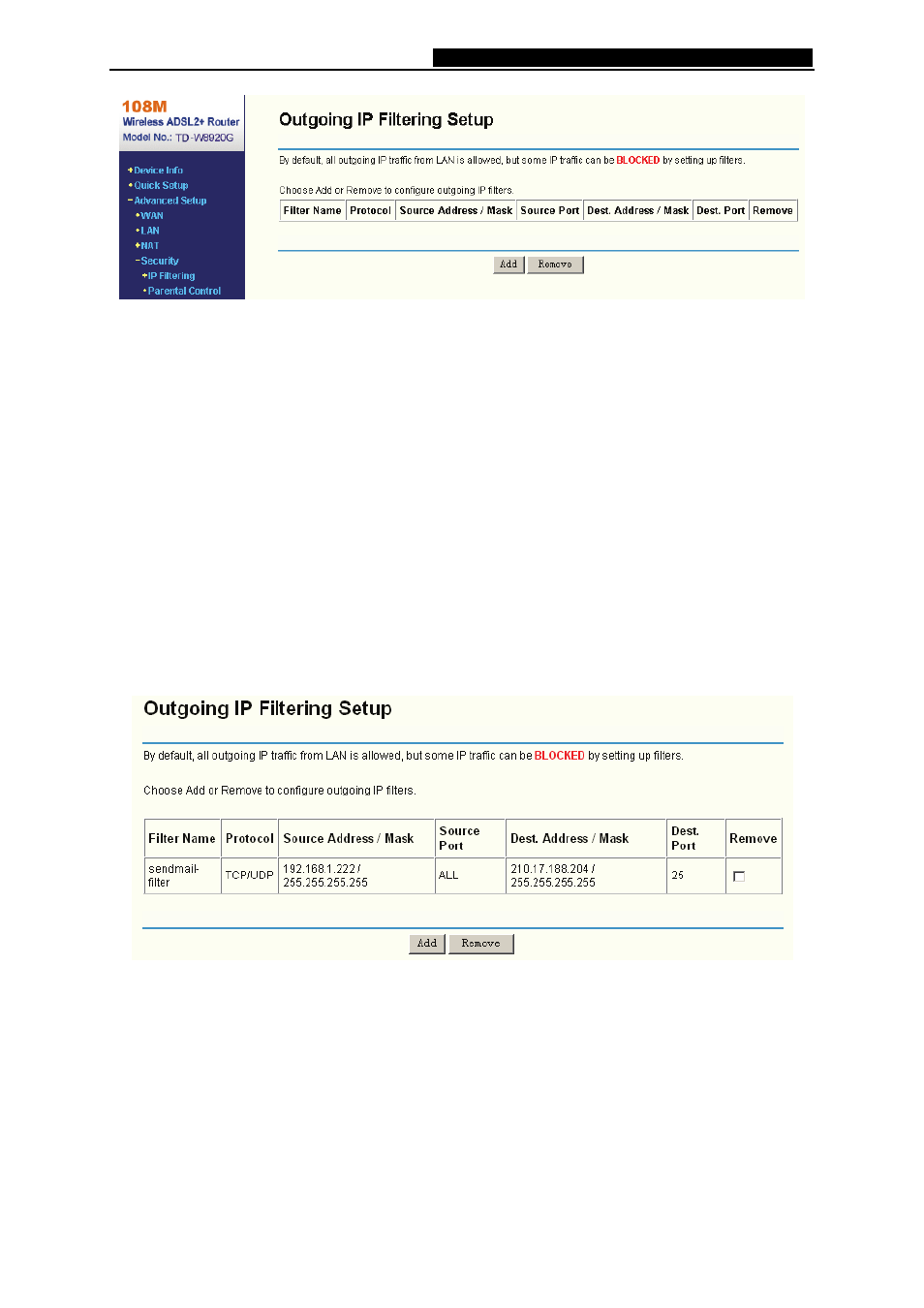

Figure 4-24
Setup an Outgoing IP Filtering rule:
1. Click
the Add button (pop-up Figure 4-24), then you will set the new rule in the next screen
(shown in Figure 4-25).
