TD-W8920G 108M Wireless ADSL2+ Router User Guide
24

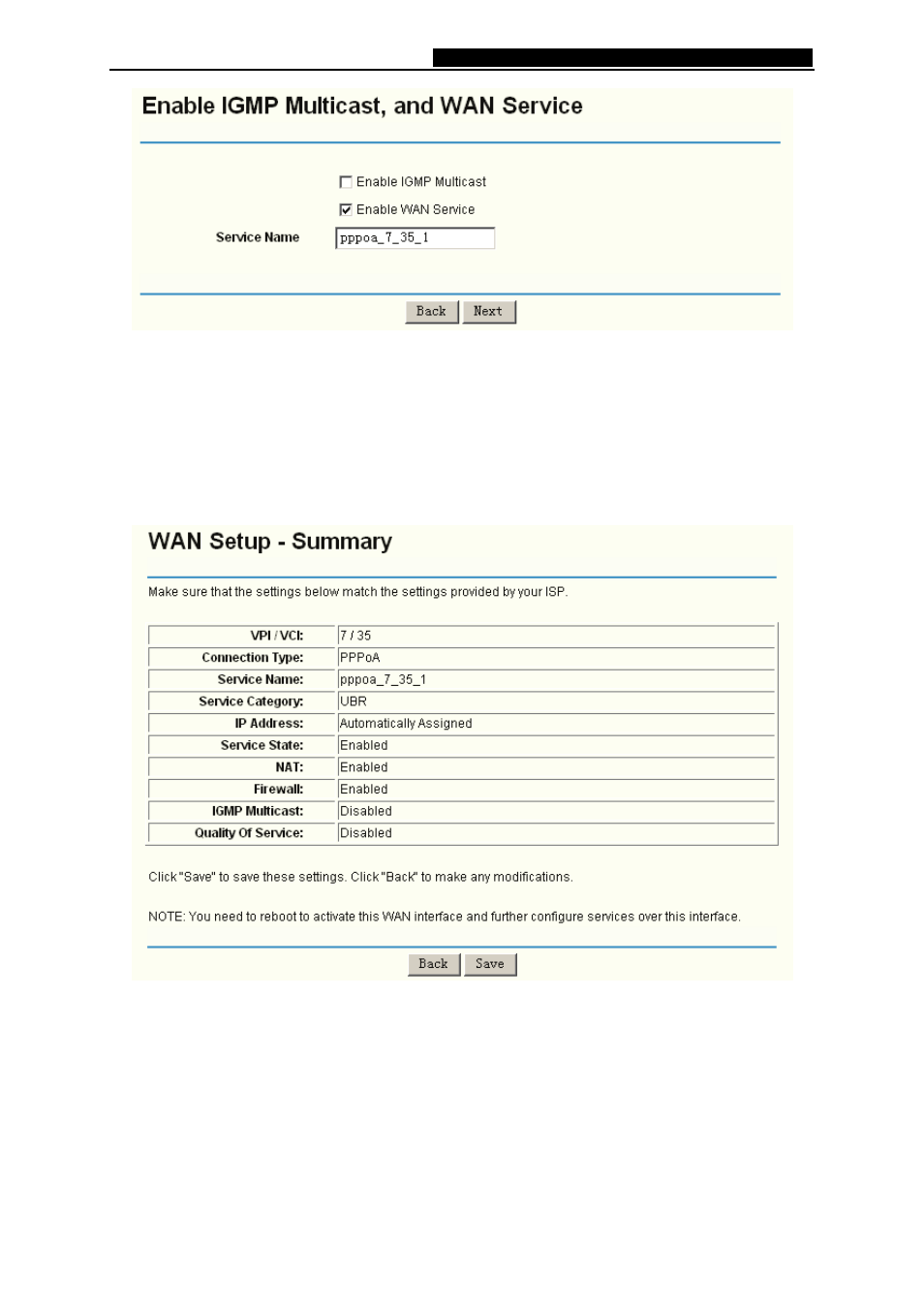

Figure 4-8
5) Enable the IGMP Multicast and WAN Service on the screen above, if you are not sure
about the IGMP, just leave the default setting. Note that if you want to adopt the PPPoA
service, you have to select the Enable WAN Service option in the screen above, or else
the service will not take effect.
6) Click the Next button, and you will see the next screen which displays the detailed
settings you’ve made (shown in Figure 4-9).
Figure 4-9
7) If you are sure about the configuration, click the Save button to save these settings,
otherwise click the Back button to return to the previous screen to make modifications.
The information is same as the information in Figure 4-4.
2. PPPoE
If you choose PPPoE in the previous screen (shown in Figure 4-6), the configuration is
similar to PPPoA, the only difference is that you should set the PPPoE Service Name on
