Toshiba ICC Multiprotocol Ethernet Interface ASD-G9ETH User Manual
Page 44
43
ICC
10.9 Alarm Tab
The Alarm tab provides a configurable mechanism by which the interface card
can autonomously monitor any available drive register and send emails to up to
four recipients when a certain condition is detected. The alarm conditions have
both value and time constraints, and can be configured to retrigger at a fixed
interval as long as the alarm condition continues to be satisfied. Twenty
individually-configurable alarms are available. Refer to Figure 38.

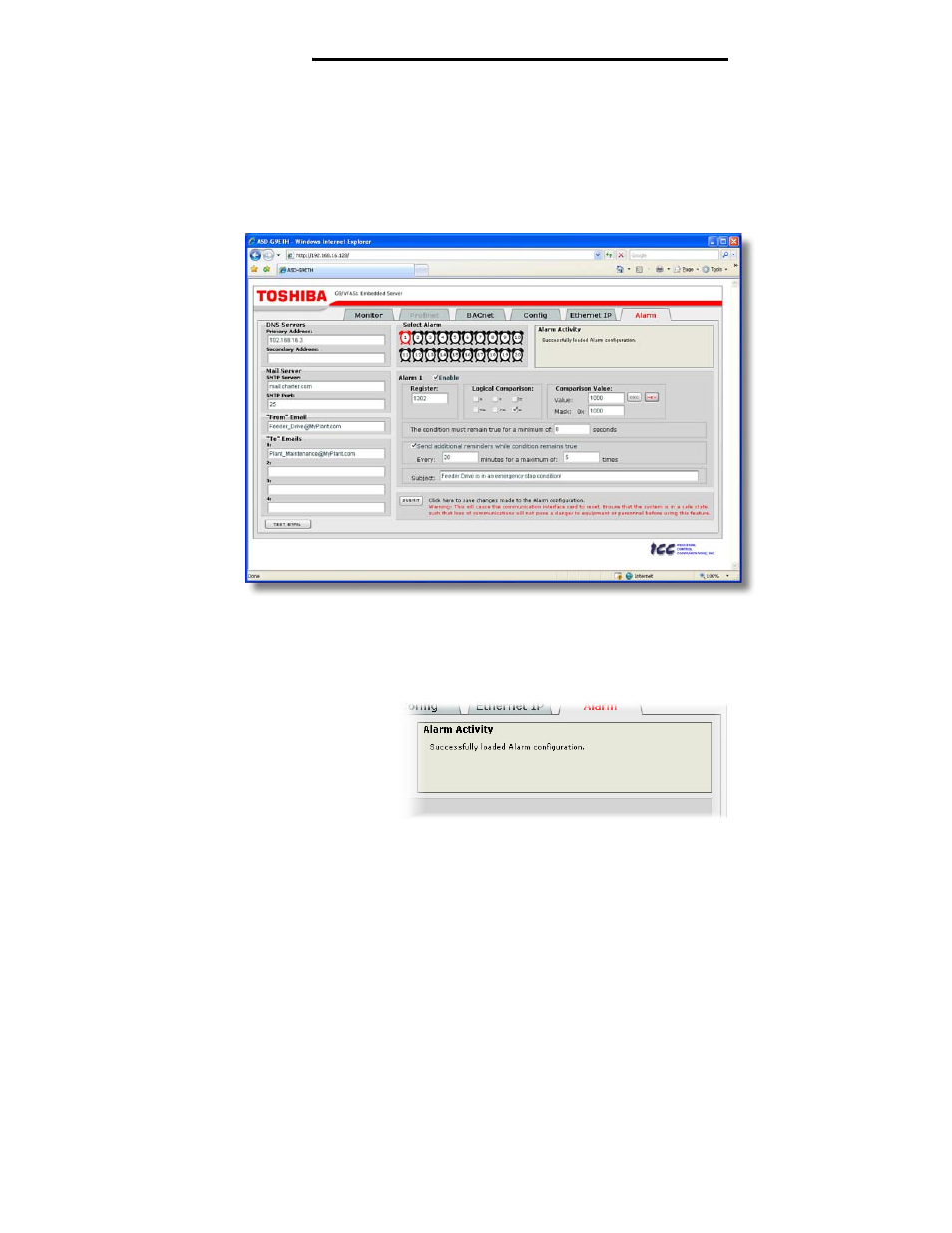

Figure 38: Alarm Tab
10.9.1 Information Window
Figure 39 shows the
Information Window,
which is located in the
upper-right hand
corner of the Alarm
tab. This window
displays various
informational
messages regarding
the status of the
Alarm configuration parameters (loading or submitting) and test emails.
Figure 39: Alarm Tab Information Window
