Toshiba ICC Multiprotocol Ethernet Interface ASD-G9ETH User Manual
Page 31
30
ICC
10.5 Profinet Tab
This section is only applicable when the Profinet firmware is loaded onto the
interface card. The Profinet tab provides for the configuration of the device on
a Profinet network. Refer to Figure 16.

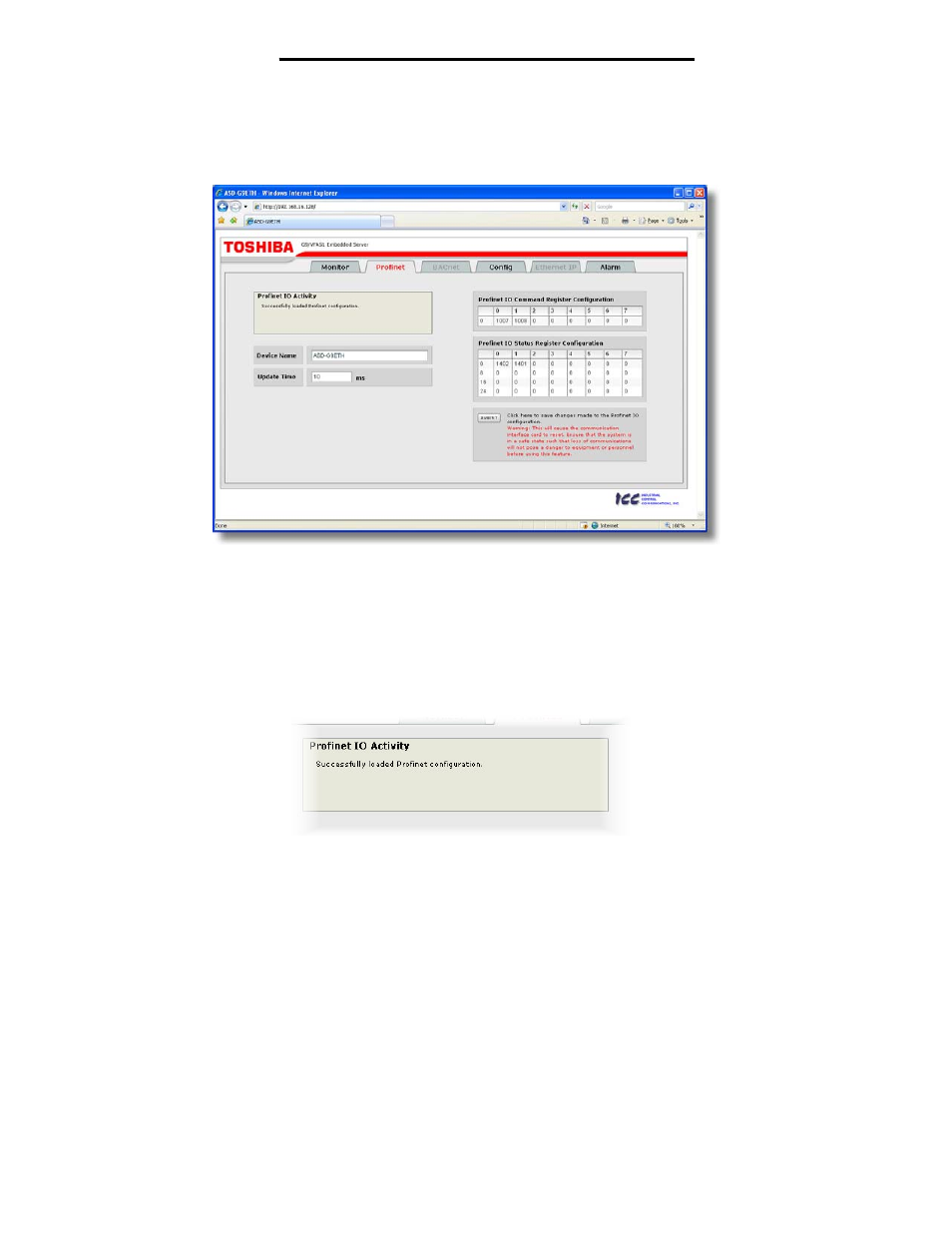

Figure 16: Profinet Tab
10.5.1 Information Window
Figure 17 shows the Information Window, which is located in the upper-left
hand corner of the Profinet tab. This window displays various informational
messages regarding the status of the Profinet configuration (loading or
submitting).
Figure 17: Profinet Tab Information Window
