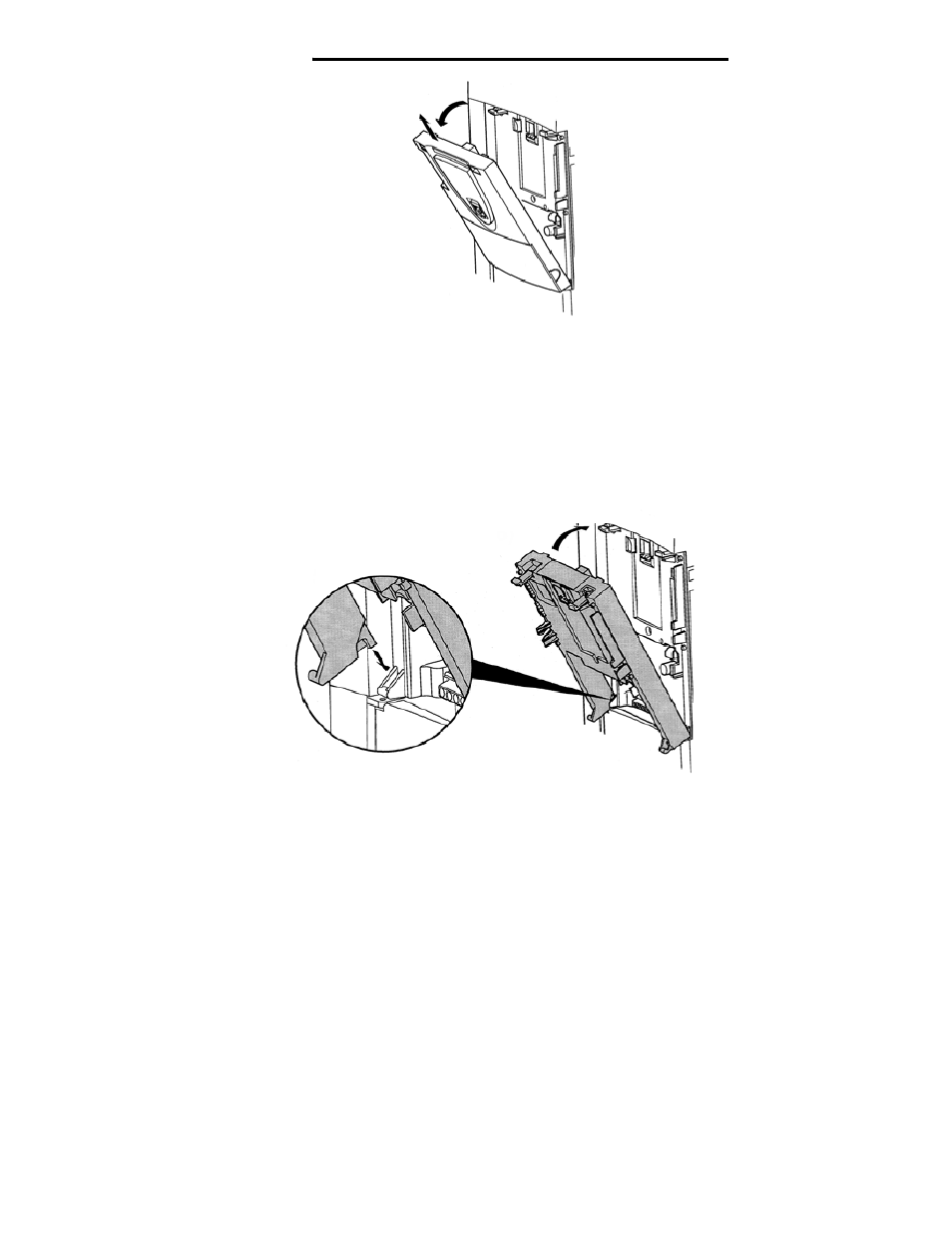

Figure 2: Removing the Drive's Front Cover
4. Install the interface card into the drive by inserting the tabs on the lower
legs of the interface housing into the corresponding slots on the drive’s
enclosure. Rotate the interface housing up and press it onto the drive
enclosure’s mounting tabs, depressing firmly until the housing snaps into
place (Figure 3). Double-check that the plastic bosses located on the left
and right side of the drive enclosure are properly inserted into the
corresponding recesses on the back of the interface housing, and that the
interface housing is overall secure and flush with the drive enclosure.
Figure 3: Installing the Interface Card
5. Reinstall the drive’s front cover by inserting the tabs on the bottom part of
the front cover into the corresponding slots on the interface housing.
Rotate the front cover up and press it onto the interface housing’s
