Chapter 2 Printer Installation
26

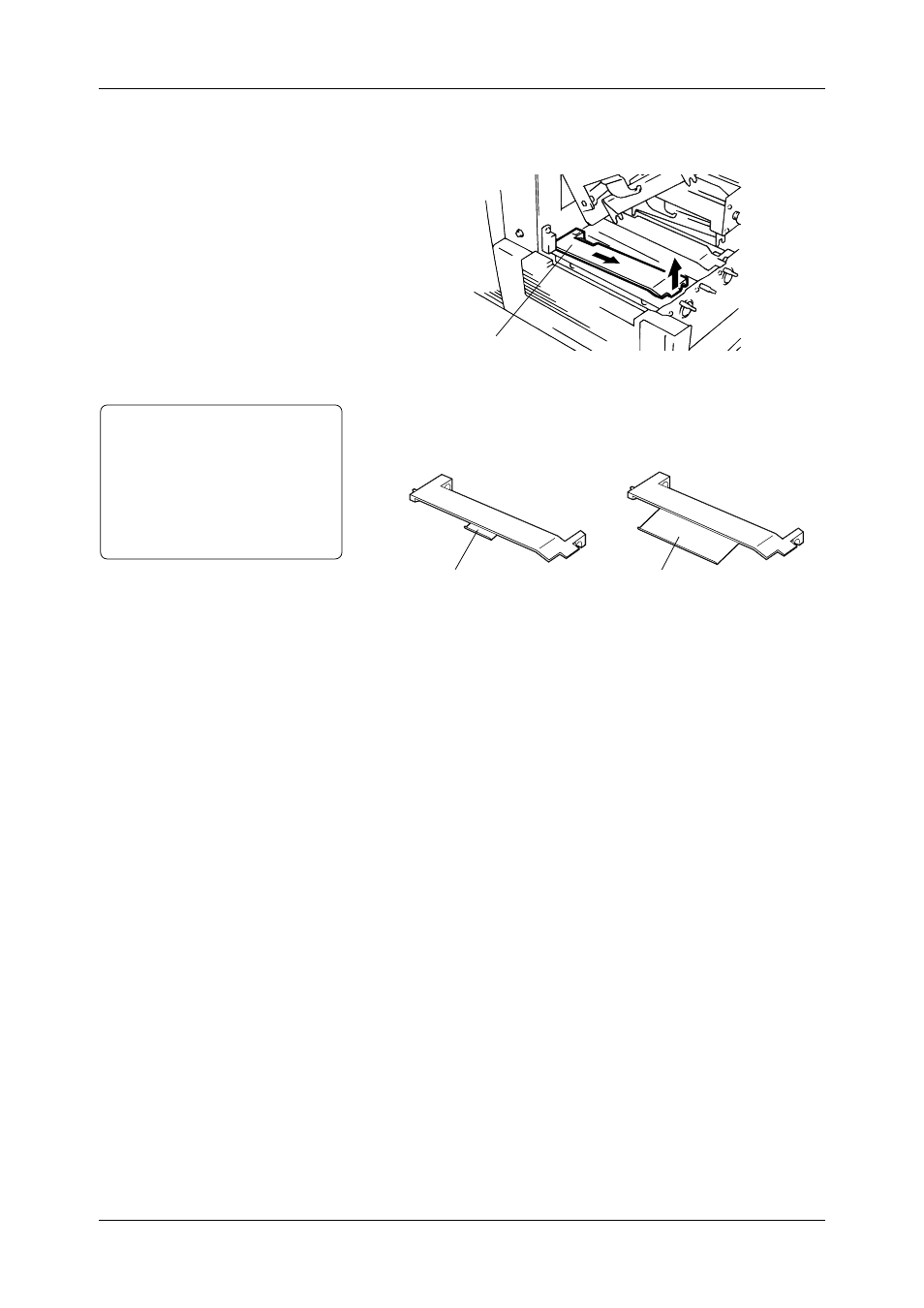

1 Remove the Guide Plates from the printer by lifting and pulling
them in the direction of the arrow.
2 Install the SP Ribbon Guides (A) and (B) in the reverse order of
removal of the Guide Plates.
Guide Plate
2.8.3 Installing the SP
Ribbon Guides
SP Ribbon Guide (A)
(for Yellow)
SP Ribbon Guide (B)
(for Cyan, Magenta and Black)
Plastic Plate (Small) Plastic Plate (Large)
Important!
•
The SP Ribbon Guide (A) with the
small plastic film is exclusively for
the yellow print head block.
•
The SP Ribbon Guides (B) with the
large plastic films are for the cyan,
magenta and black print head
blocks.
