Chapter 2 Printer Installation
13

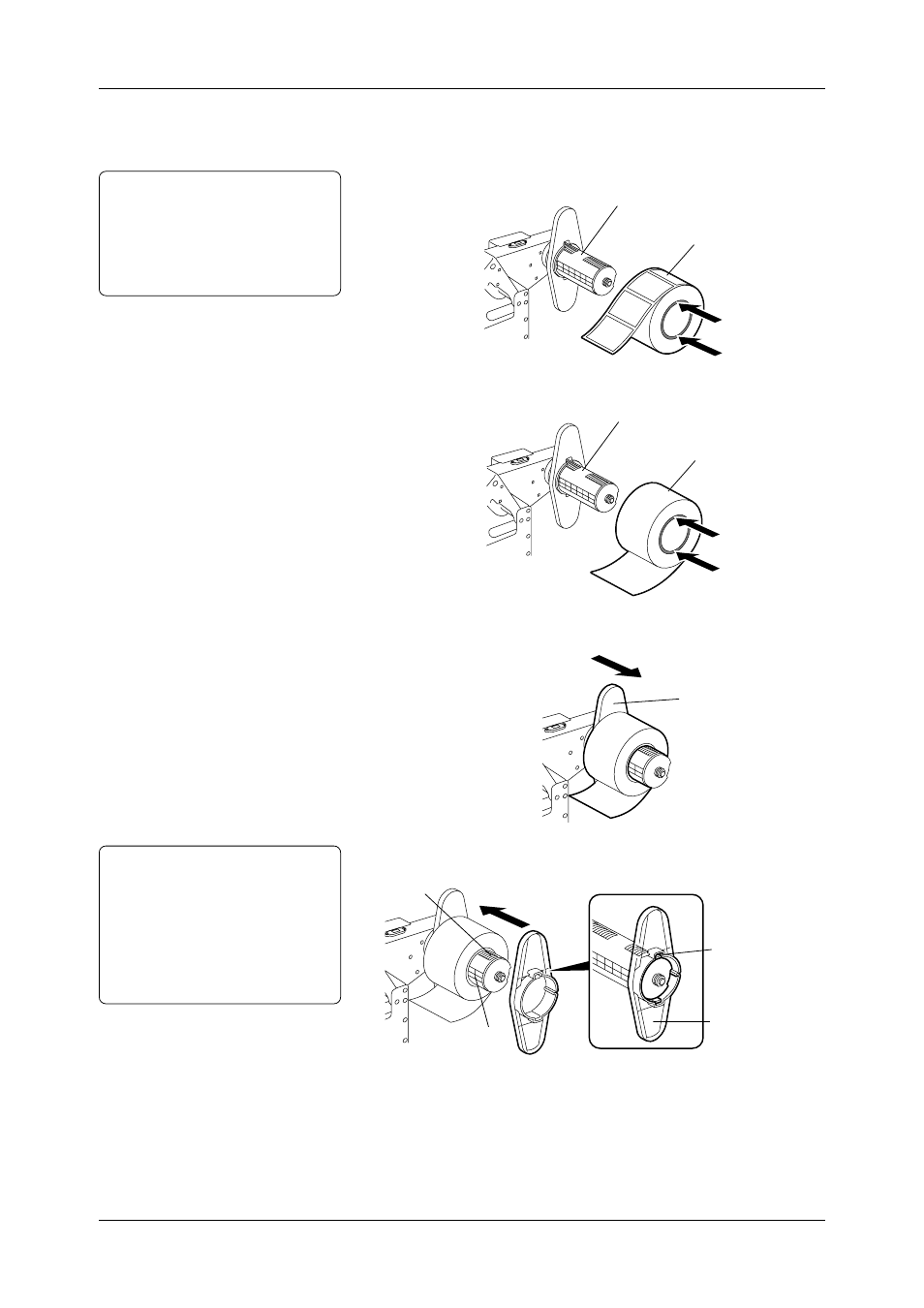

11 Based on width of the media measured in Step 10, push the media
into the Supply Roll Holder (inside), and place it with reference
to the marks on the Supply Shaft.
•
Loading a roll of labels
Note:
When inserting a roll of labels or
tags, push on the media core only.
Otherwise, core material drags
against the Supply Shaft causing
telescoping of the media supply roll.
Supply Shaft
Labels
•
Loading a roll of tags
Supply Shaft
Tags
12 Slide the Supply Roll Holder (inside) to the loaded media.
Supply Roll Holder
CAUTION!
To remove the Supply Roll
Holder (outside), turn it to
disengage the claw from the
notches. Otherwise, the claw or
the notches may be damaged.
See Section 2.5.1 for more
detail.
13 Slide the Supply Roll Holder (outside) to the loaded media.
Notches
Supply Shaft
Claw
Supply Roll Holder
(Outside)
2.5 Loading the
Media (Cont.)
