Chapter 6. Menu Options

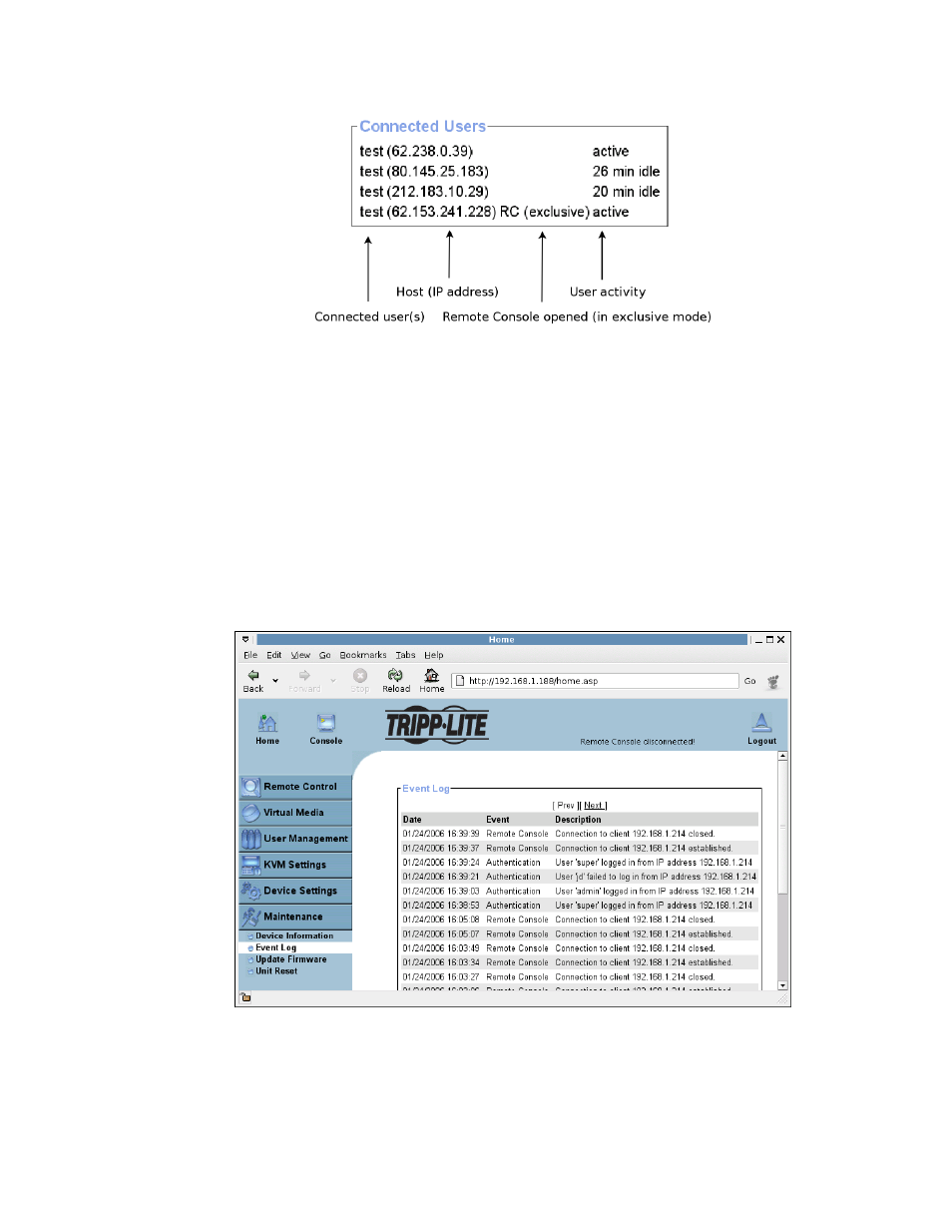

Figure 6-37. Connected Users
Figure 6-37 displays the B050-000 activity. From left to right the connected user(s), its
IP address (from which host the user comes from) and its activity status is displayed.
“RC” indicates that the Remote Console is open. If the Remote Console is opened in
“exclusive mode” the term “(exclusive)” is added. For more information about this
option see the Section called Remote Console Control Bar in Chapter 5. To display the
user activity the last column is used. It contains either the term “active” for an active
user or the according idle time for an inactive user.
Event Log
Figure 6-38. Event Log List
Figure 6-38 displays the Event Log list. It includes the events that are kept by the
B050-000 extended by the event date, a short event description and an IP address the
request was sent from.
