41DVN / DVSN Direct Vent Gas Fireplace

20009999

Ref.

41DVN / 41DVSN

A

41”

(1041 mm)

B

37”

(940 mm)

C

36”

(914 mm)

D

24¹⁄₂”

(622 mm)

E

7”

(178 mm)

F

6”

(152 mm)

G

1¹⁄₄”

(32 mm)

H

19¹⁄₂”

(495 mm)

I

5¹⁄₂”

(140 mm)

J

25”

(635 mm)

K

5/8”

(16 mm)

L

10³⁄₄”

(273 mm)

M

2”

(51 mm)

N

7⁵⁄₈”

(194 mm)

O

1⁷⁄₈”

(48 mm)

P

7”

(178 mm) Dia.

Q

4”

(102 mm) Dia.

Framing Dimensions

R

38¹⁄₂”

(978 mm)

S

41¹⁄₄”

(1048 mm)

T

19¹⁄₂”

(495 mm)

U

62¹⁄₄”

(1581 mm)

V

44”

(1118 mm)

W

31³⁄₄”

(807 mm)

Fireplace Dimensions (Installed as Top Vent)

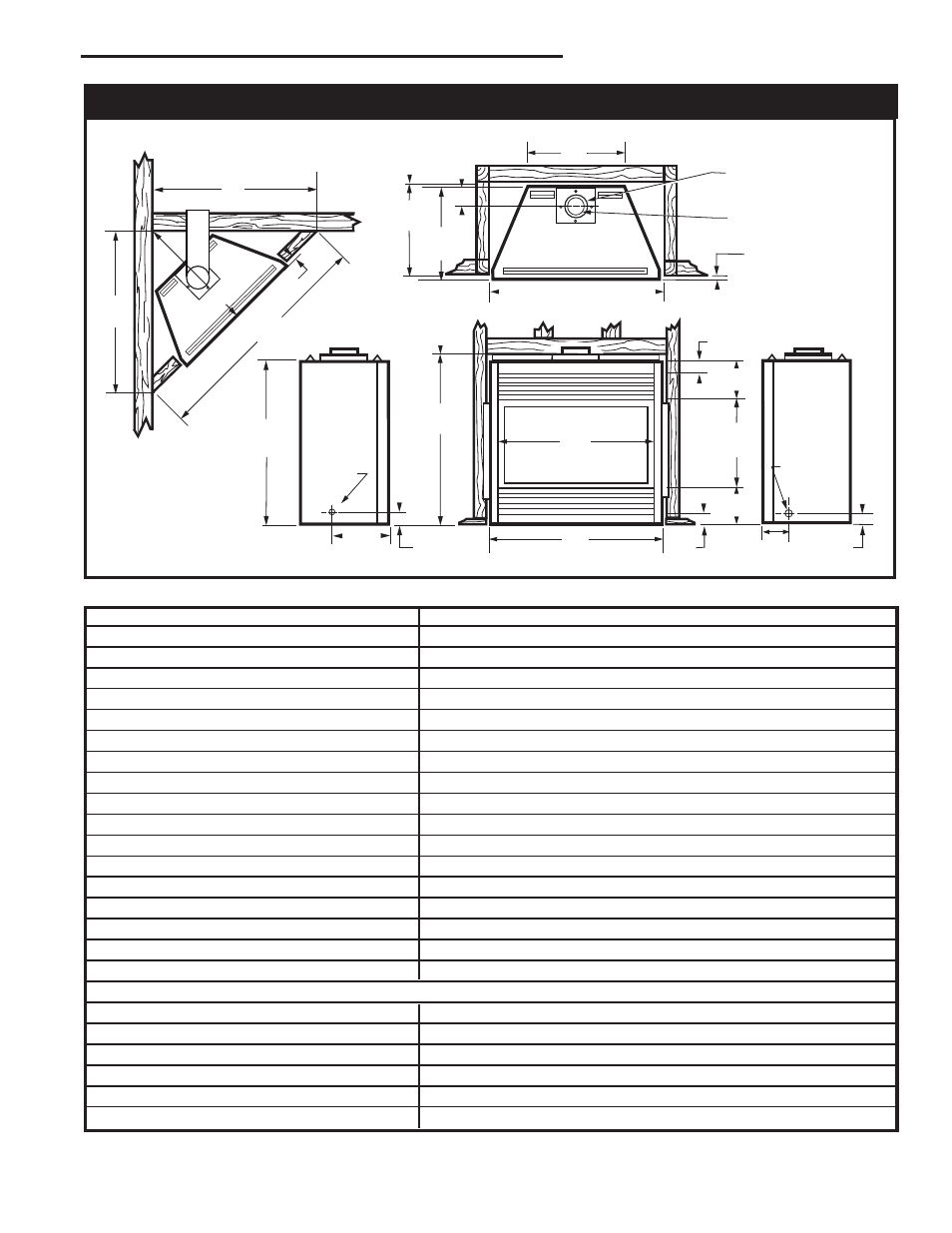

Fig. 1 Fireplace specifications and framing dimensions.

2261b

DV360

Specs - top vent

1/25/00 djt

S - Rough Opening Width

Rough
Opening
Height

Electrical
Access

Rough
Opening
Depth

Gas Line
Access

V

V

W

K

U

T

H

I

J

P

Q

K

O

N

F

D

E

G

G

A

C

R

M

L

B
