35

41DVN / DVSN Direct Vent Gas Fireplace

20009999

Convert Valve to LP

1. Using a Torx T20 bit or slotted screwdriver, remove

and discard the three (3) pressure regulator mount-
ing screws (A), pressure regulator tower (B) and
diaphragm (C). (Fig. 56)

2. Insure the rubber gasket (D) is properly positioned

and install the new HI/LO pressure regulator assem-
bly to the valve using the new screws (E) supplied
with the kit. Tighten screws securely. (Fig. 57)

3. Install the enclosed installation label (F) to the valve

body where it can be seen.

4. Apply gas to system and relight appliance according

to manufacturer’s instructions.

5. With the main burner “ON”, test the new pressure

regulator assembly for leaks using a soap solution.

6. Relight the main burner in both the HI and LO posi-

tions, and verify proper burner ignition and opera-
tion.

7. Check inlet and manifold pressures. Loosen screw

in test port 1/2 turn to measure pressure. Tighten
screw when measurement is complete.

T207

remove pilot hood

1/8/04 djt

Pilot

Hood

Allen

Wrench

Conversion

Orifice

T207

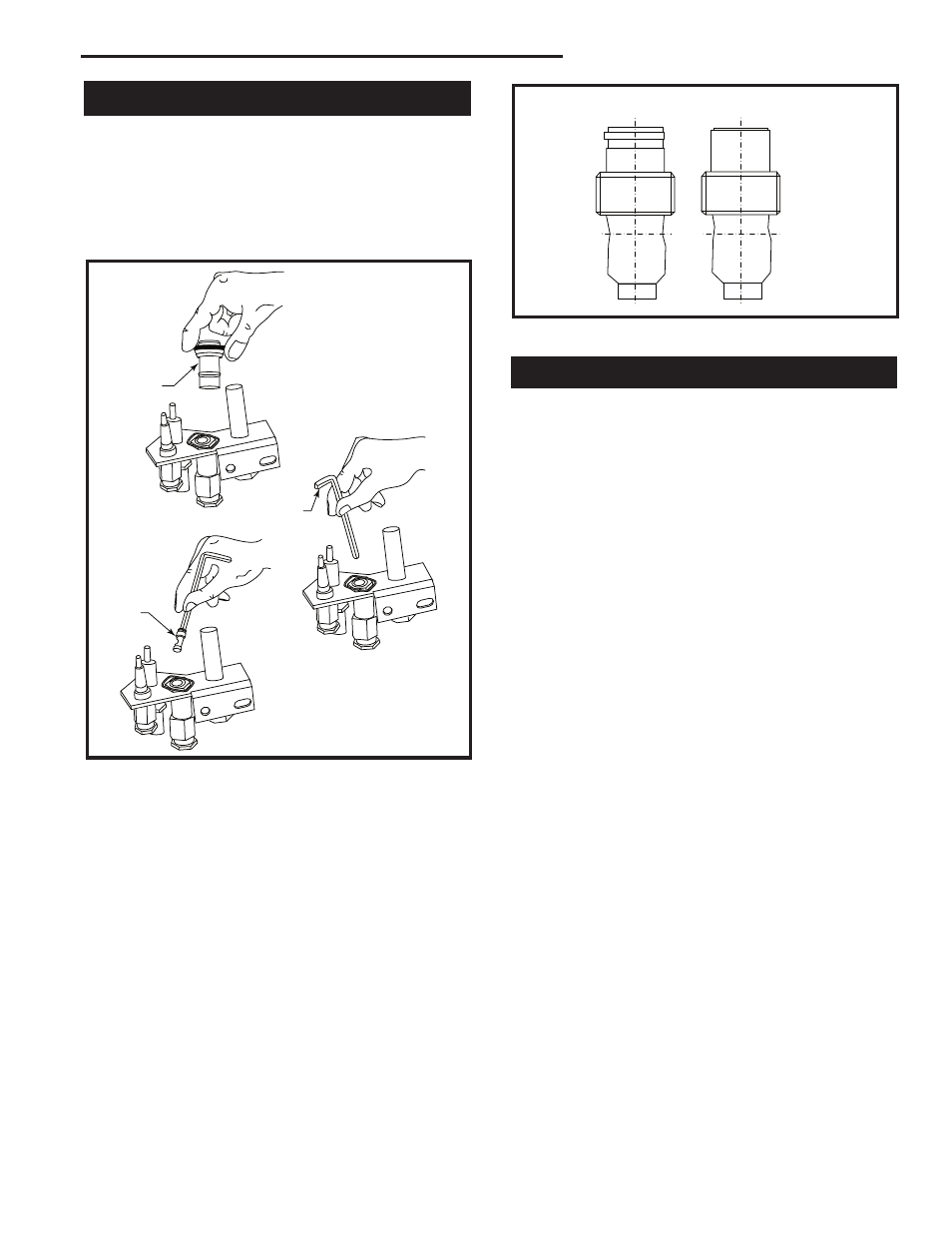

Fig. 54 Remove pilot hood and orifice. Insert conversion
orifice.

T208

conversion

injectors

1/8/04 djt

LPG

NG

T208

Fig. 55 Injectors.

Replace Pilot Orifice

1. The pilot hood is held in place by spring pressure.

Remove the hood by pulling it directly up from the
pilot bracket. (Fig. 54)

2. Insert a 3/32” (4mm) Allen wrench into the hexagonal

keyway of the injector (Fig. 54) and rotate it counter-
clockwise until it is free of the injector journal. (Fig.
54)

3. Verify that the new injector is proper for the applica-

tion. The injector size is stamped on the side of the
injector near the top. LPG injectors have a groove
machined around their circumference near the top,
while the NG injectors do not have a groove. (Fig.
55) Install the conversion orifice furnished with unit
(Conversion Kit).

4. Insert the Allen wrench into the end of the injector.

Insert the injector into injector journal, and rotate
the injector clockwise until a torque of 9 in/lbs. is
achieved. Replace the pilot hood by aligning the
tab on the base of the hood with the slot in the side
of the pilot journal. Push the hood down directly
onto the pilot bracket. (Fig. 54) The hood must sit
squarely on the bracket for proper operation. Check
to insure the hood is properly seated onto the pilot
bracket.
