Temco Tool 41DVN - Manual (Page 11)

11
41DVN / DVSN Direct Vent Gas Fireplace
20009999
FP1031
Outer Collar Adapter
Flue Pipe completed
2/16/00 djt
FP1031

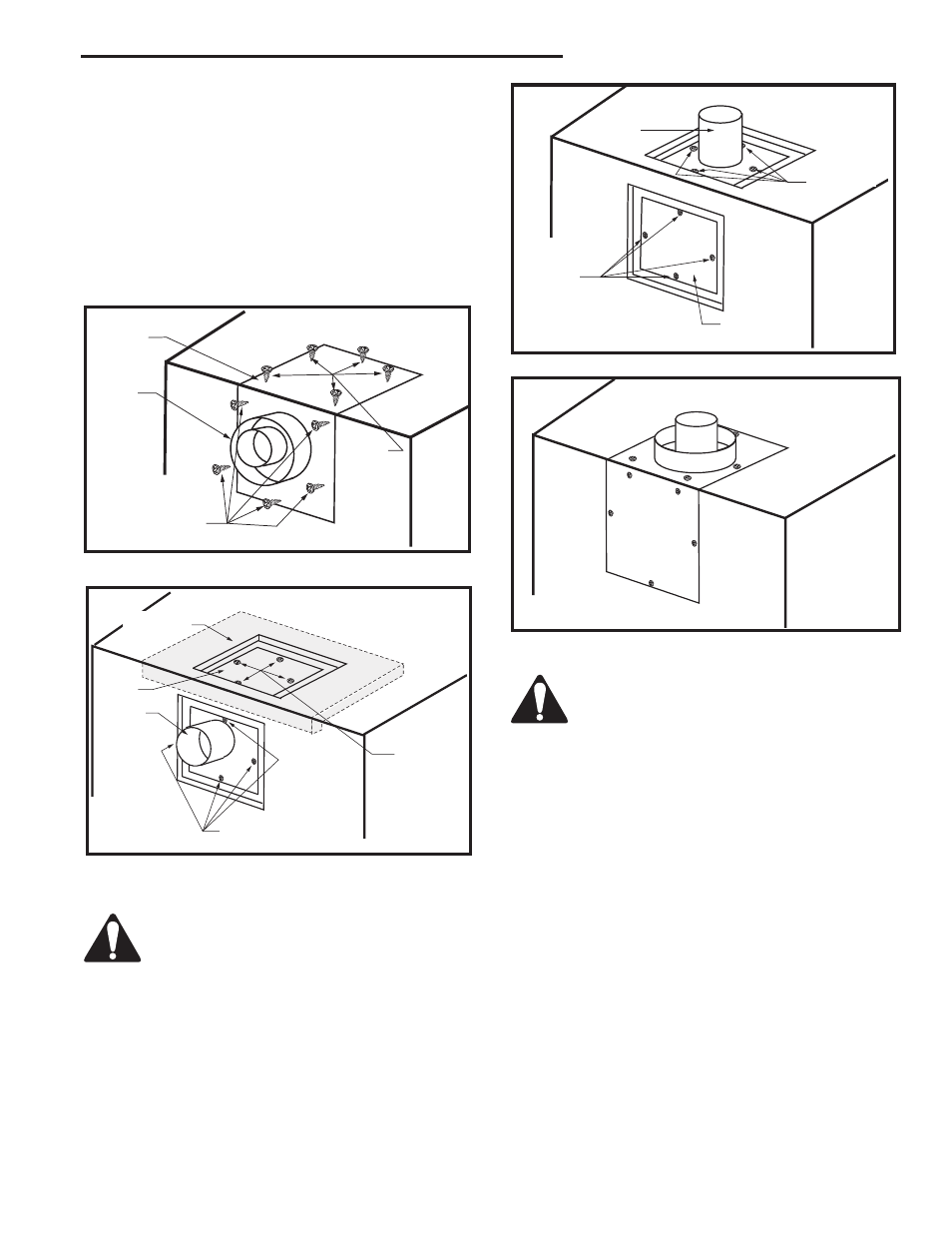

Fig. 13 Completed conversion.
After conversion to top vent configuration,
the 4” (102 mm) flue pipe should be con-
centric within the 7” (175 mm) outer collar.
DVT584-604
Outer Collar Adapter
Flue Pipe
3/11/99 djt
Flue Cover
Replace
Screws (4)
Flue Pipe
FP1028
Fig. 12 Replacing flue cover and flue pipe.
Replace
Screws (4)
FP1030
Outer Collar Adapter
Flue Pipe
2/16/00 djt
Flue
Pipe
Remove
Screws
(5)
Outer Collar
Adapter
Remove
Screws (5)
FP1030
Rear View
Fig. 10 Remove screws from outer collar adapter.
4. Remove the four (4) screws securing flue pipe to
back of unit. Remove flue pipe. (Fig. 11)
5. Secure flue cover to back of flue outlet. Be sure to
replace gasket. (Fig. 12)
6. Install flue pipe and gasket removed in step 4 to top
of unit with four (4) screws. Be sure to replace gas-
ket. (Fig. 12)
7. Secure outer collar adapter to unit with the round
collar on top, secure with 10 screws.
NOTE: Be sure not to damage any gasket material.
CAUTION: Remove insulation. Insulation extends
beyond opening in top of unit. Be sure to
remove all insulation before completing
conversion. Insulation measures 9¹⁄₄” x
22³⁄₄” (235 x 578 mm). If the unit is convert-
ed back to a rear vent, the insulation (Part
#20003129) must be replaced.
FP1027
DV360/580
Outer Collar Adapter
Flue Pipe
1/27/00 djt
Fig. 11 Remove flue cover and flue pipe.
Remove
Screws (4)
Remove Screws (4)
Flue
Cover
Flue
Pipe
FP1027
Insulation
