41DVN / DVSN Direct Vent Gas Fireplace
20009999
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
LP (Propane) 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Normal (HI) Normal (Low)
LP (Propane) 10.0” 6.3”
FC107
SIT820
valve conversion
10/03
A
B
C
OFF
PILO
T ON
FC107

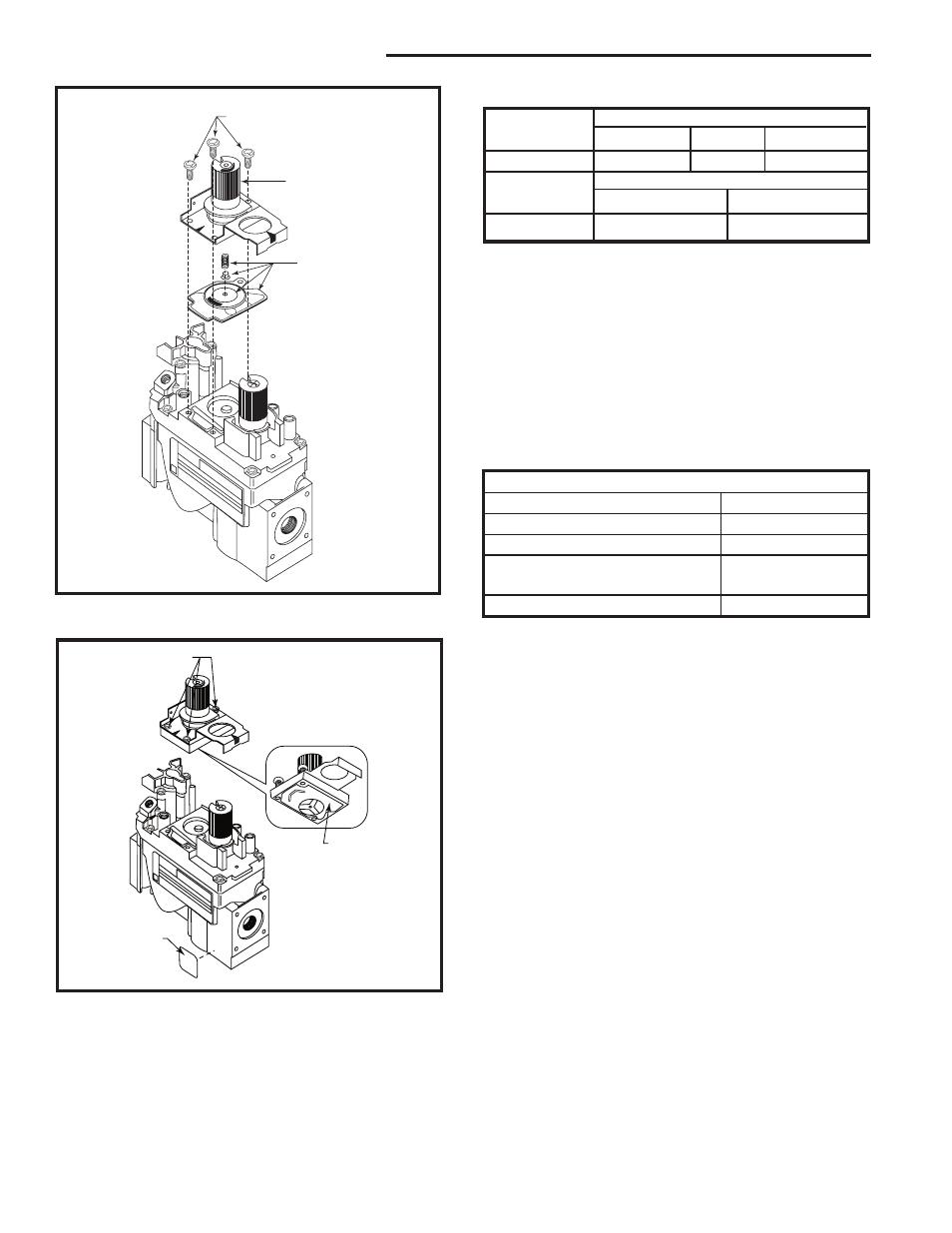

Fig. 56 Remove mounting screws, pressure regulator tower
and diaphragm assembly, and discard.
D
E
F
FC108
SIT
regulator
conversion
10/03
OFF PILOT
ON
FC108
Fig. 57 Replace regulator.
Manifold pressure can be measured by using a 5/16”
I.D. hose in the right hand side of the valve and con-
necting a manometer. Two test gauge ports are acces-
sible for test gauge connection:
1. Tap on left side of the valve will give inlet supply
pressure.
2. Tap on the right side of the valve will give manifold
pressure.
Min. Input Max. Input
41DVP 19,000 Btu/hr 27,000 Btu/hr
Pressure ranges are:
Parts Included w/ Conversion Kit 41DVCKP
Main Burner Orifice - LP 20000537
Label, Conversion 10002876
Pilot, Orifice - LP 76263
Conversion Pressure
Regulator Assembly - LP 74655
Label, SIT Valve --
