Chapter 2: Connecting your TV

TheaterNet

OUT

IN

AUDIO

IN

S-VIDEO

VIDEO 1

VIDEO 2

L

R

OUT 1

G-LINK

HDMI IN

DIGITAL

AUDIO OUT

ANT (75 )

ANT1

(CABLE)

ANT2

CableCARD™

COLOR

STREAM

HD-1

COLOR

STREAM

HD-2

VAR

AUDIO

R

L

TheaterNet

OUT 2

1

2

S-VIDEO

IEEE1394

EJECT

L/

MONO

AUDIO

VIDEO

R

L/
MONO

AUDIO

VIDEO

R

L/

MONO

AUDIO

VIDEO

R

P

B

P

R

Y

L

AUDIO

R

P

B

P

R

Y

L

AUDIO

R

TheaterNet

IN from ANT

VIDEO AUDIO

OUT to TV

CH 3

L

R

L

R

L

R

CH 4

IN

OUT

IN from ANT

VIDEO AUDIO

OUT to TV

CH 3

L

R

L

R

L

R

CH 4

IN

OUT

Connecting two VCRs

You will need:

two coaxial cables
two sets of standard A/V cables

• For better picture performance, if VCR 1 has S-video,

use an S-video cable (plus the audio cables) instead of
the standard video cable. However, do not connect both
types of video cable to VIDEO 1 (or VIDEO 2) at the same time
or the picture performance will be unacceptable.

• If VCR 1 has mono audio, connect L/MONO on the TV (VIDEO 1)

to the audio out jack on VCR 1 using the white audio cable only.

• Do not connect the same VCR to the output and input jacks on the

TV at the same time.

To view the antenna or Cable signal:
Turn OFF VCR 1. Select the ANT-1 video input source.*

To view VCR 1:
Turn ON VCR 1. Select the VIDEO 1 video input source.*

To dub or edit from VCR 1 to VCR 2:
Turn ON both VCRs. Set VCR 2 to the appropriate line
input (refer to your VCR owner’s manual for details).
Select the VIDEO 1 video input source.*

Note:

• If you have a Cable box, connect the Cable box and splitter to VCR1

as shown on page 14.

• The VIDEO OUT signal incorporates Macrovision

®

copyright

protection technology, which may prevent you from recording certain
copy-restricted video materials.**

The VIDEO OUT jack does not output the POP picture.

When the POP window is open, the AUDIO OUT jacks output the
sound of the active window (main or POP). For additional
information, see “Notes about recording” on page 73.

a

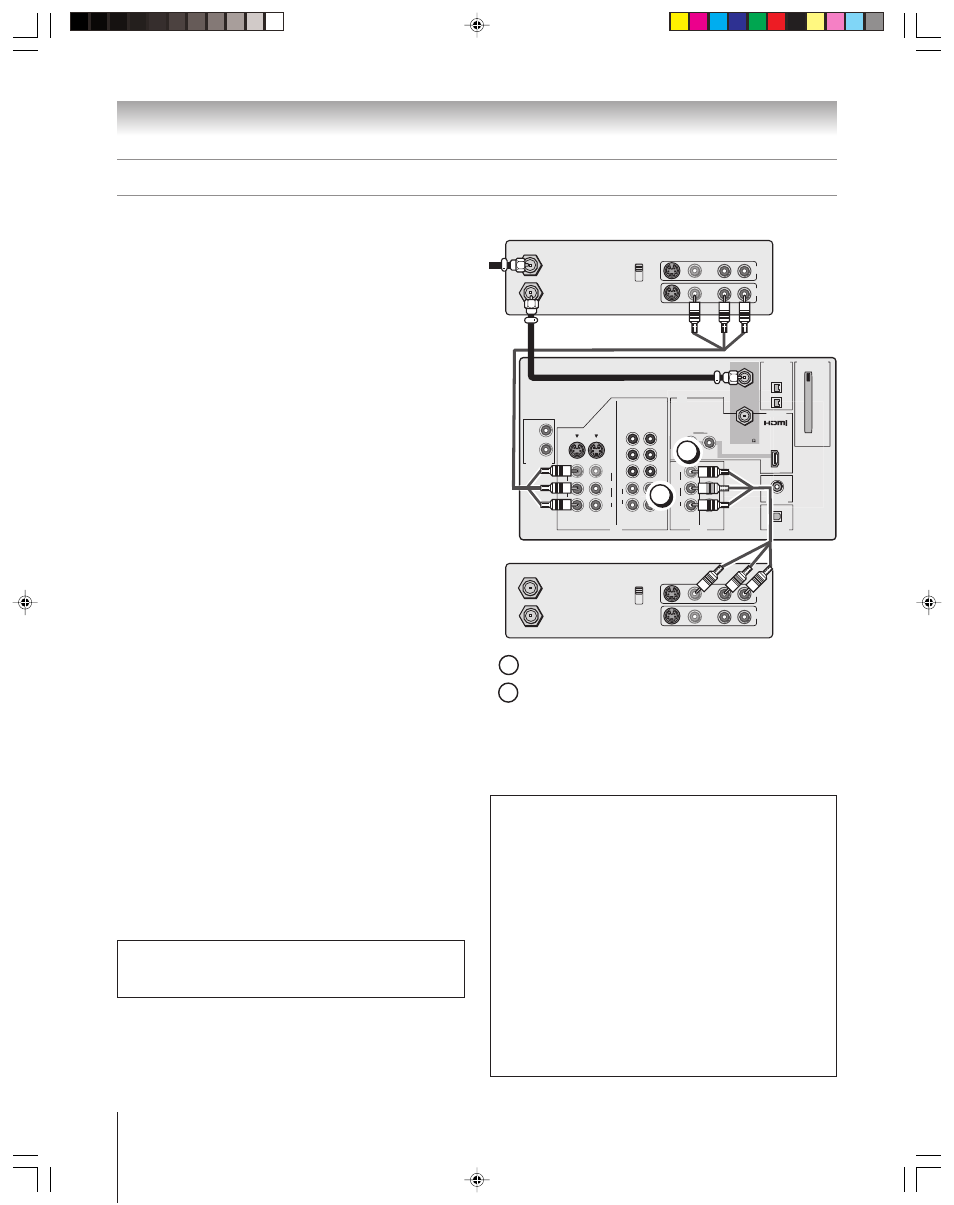

VCR1 (plays)

From

antenna

or Cable

TV

VCR2 (records)

a

The unauthorized recording, use, distribution, or revision of television
programs, videotapes, DVDs, and other materials is prohibited under the
Copyright Laws of the United States and other countries, and may subject
you to civil and criminal liability.

**This product incorporates copyright protection technology that is protected by
U.S. patents and other intellectual property rights. Use of this copyright protection
technology must be authorized by Macrovision and is intended for home and other
limited pay-per-view uses only, unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited. Macrovision is a registered
trademark of Macrovision Corporation.

b

b

To use the TV Guide On Screen recording features:

Note: If you connect your devices according to the
illustration above, you will record from the TV Guide
On Screen system to the VCR labeled “VCR2.”

1. Connect the G-LINK cable according to the instructions

on page 25.

2. Make sure the VCR2 is connected to the A/V OUT jacks

on the TV (see illustration).

3. Set the VCR to the appropriate line input (refer to your

VCR owner’s manual for details), and then turn OFF the
VCR.

4. See Chapter 5 for details on setting up the TV Guide

On Screen system.

5. See Chapter 7 for details on using the TV Guide

On Screen system.

Note: The VIDEO/AUDIO OUT jacks output the signals from
the ANT 1, ANT 2, VIDEO 1, VIDEO 2, or VIDEO 3 jacks when
the appropriate input mode is selected.
