Chapter 2: Connecting your TV
18

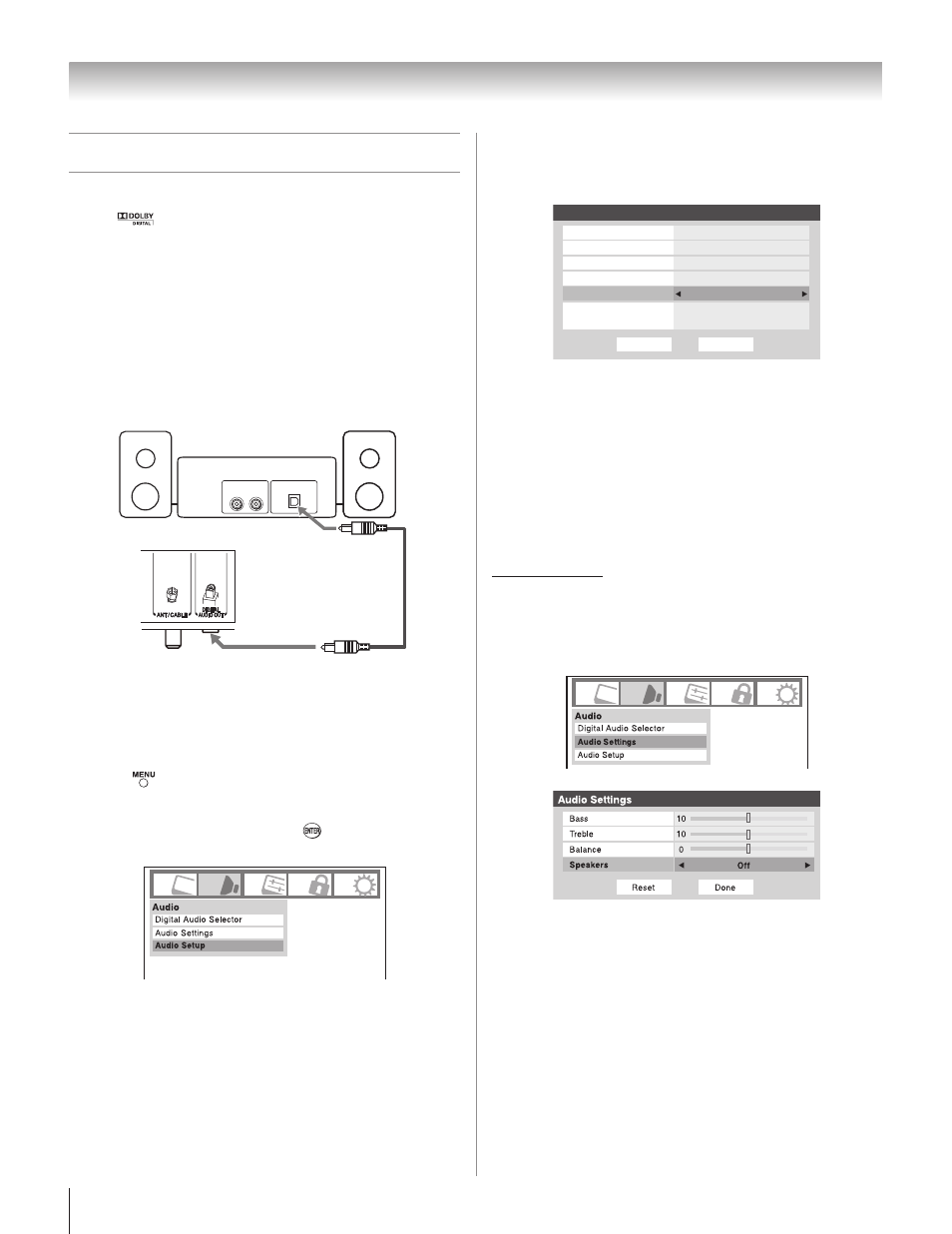

Connecting a digital audio system
The TV’s DIGITAL AUDIO OUT terminal outputs a Dolby ® *
Digital or 2-channel down-mixed PCM (pulse-code
modulation) signal for use with an external Dolby ® Digital
decoder or other external audio system with optical audio
input.
You will need:
optical audio cable (Use an optical audio cable that has
the larger “TosLink” connector and not the smaller “mini-
optical” connector.)
LINE IN Optical
Audio IN L R
To control the audio:
Turn on the TV and the digital audio device.
Press on the TV’s remote control and open the Audio
menu .
Highlight Audio Setup and press .
•
1�
�
�
In the Optical Output Format field, select either Dolby
Digital or PCM, depending on your device (“Selecting
the optical audio output format” on page 45).
Done
Audio Setup
Language
Reset
o e r e t S S T M
English
Dolby Digital Optical Output Format
HDMI 1 Audio
o N o i d u A C P
Auto
Dynamic Range Control
Compressed
Dolby Digital
Note:
Some audio systems may not be compatible with Dolby
Digital bitstream signals. Older audio systems that are
not compatible with standard optical out signals may
not work properly, creating a high noise level that may
damage speakers or headphones. THIS DAMAGE IS NOT
COVERED BY YOUR WARRANTY.
The DIGITAL AUDIO OUT terminal may not output some
digital audio sources because of copy restrictions.
Manufactured under license from Dolby Laboratories. Dolby, and
the double-D symbol are trademarks of Dolby Laboratories.
Menu item of Speakers can turn to OFF to mute the TV’s
built in speakers.
�
•
•
*
•
Dolby Digital decoder or
other digital audio system
TV back panel
