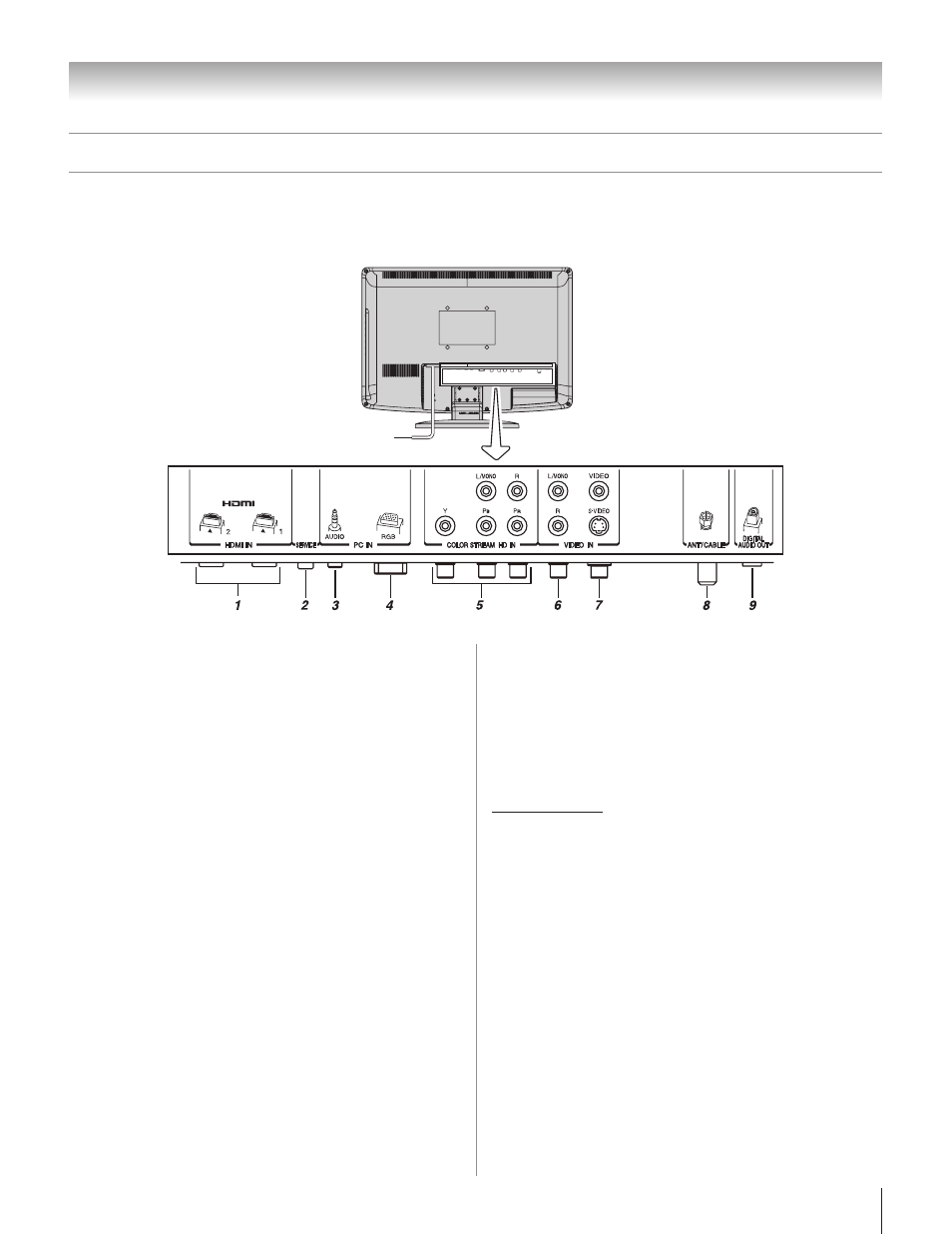

TV back panel connections
For an explanation of cable types and connections, see pages 12–19.
HDMI™ IN — High-Definition Multimedia Interface input
receives digital audio and uncompressed digital video
from an HDMI device or uncompressed digital video
from a DVI device. Also see item 3. HDMI connection is
necessary to receive 1080i signals.
Service port — For service use only. Used for updating
the television’s firmware.
PC/HDMI-1 (AUDIO) IN — PC audio input terminals are
shared with HDMI-1 analog audio input terminals, and
their use can be configured in the
Audio Setup menu (
page 51).
PC IN — For use when connecting a personal computer.
ColorStream
® HD — The ColorStream ® high-definition
component video inputs (with standard stereo audio
inputs) for connecting devices with component video
output, such as a Toshiba DVD player with ColorStream
® .
Note: Component video cables carry only video
information; separate audio cables are required for a
complete connection.
VIDEO IN — Standard (composite) video and standard
audio inputs plus optional S-video inputs for connecting
devices with composite video or S-video output.
Note: Standard (composite) video and S-video cables
carry only video information; separate audio cables are
required for a complete connection.
1�
�
�
�
�
�
ANT/CABLE — Antenna input that supports analog
(NTSC) and digital (ATSC) off-air antenna signals and
analog and digital Cable TV (QAM) signals.
Digital Audio OUT — Optical audio output in Dolby
Digital or PCM (pulse-code modulation) format for
connecting an external Dolby Digital decoder, amplifier,
A/V receiver, or home theater system with optical audio
input.
HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
�
8�
TV back
Power cord
