Chapter 2: Connecting your TV
1

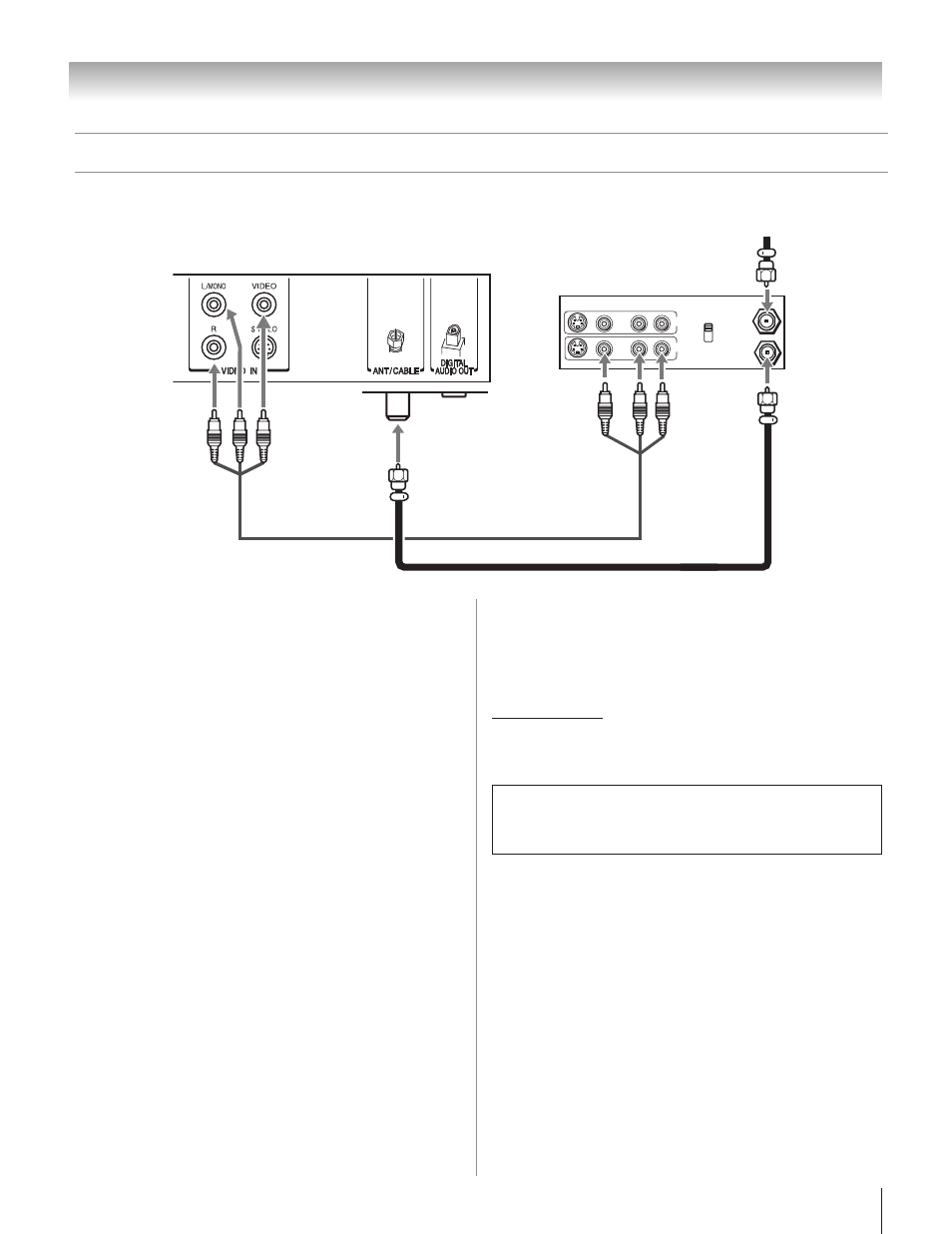

Connecting a VCR and antenna or Cable TV (no Cable box)
IN from ANT
VIDEO AUDIO
OUT to TV
L R
R L
OUT
IN
CH 3
CH 4
From Cable TV or antenna
You will need:
coaxial cables
standard A/V cables
For better picture performance, if your VCR has S-video,
use an S-video cable (plus the audio cables) instead of
the standard video cable. Do not connect both types of
video cable to VIDEO IN at the same time or the picture
performance will be unacceptable.
If you have a mono VCR, connect L/MONO on the TV
to your VCR’s audio out terminal using the white audio
cable only.
•
•
−
−
To view the antenna or Cable signal:
Select the ANT/CABLE video input source on the TV.*
To view the VCR:
Turn ON the VCR. Select the VIDEO video input source on
the TV.*
To select the video input source, press INPUT on the remote control
( page 21). To program the TV remote control to operate other
devices, see Chapter 3.
The unauthorized recording, use, distribution, or revision of television
programs, videotapes, DVDs, and other materials is prohibited under the
Copyright Laws of the United States and other countries, and may subject
you to civil and criminal liability.
*
