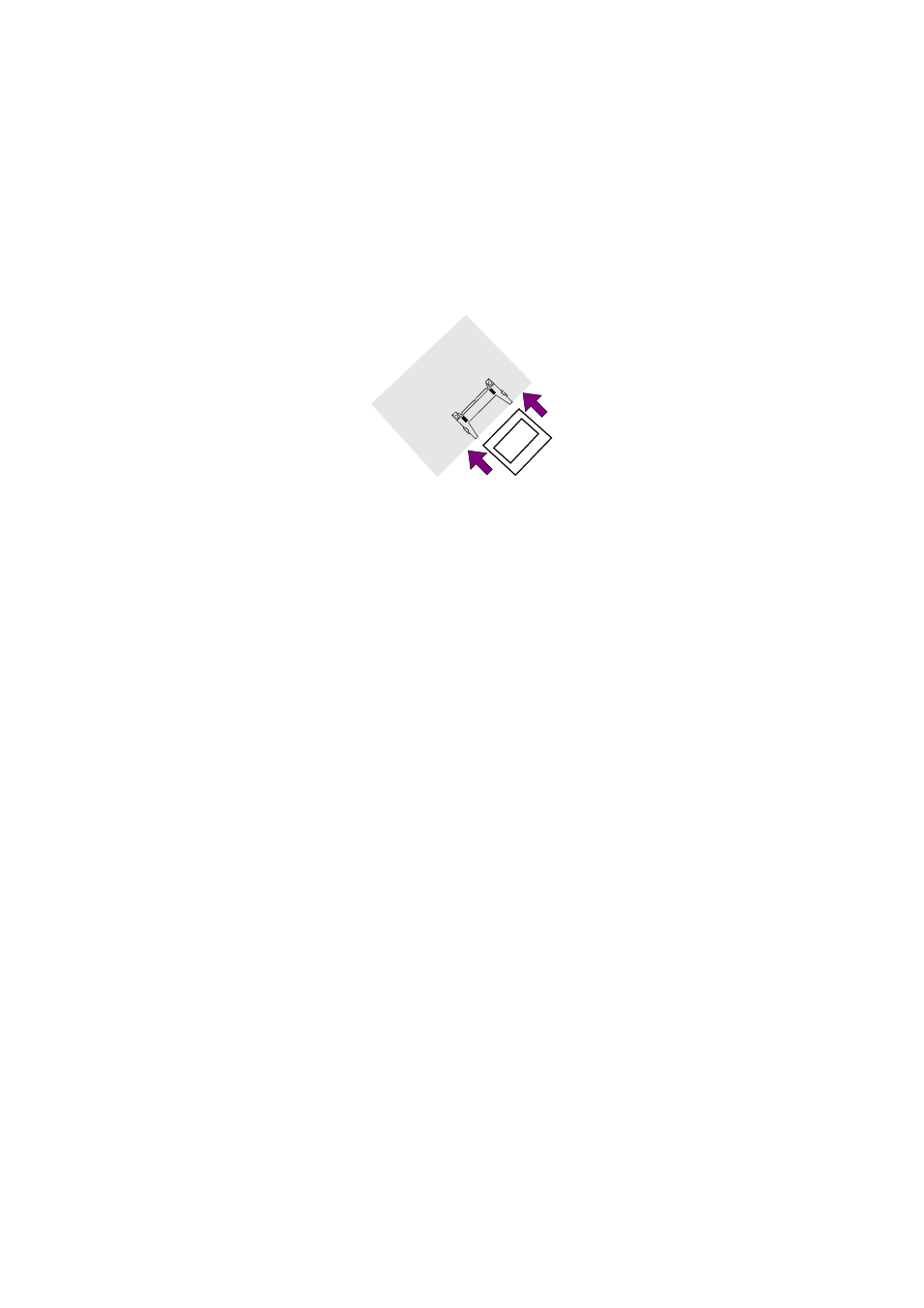

Inserting a CompactFlash  card into the adapter is not a difficult task.
The socket and card are both keyed and there is only one direction for
the card to be completely inserted. Refer to the diagram on the
following page for the traditional way of inserting the card.
Co
mpact
Flash
TM
CE
M ad e in J ap an /
Fa br iq ue A u Ja po n
CF
R
ea
r S
id e
PC
B
So
ld
er
Si
de
V
ie
w
3.25 PC/104 Connectors
The PC/104 expansion bus offers provisions to connect all types of
PC/104 modules. With the PC/104 bus being known as the new
generation of industrial embedded 16bit PC standard bus, thousands
of PC/104 modules from multiple venders can be easily installed
onboard. The detailed pin assignment of the PC/104 expansion bus
connectors PC1 and PC2 are listed in the following tables:
NOTE： The PC/104 connector allows direct plugging or stack-through
piling of PC/104 modules without requiring the PC/104 mounting
kit.
