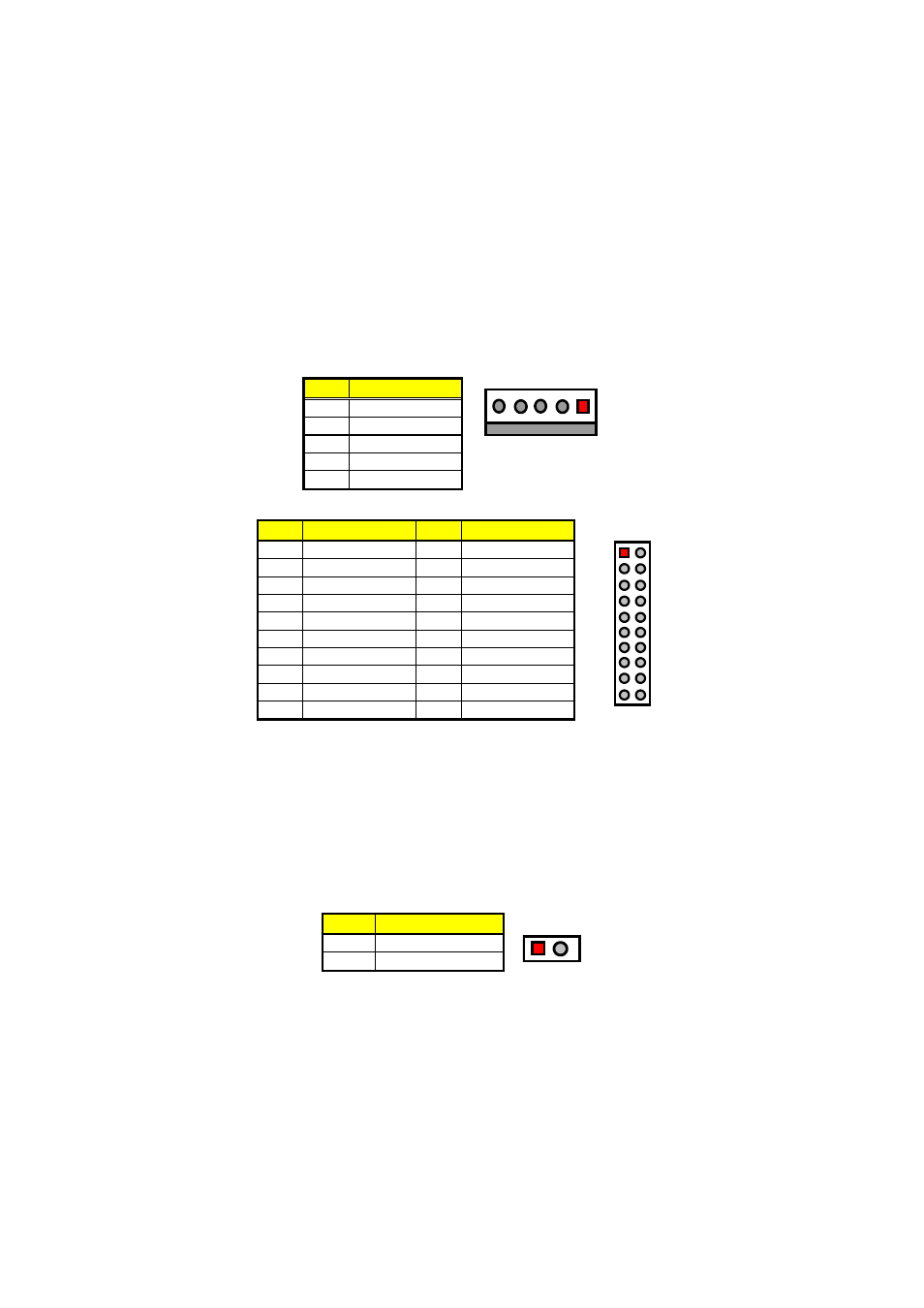

3.16 Power and Fan Connectors
The HS-6038 provides one 5-pin ATX Power On connector at CN10,
one 2-pin ATX Power ON switch at CN6, and a single 3-pin FAN out
connector at CN8.
CN10: 5-pin ATX Power In Connector
PIN Description
1 GND
2 PS_ON
3 VCC13
4 5Vsb
5 VCC
1
GN
D
5
PS_ON VCC
13
5Vsb VC
C
ATX1: 20-pin ATX Power In Connector
PIN Description PIN Description
1 +3.3V 11 +3.3V
2 +3.3V 12 -12V
3 GND 13 GND
4 +5V 14 PS_ON
5 GND 15 GND
6 +5V 16 GND
7 GND 17 GND
8 PWORK 18 -5V
9 +5Vsb 19 +5V
10 +12V 20 +5V
1 11
10 20
+3.3V
-12V
GND
PS_ON
+3.3V
+3.3V
GND
+5V
GND
GND
GND
-5V
+5V
+5V
GND
+5V
GND
PWORK
+5Vsb
+12V
If the system is not using the ATX power function, you may SHORT
pins 4 and 5 of CN10 so that the ATX power supply can be used as an
AT power unit. If not, CN2 must be connected to a corresponding
connector on a PICMG Bus backplane in order to use the ATX Power
function.
When using the ATX Power, CN6 is used to turn on the power. In this
case, a BOSER PICMG Bus backplane must complement the HS-6038
for proper operation.
CN6: 2-pin ATX Power On Switch
PIN Description
1 5VSBY
2 PANSWIN
1 2
