Page 12: Distributed i/o, ftb splitter boxes

12
Selection guide
0
IP 67 monobloc I/O splitter boxes
for fieldbuses
0

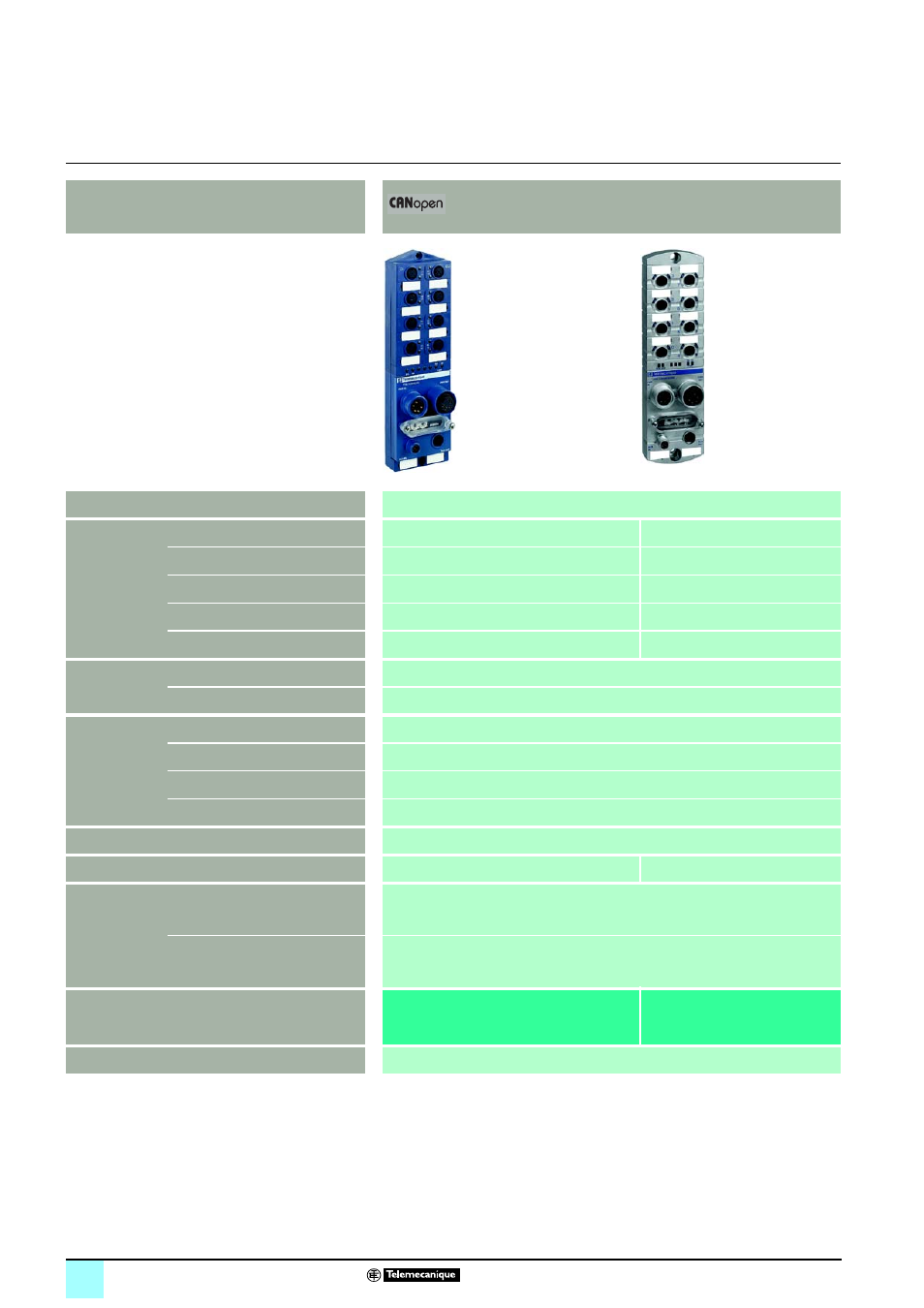

Advantys
™
Distributed I/O, FTB splitter boxes
Applications
Industrial fieldbus type
Degree of protection
IP 67
Modularity
(number of
channels)
8 I + 8 O (8 O + 8 diagnostic inputs)
p
–
12 I + 4 O (4 I + 4 O + 8 diagnostic inputs)
p
–
16 I (8 I + 8 diagnostic inputs)
p
p
16 I/O (8 I/O+ 8 diagnostic I/O)
p
p
8 I + 8 I/O (8 I + 8 diagnostic I/O)
–
p
Inputs
Voltage
c 24 V
Conformity to IEC 1131-2
Type 2
Outputs
Voltage
c 24 V
Type
Transistor
Current/output
1.6 A
Current/splitter box
8 A
Connection
M12 connectors (5-pin)
Housing type
Plastic
Metal
Diagnostics
Per splitter box
Bus and I/O undervoltage
I/O short-circuit
I/O supply
Per channel
I/O short-circuit
Wire breakage fault
Faulty sensors/actuators
Module type
FTB 1CNpppP0
FTB 1CNpppM0
Page
28
28
